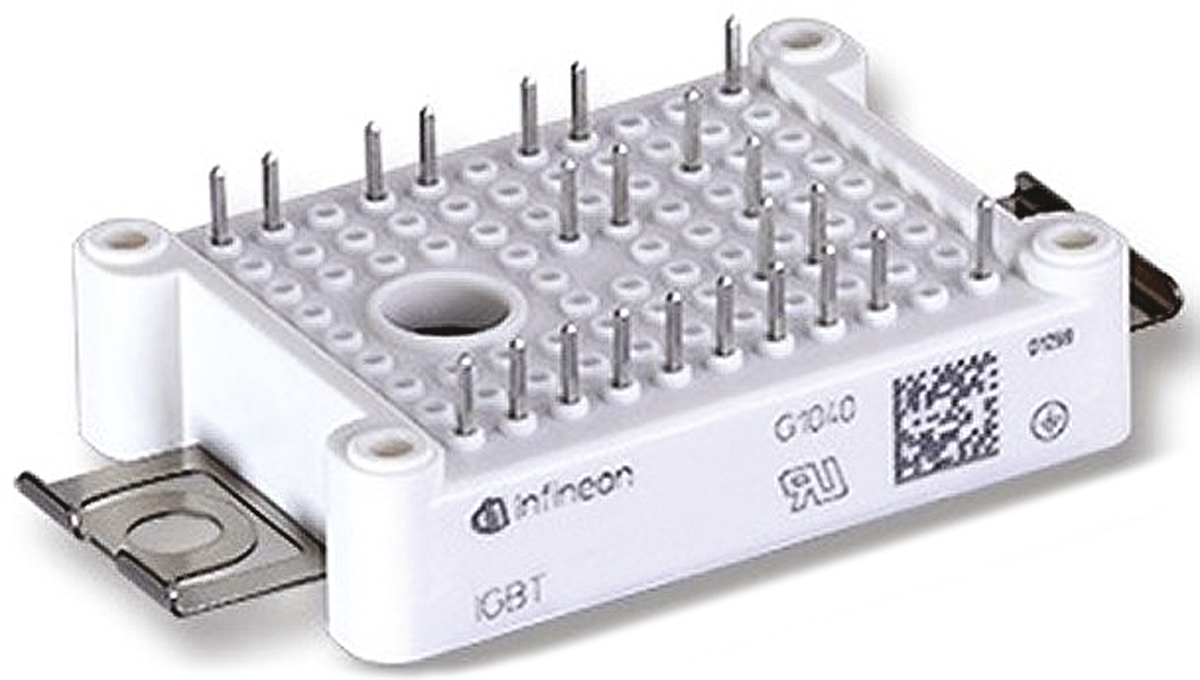

Infineon FS30R06W1E3B11BOMA1, EASY1B Common Collector IGBT Module, 45 A max, 600 V, PCB Mount

FS30R06W1E3B11BOMA1 Infineon , EASY1B Common Collector IGBT Module, 45 A max, 600 V, PCB Mount
FS30R06W1E3B11BOMA1 Infineon , EASY1B Common Collector IGBT Module, 45 A max, 600 V, PCB Mount
Infineon

Product Information

Automotive Standard:
No
Maximum Power Dissipation Pd:
150W
Product Type:
IGBT Module
Maximum Gate Emitter Voltage VGEO:
20 V
Maximum Collector Emitter Voltage Vceo:
600V
Maximum Collector Emitter Saturation Voltage VceSAT:
2V
Height:
12mm
Width:
33.8 mm
Length:
48mm
Package Type:
EASY1B
Minimum Operating Temperature:
-40°C
Maximum Continuous Collector Current Ic:
45A
Standards/Approvals:
No
Switching Speed:
1MHz
Channel Type:
Type N
Maximum Operating Temperature:
150°C
Pin Count:
22
Mount Type:
Clamp
RoHs Compliant
Checking for live stock

This is EASY1B Common Collector IGBT Module 45 A max 600 V PCB Mount manufactured by Infineon. The manufacturer part number is FS30R06W1E3B11BOMA1. The product complies with automotive standard - no. igbt module is a versatile product designed to provide user-defined applications. In addition, the height is 12mm. Furthermore, the product is 33.8 mm wide. Its accurate length is 48mm. The package is a sort of easy1b. Whereas, the minimum operating temperature of the product is -40°c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of 150°c. It contains 22 pins. It has a clamp type mount .

pdf icon
FS30R06W1E3_B11, IGBT-Module(Technical Reference)
pdf icon
Explanation Guide to Infineon's Bxx Suffixes(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
