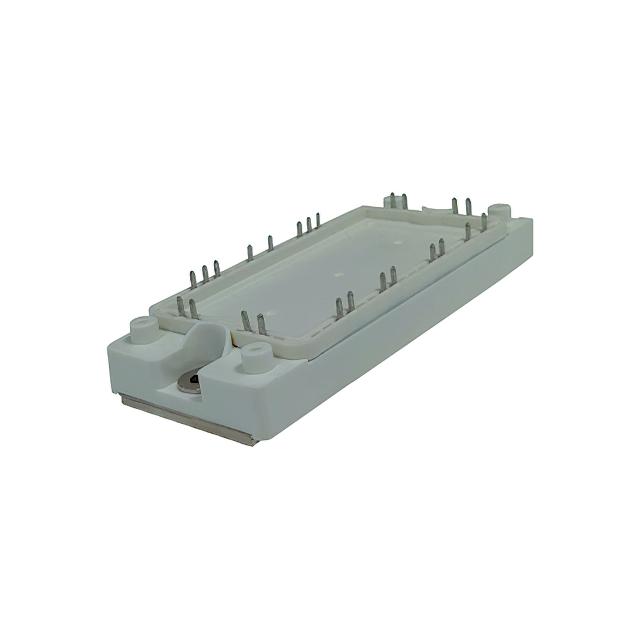

Vishay General Semiconductor - Diodes Division VS-GT75YF120UT

VS-GT75YF120UT Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division

Product Information

Current - Collector (Ic) (Max):
118 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Vce(on) (Max) @ Vge, Ic:
2.6V @ 15V, 75A
Voltage - Collector Emitter Breakdown (Max):
1200 V
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
Module
Input:
Standard
NTC Thermistor:
Yes
REACH Status:
REACH Unaffected
Configuration:
Full Bridge
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
52 Weeks
IGBT Type:
Trench Field Stop
Current - Collector Cutoff (Max):
100 µA
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
-
Power - Max:
431 W
ECCN:
EAR99
Checking for live stock

This is manufactured by Vishay General Semiconductor - Diodes Division. The manufacturer part number is VS-GT75YF120UT. The maximum collector current includes 118 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Features 2.6v @ 15v, 75a. The maximum collector emitter breakdown voltage of the product is 1200 v. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in module. Its input values include standard. NTC Thermistor - yes. In addition, it is reach unaffected. The product is available in full bridge configuration. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 52 weeks standard lead time. Features an IGBT trench field stop type. In addition, 100 µa is the maximum current at collector cutoff. The product is available in chassis mount configuration. The maximum power of the product is 431 w. The product is designated with the ear99 code number.

pdf icon
VS-GT75YF120UT(Datasheets)
pdf icon
VS-GT Design 21/Nov/2023(PCN Design/Specification)
pdf icon
New lead-free aluminum alloy snap ring 21/Nov/2023(PCN Design/Specification)
