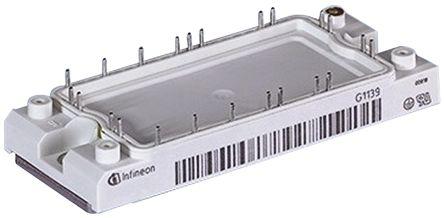

Infineon FS100R07N2E4BOSA1, ECONO2 3 Phase Bridge IGBT Module, 100 A max, 650 V, PCB Mount

Enrgtech Part No: ET16792834
|
Manufacturer Part No:
FS100R07N2E4BOSA1
|
Manufacturer: Infineon

FS100R07N2E4BOSA1 Infineon , ECONO2 3 Phase Bridge IGBT Module, 100 A max, 650 V, PCB Mount

(0)

Product Information

Configuration:

3 Phase Bridge

Dimensions:

107.5 x 45 x 17mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

335 W

Maximum Continuous Collector Current:

100 A

Maximum Collector Emitter Voltage:

650 V

Height:

17mm

Width:

45mm

Length:

107.5mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

ECONO2

Minimum Operating Temperature:

-40 °C

Checking for live stock

This is ECONO2 3 Phase Bridge IGBT Module 100 A max 650 V PCB Mount manufactured by Infineon. The manufacturer part number is FS100R07N2E4BOSA1. The product is available in 3 phase bridge configuration. The given dimensions of the product include 107.5 x 45 x 17mm. The product is available in pcb mount configuration. Provides up to 335 w maximum power dissipation. The product has a maximum 100 a continuous collector current . Whereas features a 650 v of collector emitter voltage (max). In addition, the height is 17mm. Furthermore, the product is 45mm wide. Its accurate length is 107.5mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of econo2. Whereas, the minimum operating temperature of the product is -40 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 28 pins. The product offers 3 phase transistor configuration.

ESD Control Selection Guide V1(Technical Reference)

FS100R07N2E4, IGBT-Module(Technical Reference)
