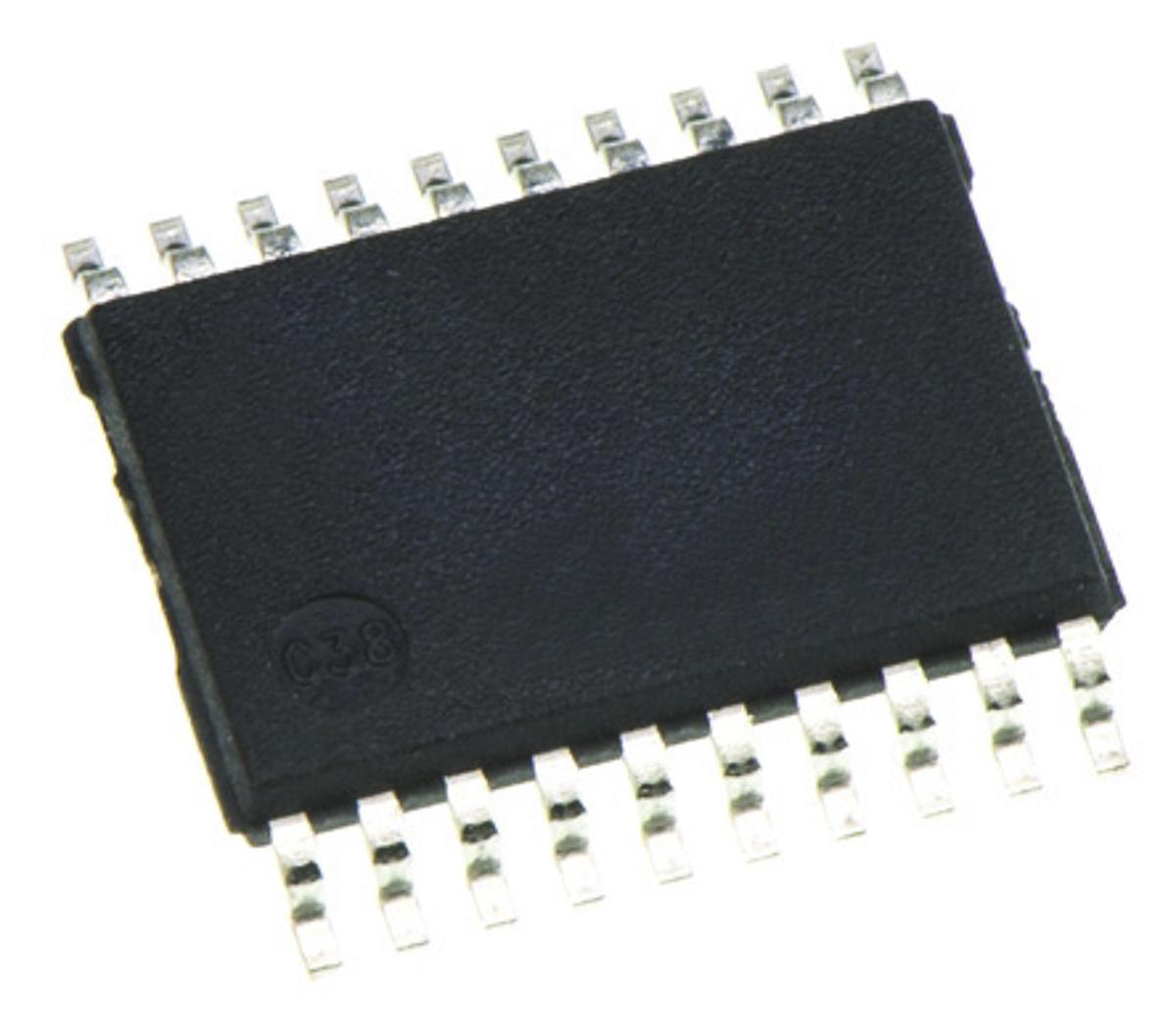

Toshiba 74LCX574FT Octal D Type Flip Flop IC, CMOS, 20-Pin TSSOP

74LCX574FT Toshiba Octal D Type Flip Flop IC, CMOS, 20-Pin TSSOP
Toshiba

Product Information

Polarity:
Non-Inverting
Dimensions:
6.5 x 4.4 x 1mm
Logic Family:
74LCX
Width:
4.4mm
Input Type:
CMOS
Maximum Propagation Delay Time @ Maximum CL:
30 ns @ 50 pF
Minimum Operating Supply Voltage:
1.65 V
Output Type:
CMOS
Package Type:
TSSOP
Number of Elements per Chip:
8
Maximum Operating Temperature:
+85 °C
Output Signal Type:
Single Ended
Length:
6.5mm
Pin Count:
20
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Logic Function:
D Type
Height:
1mm
Minimum Operating Temperature:
-40 °C
Triggering Type:
Positive Edge
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Octal D Type Flip Flop IC CMOS 20-Pin TSSOP manufactured by Toshiba. The manufacturer part number is 74LCX574FT. While providing non-inverting polarity. The given dimensions of the product include 6.5 x 4.4 x 1mm. The logic family is 74lcx. Furthermore, the product is 4.4mm wide. It carries cmos input type. It provides up to 30 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Furthermore, it has acmos output. The package is a sort of tssop. It consists of 8 elements per chip. It has a maximum operating temperature of +85 °c. The output signal is a kind of single ended. Its accurate length is 6.5mm. It contains 20 pins. It has 3.6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes d type. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. It is tailored with a positive edge type triggering . Features 50pf of propagation delay test condition.
