Schneider Electric Interface Relay Module 96mm Length, 24 V dc supply voltage , IP40 Rating

Enrgtech Part No: ET16748461
|
Manufacturer Part No:
RSL1PVBU
|
Manufacturer: Schneider Electric

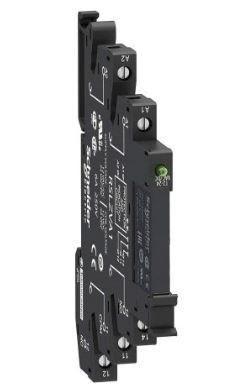

RSL1PVBU Schneider Electric Interface Relay Module 96mm Length, 24 V dc supply voltage , IP40 Rating

Product Information

Switching AC Voltage:

277 V ac

Coil Current:

6 A

Switching DC Voltage:

24 V dc

Series:

Harmony Relay RSL

Switching Current:

100 mA

Coil Voltage:

24 V dc

Coil Resistance:

3390Ω

Height:

96mm

Width:

78.7 mm

Length:

6.2mm

Standards/Approvals:

RoHS

Minimum Operating Temperature:

-40°C

Checking for live stock

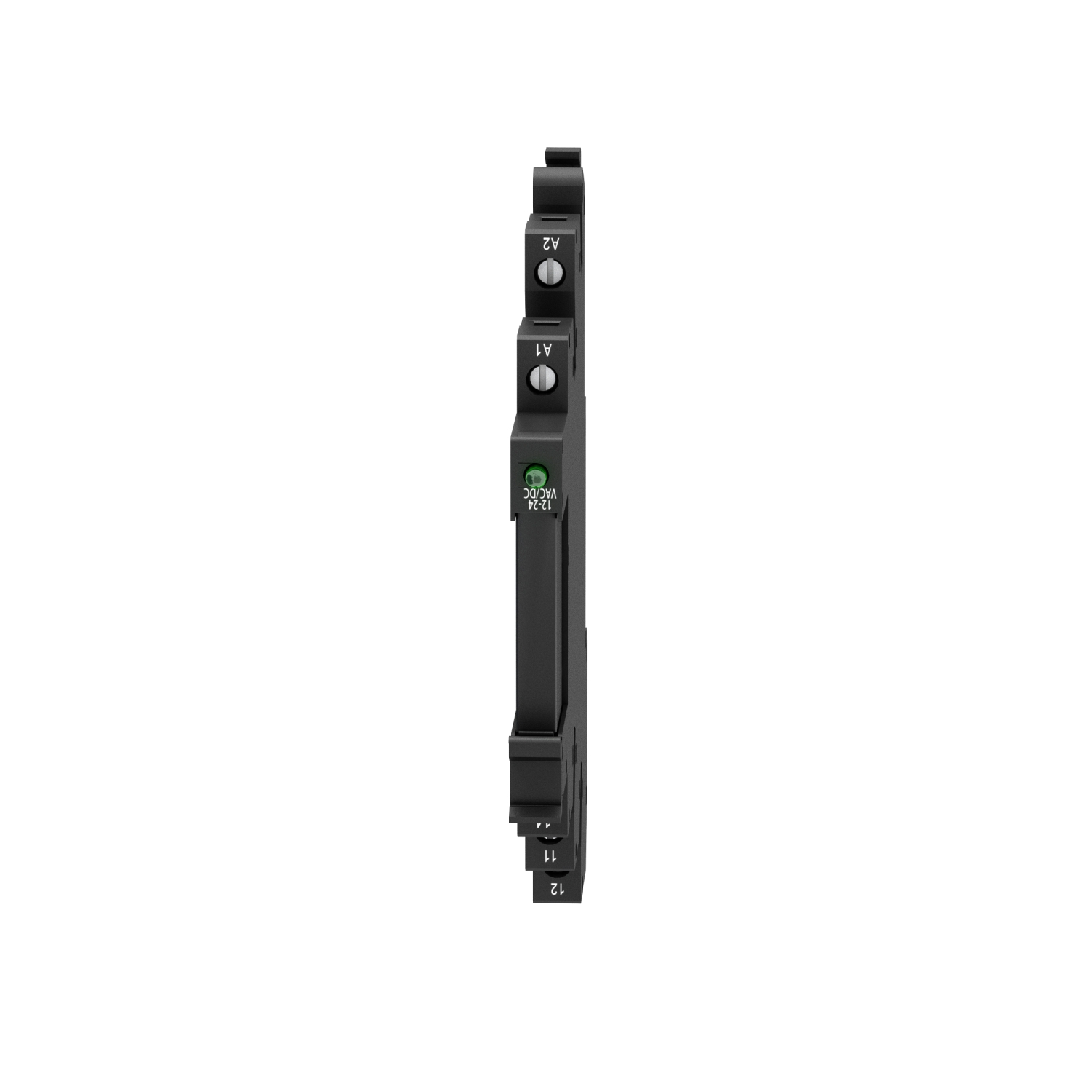

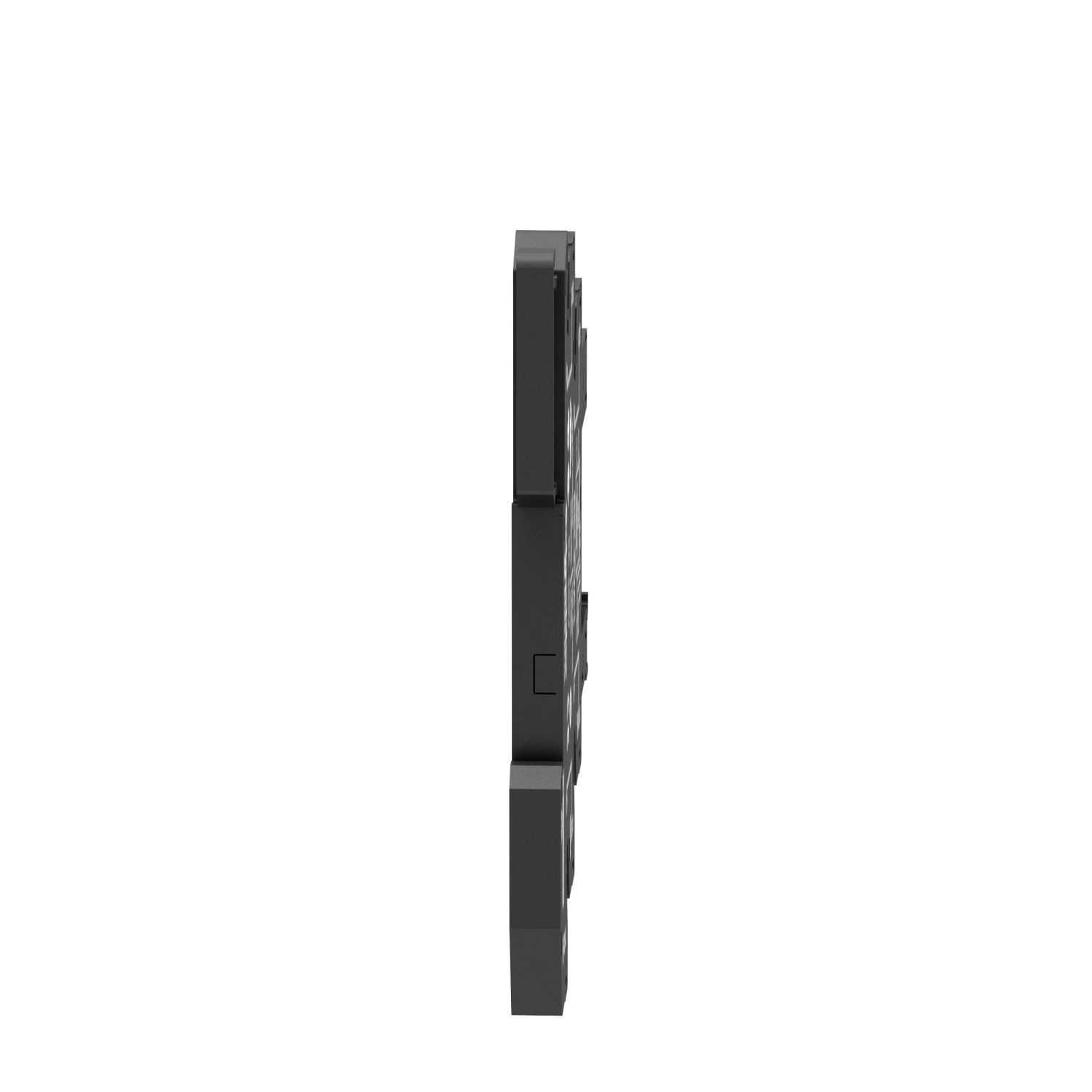

The Schneider Electric RSL1PVBU is a compact, high-efficiency electromechanical interface relay designed for signal conversion and interface duties in industrial control systems. Operating with a reliable 24V DC coil voltage, this plug-in slim relay features a Single-Pole Double-Throw (SPDT) contact configuration, capable of switching up to 6 A. It is engineered for simple DIN Rail installation via a screw socket. It includes an essential integrated LED and protection circuit for streamlined monitoring and enhanced reliability in crowded control cabinets.

Why Choose the Schneider Electric RSL1PVBU Interface Relay Module? - The Benefits

Select this relay for dependable signal bridging in narrow panels. Its slim, DIN Rail-mounted design saves valuable space. The integrated LED status indicator and protection circuit reduce troubleshooting time and enhance the operational lifespan, supported by its Green Premium verification.

Key Features & Suitable Environments of the Interface Relay

Relay Type: Interface Plug-In Slim Relay.
Coil Voltage: 24V dc.
Contact Configuration: SPDT (Single-Pole Double-Throw).
Special Features: Mounted on a Screw Socket with integrated LED and Protection Circuit.
Mounting: Designed for efficient DIN Rail installation with screw terminals.
Load Current: Rated up to 6 A @ 250 V ac.
Suitable Environments: Industrial automation and control panels, machine building, process control systems, and electrical distribution switchboards.
