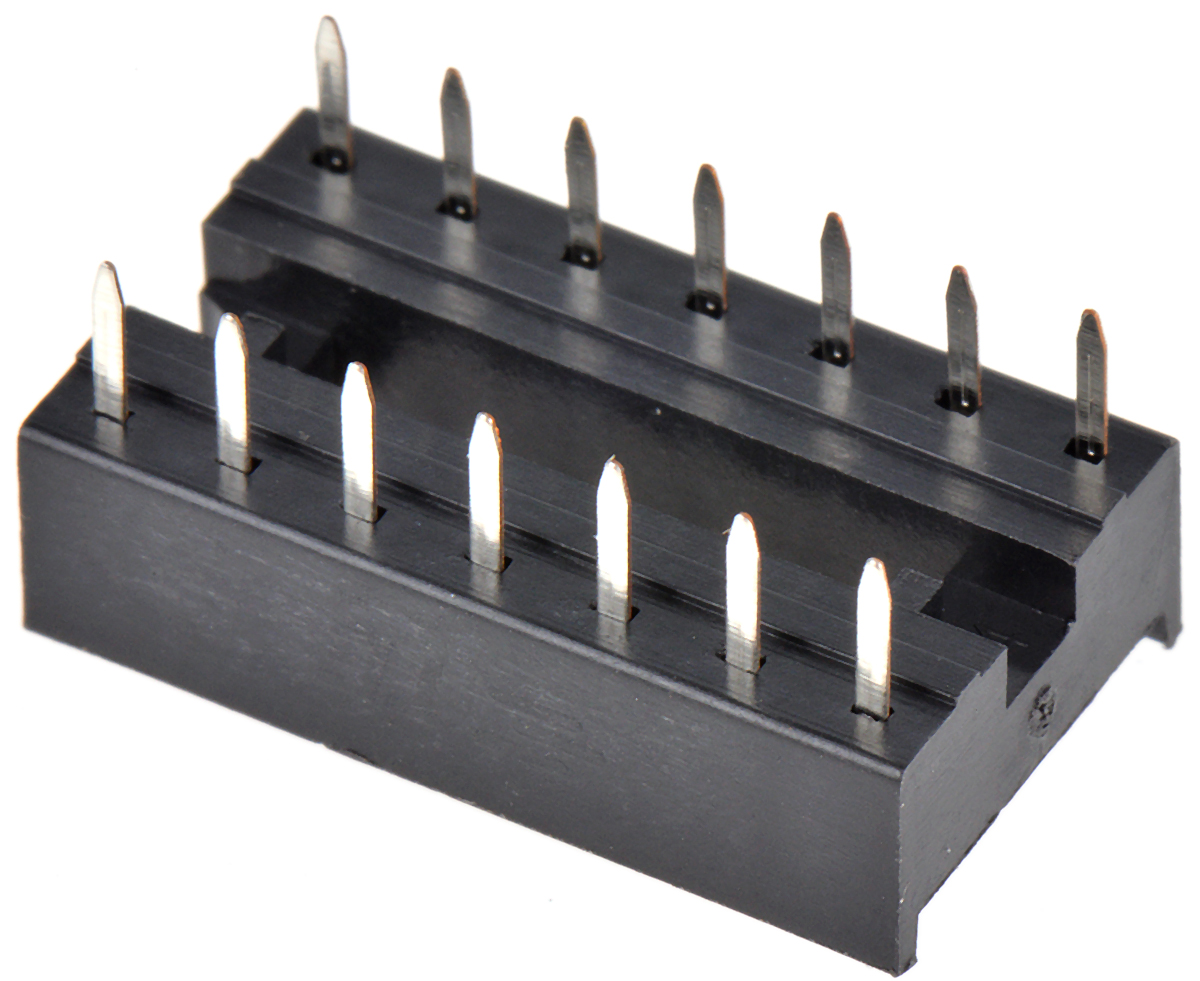

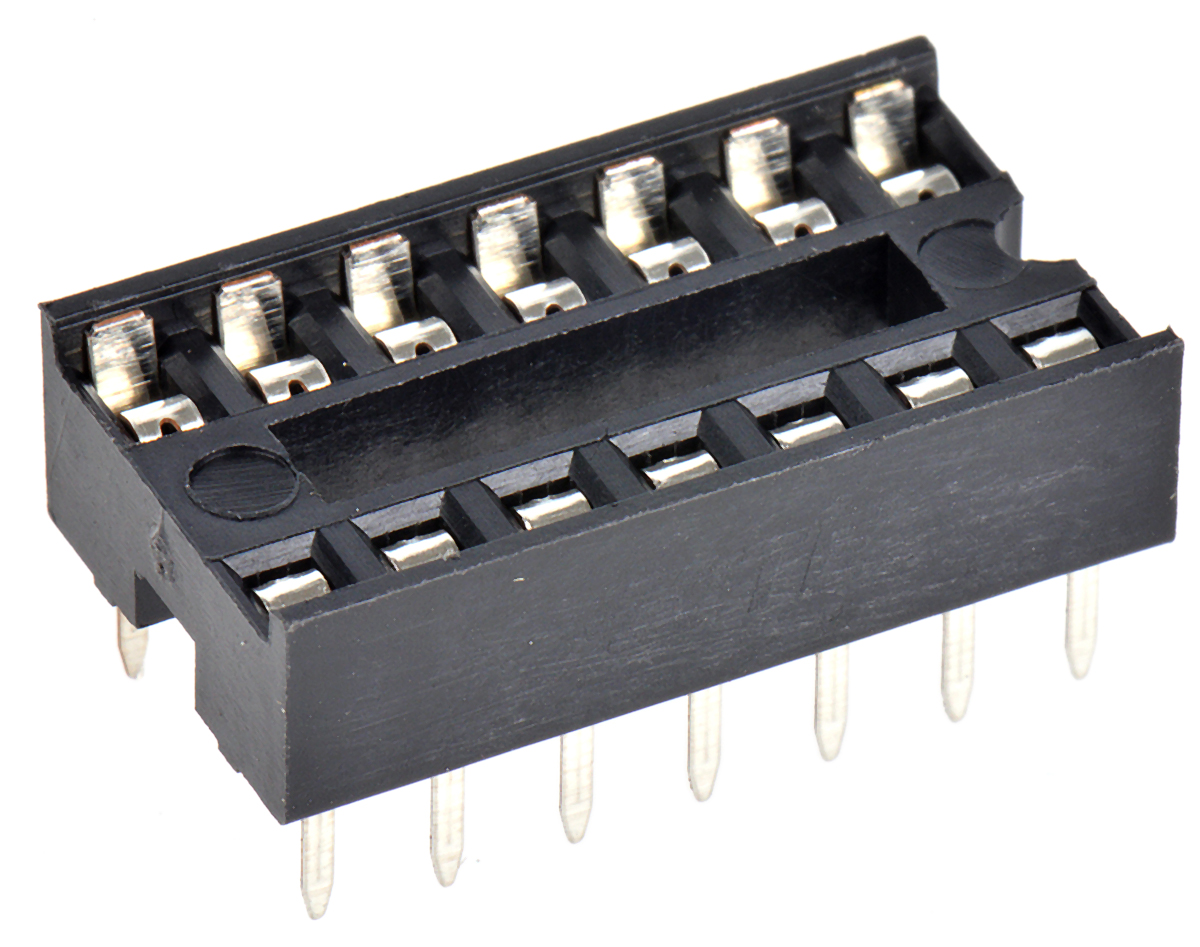

TE Connectivity 1-2199298 2.54mm Pitch Straight 14 Way, Through Hole Standard pin Ladder IC Dip Socket, 1A

1-2199298-3 TE Connectivity 1-2199298 2.54mm Pitch Straight 14 Way, Through Hole Standard pin Ladder IC Dip Socket, 1A
1-2199298-3
TE Connectivity

Product Information

Row Width:
7.62mm
Current Rating:
1A
Dimensions:
17.78 x 10 x 5.1mm
Housing Material:
Glass Filled PBT, Thermoplastic
Width:
10mm
Pin Type:
Standard
Contact Plating:
Tin over Nickel
Termination Method:
Solder
Maximum Operating Temperature:
+105°C
Frame Type:
Ladder
Minimum Operating Temperature:
-40°C
Voltage Rating:
250 V ac/dc
Length:
17.78mm
Orientation:
Straight
Mounting Type:
Through Hole
Series:
1-2199298
Depth:
5.1mm
Pitch:
2.54mm
Number of Contacts:
14
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is 1-2199298 2.54mm Pitch Straight 14 Way Through Hole Standard pin Ladder IC Dip Socket 1A manufactured by TE Connectivity. The manufacturer part number is 1-2199298-3. Its row is 7.62mm in width . The product has a current rating of 1a. The given dimensions of the product include 17.78 x 10 x 5.1mm. The product also features robust glass filled pbt, thermoplastic housing material. Furthermore, the product is 10mm wide. It contains a standard type pin . The high-quality tin over nickel is used as contact plating material. It allows solder termination method. It has a maximum operating temperature of +105°c. The frame is designed as [Fram Type] type. Whereas, the minimum operating temperature of the product is -40°c. Moreover, the product has a nominal 250 v ac/dc voltage rating. Its accurate length is 17.78mm. The product has a straight orientation. The product is available in through hole configuration. The product 1-2199298, is a highly preferred choice for users. The product comes in 5.1mm depth. Moreover, the product is 2.54mm. The product contains 14 contacts. The product is made from sturdy phosphor bronze materials.
