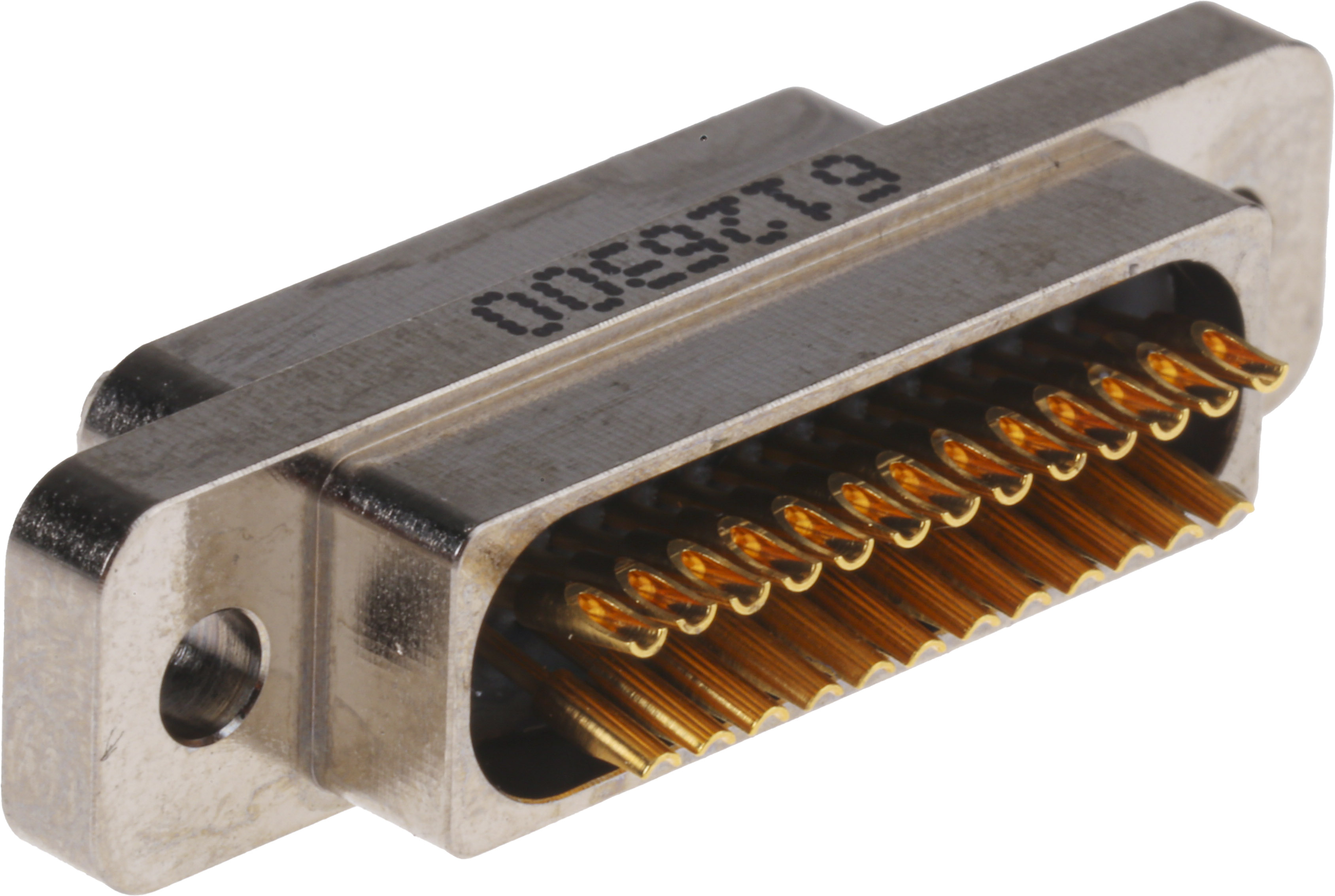

Glenair MWDM Series Panel Mount Micro D Connector Plug, 25 Way, 3A

MWDM2L-25PS Glenair MWDM Series Panel Mount Micro D Connector Plug, 25 Way, 3A
MWDM2L-25PS
MWDM2L-25PS
ET13877599
ET13877599
Glenair

Product Information

Current Rating:
3A
Dimensions:
30.01 x 7.82 x 15.65mm
Mounting Type:
Panel Mount
Series:
MWDM
Body Orientation:
Straight
Termination Method:
Solder
Length:
30.01mm
D Connector Type:
Micro-D
Housing Material:
Aluminium
Width:
7.82mm
Depth:
15.65mm
Contact Plating:
Gold over Nickel
Gender:
Male
Number of Contacts:
25
Maximum Operating Temperature:
+150°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Beryllium Copper
RoHs Compliant
Checking for live stock

Metal Shell Unterminated Solder cups will accommodate 26 AWG cable and smaller Splayed solder cup rows to aid user assembly Dimensions for Metal Shell Terminated and Unterminated Type A B C D E F G H J 9-way plug 19.94 7.82 14.35 10.16 6.86 8.48 4.7 10.57 4.65 9-way socket 19.94 7.82 14.35 10.16 6.86 10.16 6.38 10.90 4.98 15-way plug 23.75 7.82 18.16 13.97 6.86 12.29 4.7 10.57 4.65 15-way socket 23.75 7.82 18.16 13.97 6.86 13.97 6.38 10.90 4.98 21-way plug 27.56 7.82 21.97 17.78 6.86 16.10 4.7 10.57 4.65 21-way socket 27.56 7.82 21.97 17.78 6.86 17.78 6.38 10.90 4.98 25-way plug 30.10 7.83 24.51 20.32 6.86 18.64 6.38 10.57 4.65 25-way socket 30.10 7.83 24.51 20.32 6.86 20.32 6.38 10.90 4.98 31-way plug 33.90 7.82 28.31 24.13 6.86 22.45 4.7 10.57 4.65 31-way socket 33.90 7.82 28.31 24.13 6.86 24.13 6.38 10.90 4.98 37-way plug 37.72 7.82 32.13 27.94 6.86 26.26 4.7 10.57 4.65 37-way socket 37.72 7.82 32.13 27.94 6.86 27.94 6.38 10.90 4.98 51-way plug 36.45 8.92 30.86 49.76 8.1 24.99 5.79 10.57 4.65 51-way socket 36.45 8.92 30.86 49.76 8.1 26.67 7.47 10.90 4.98 100-way plug 55.1 10.00 45.72 36.62 9.14 35.15 6.88 10.56 4.65 100-way socket 55.1 10.00 45.72 36.62 9.14 38.30 10.01 10.89 4.98 Standards Mil-PRF-83513, BS9523-F0002 Micro D 0.05inch Pitch Designed for use in electronic systems in commercial and military aerospace, military land and sea and industrial/telecommunication applications, the Micro D connector provides exceptional mechanical and electrical integrity, whilst operating in extreme vibration and environmental conditions. High Performance, Gold Plated Twist Pin Contact System 3 Amp Contact Rating High Density ....

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

Cheer on your favorite e-commerce corporation Enrgtech is here, offering high-quality Glenair MWDM Series Panel Mount Micro D Connector Plug, 25 Way, 3A. Each component is made of 100% best quality materials D Sub Connectors, it makes you feel comfortable and make purchases about Glenair. Our branded Glenair is recognized globally, our server filled up with huge voluminous orders about Glenair MWDM Series Panel Mount Micro D Connector Plug, 25 Way, 3A daily. You will notice the D Sub Connectors are efficient, durable, and secure. A typical form of the electrical connector such as Glenair MWDM Series Panel Mount Micro D Connector Plug, 25 Way, 3A is the D-subminiature.

They get their name from the D-shaped metal shield they wear D Sub Connectors. D-subs were among the tiniest connections including Glenair MWDM Series Panel Mount Micro D Connector Plug, 25 Way, 3A used on computer systems when they were first introduced. If you have got any queries or concerns regarding our D Sub Connectors, feel free to give us a call at +44 (0) 3303 800 157 or drop an email at sales@enrgtech.co.uk. We would be happy to help.
