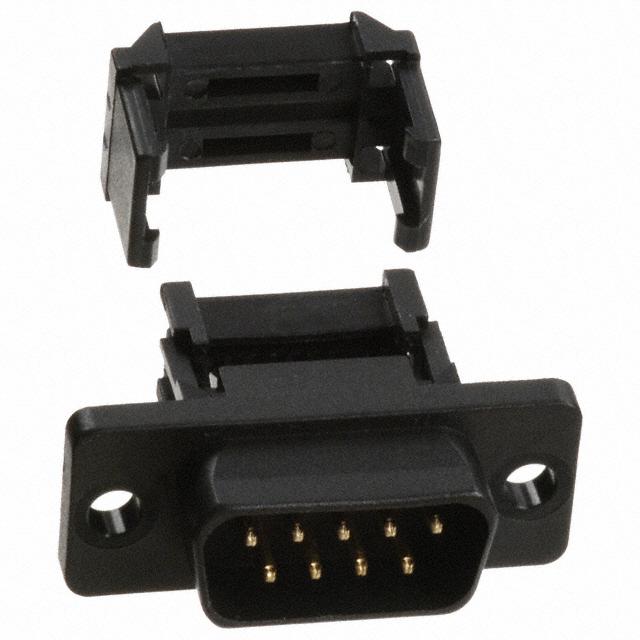

Assmann WSW Components A-DSF09LPIII/FP-R

A-DSF09LPIII-FP-R Assmann WSW Components A-DSF09LPIII/FP-R
Assmann WSW Components

Product Information

Shell Size, Connector Layout:
1 (DE, E)
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8536.69.4051
Operating Temperature:
-55°C ~ 105°C
Connector Style:
D-Sub
Contact Finish Thickness:
-
Dielectric Material:
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions:
9
Voltage Rating:
250V
REACH Status:
REACH Unaffected
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Package:
Tray
Wire Gauge:
26-28 AWG
Contact Form:
-
Connector Type:
Plug, Male Pins
Contact Finish:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
IDC, Ribbon Cable
Current Rating (Amps):
3A
Backset Spacing:
-
Ingress Protection:
-
Features:
Feed Through, Strain Relief
Mounting Type:
Free Hanging (In-Line)
Color:
-
Series:
-
Shell Material, Finish:
-
Contact Type:
Signal
Contact Material:
Copper Alloy
ECCN:
EAR99
Checking for live stock

This is manufactured by Assmann WSW Components. The manufacturer part number is A-DSF09LPIII/FP-R. 1 (de, e) is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4051. The product has -55°c ~ 105°c operating temperature range. It comes in d-sub connector style. Moreover, the product is constructed from highly polybutylene terephthalate (pbt), glass filled dielectric material. The product carries possible position value of 9. Moreover, the product has a nominal 250v voltage rating. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in tray package . Moreover, the product has a wire gauge of 26-28 awg. plug, male pins Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features idc, ribbon cable termination style. Additionally, the product's output is 3a. The splendid features of the product include feed through, strain relief. The product is available in free hanging (in-line) configuration. It has typical contact type of signal. The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
