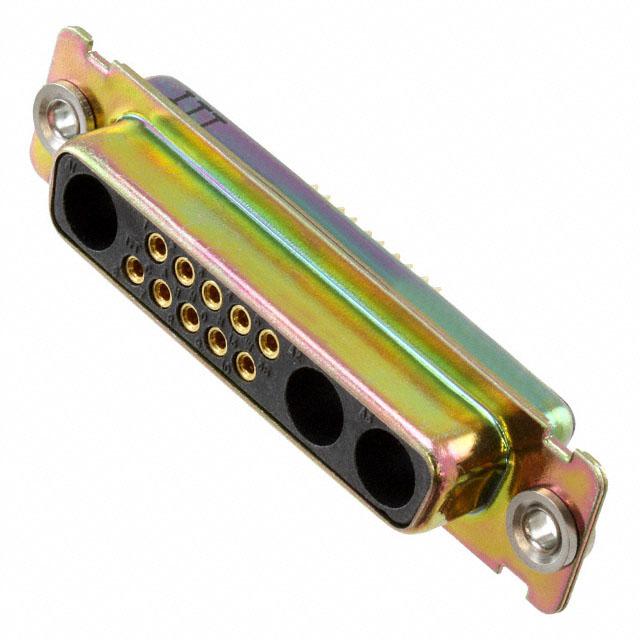

ITT Cannon, LLC DBMMY-13W3S

DBMMY-13W3S ITT Cannon, LLC
DBMMY-13W3S
ITT Cannon, LLC

Product Information

Shell Size, Connector Layout:
3 (DB, B) - 13C3, 13W3
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8536.69.4030
RoHS Status:
RoHS non-compliant
Operating Temperature:
-55°C ~ 150°C
Connector Style:
D-Sub, Combo
Contact Finish Thickness:
50.0µin (1.27µm)
Dielectric Material:
Polycyclohexylenedimethylene Terephthalate (PCT)
Number of Positions:
13 (10 + 3 Coax or Power)
REACH Status:
REACH info available upon request
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Voltage Rating:
-
Wire Gauge:
8-26 AWG
Contact Form:
Machined
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
Not Applicable
Termination:
Solder Cup
standardLeadTime:
30 Weeks
Current Rating (Amps):
7.5A
Backset Spacing:
-
Ingress Protection:
-
Features:
Shielded
Mounting Type:
Panel Mount
Color:
Black
Series:
24308-Style, Combo D®, D*MM
Shell Material, Finish:
Steel, Yellow Chromate Plated Zinc
Packaging:
Bulk
Contact Type:
Signal and Coax or Power (Not Included)
Contact Material:
Copper Alloy
ECCN:
EAR99
Checking for live stock

This is manufactured by ITT Cannon, LLC. The manufacturer part number is DBMMY-13W3S. 3 (db, b) - 13c3, 13w3 is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4030. The product is rohs non-compliant. The product has -55°c ~ 150°c operating temperature range. It comes in d-sub, combo connector style. It has 50.0µin (1.27µm) of contact finishing thickness. Moreover, the product is constructed from highly polycyclohexylenedimethylene terephthalate (pct) dielectric material. The product carries possible position value of 13 (10 + 3 coax or power). In addition, it is reach info available upon request. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. Moreover, the product has a wire gauge of 8-26 awg. It also has a machined contact form. receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is not applicable. The product features solder cup termination style. It has a long 30 weeks standard lead time. Additionally, the product's output is 7.5a. The splendid features of the product include shielded. The product is available in panel mount configuration. It has a classic black colour. The product 24308-style, combo d®, d*mm, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, yellow chromate plated zinc. In addition, bulk is the available packaging type of the product. It has typical contact type of signal and coax or power (not included). The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
