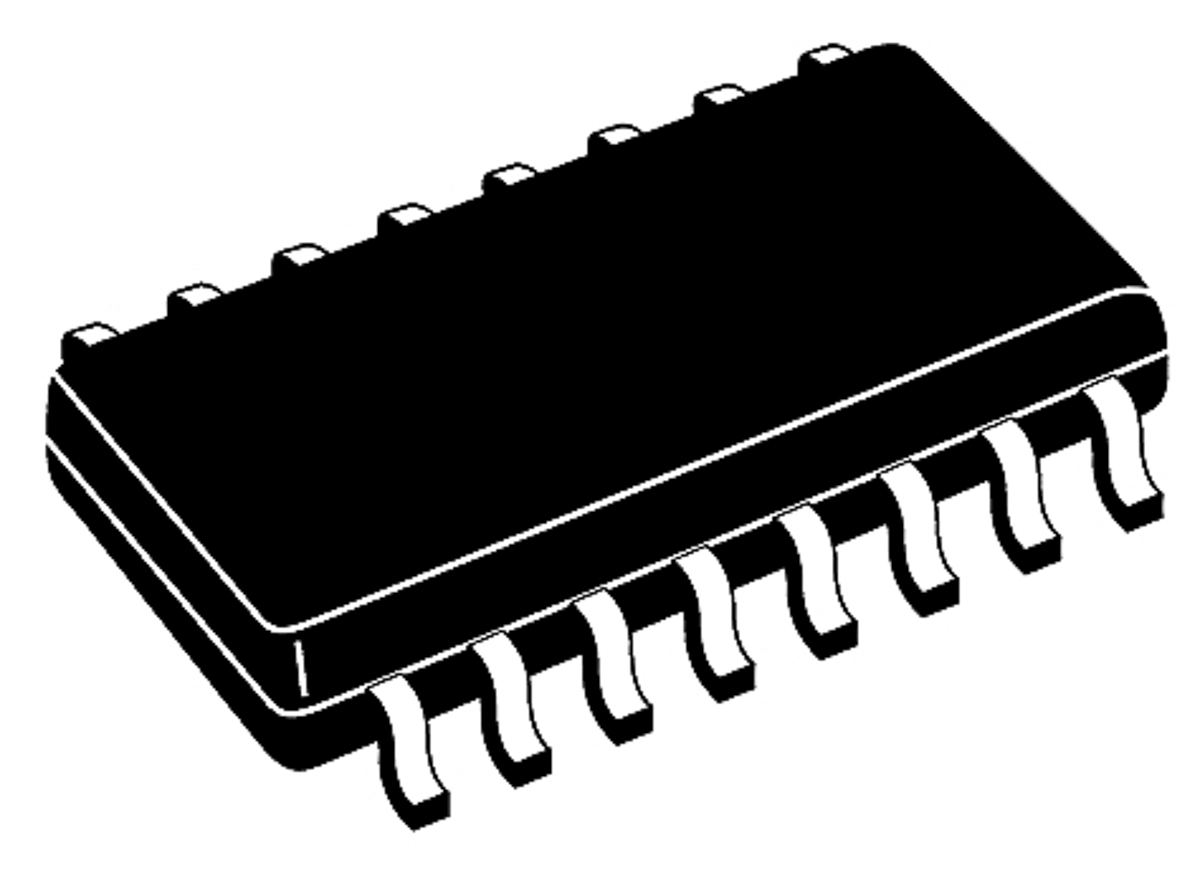

Nexperia 74HC597D,653 8-stage Shift Register, Parallel to Serial, 16-Pin SOIC

74HC597D-653 Nexperia 74HC597D,653 8-stage Shift Register, Parallel to Serial, 16-Pin SOIC
Nexperia

Product Information

Number of Elements:
1
Dimensions:
10 x 4 x 1.45mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Minimum Operating Supply Voltage:
2 V
Logic Function:
Shift Register
Logic Family:
74HC
Pin Count:
16
Operation Mode:
Parallel to Serial
Package Type:
SO
Number of Stages:
8
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
6 V
Triggering Type:
Positive Edge
Maximum Operating Temperature:
125 °C
Reset Type:
Asynchronous
RoHs Compliant
Checking for live stock

This is 8-stage Shift Register Parallel to Serial 16-Pin SOIC manufactured by Nexperia. The manufacturer part number is 74HC597D,653. It carries 1 elements. The given dimensions of the product include 10 x 4 x 1.45mm. The product is available in surface mount configuration. While is configured as uni-directional. While its minimum operating supply voltage is 2 v. The primary function of logic includes shift register. The logic family is 74hc. It contains 16 pins. Its operation mode is parallel to serial . The package is a sort of so. It includes 8 stages. Whereas, the minimum operating temperature of the product is -40 °c. It has 6 v maximum operating supply voltage. It is tailored with a positive edge type triggering . It has a maximum operating temperature of 125 °c. It has a/an asynchronous type reset .
