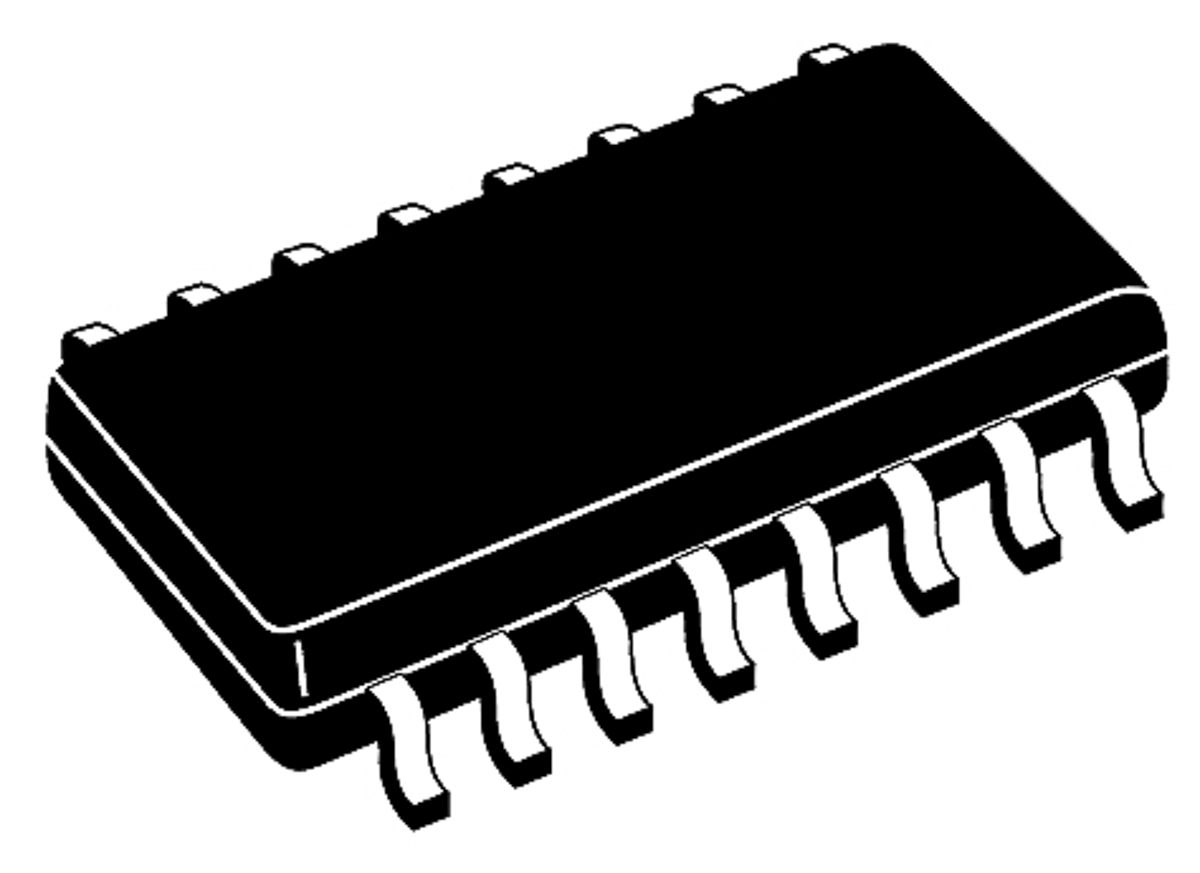

Nexperia 74HC4094D,653 8-stage Shift Register, Serial to Serial/Parallel, 2 → 6 V, 16-Pin SOIC

74HC4094D-653 Nexperia 74HC4094D,653 8-stage Shift Register, Serial to Serial/Parallel, 2 → 6 V, 16-Pin SOIC
Nexperia

Product Information

Number of Elements:
1
Dimensions:
10 x 4 x 1.45mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Minimum Operating Supply Voltage:
2 V
Logic Family:
74HC
Number of Stages:
8
Operation Mode:
Serial to Serial, Parallel
Package Type:
SO
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
6 V
Triggering Type:
Positive Edge
Maximum Operating Temperature:
125 °C
Pin Count:
16
RoHs Compliant
Checking for live stock

This is 8-stage Shift Register Serial to Serial/Parallel 2 → 6 V 16-Pin SOIC manufactured by Nexperia. The manufacturer part number is 74HC4094D,653. It carries 1 elements. The given dimensions of the product include 10 x 4 x 1.45mm. The product is available in surface mount configuration. While is configured as uni-directional. While its minimum operating supply voltage is 2 v. The logic family is 74hc. It includes 8 stages. Its operation mode is serial to serial, parallel . The package is a sort of so. Whereas, the minimum operating temperature of the product is -40 °c. It has 6 v maximum operating supply voltage. It is tailored with a positive edge type triggering . It has a maximum operating temperature of 125 °c. It contains 16 pins.
