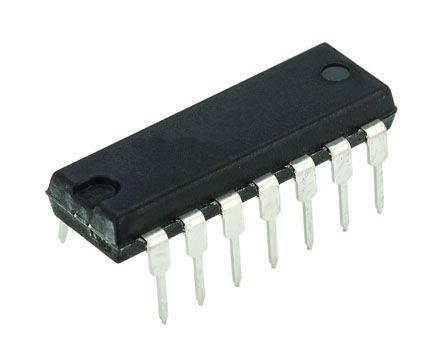

Texas Instruments CD74HCT393EE4 Dual 4-stage Binary Counter, Up Counter, 5V, 14-Pin PDIP

CD74HCT393EE4 Texas Instruments  Dual 4-stage Binary Counter, Up Counter, 5V, 14-Pin PDIP
Texas Instruments

Product Information

Reset Type:
Asynchronous
Counter Type:
Binary
Number of Elements:
2
Dimensions:
19.3 x 6.35 x 4.57mm
Mounting Type:
Through Hole
Direction Type:
Uni-Directional
Minimum Operating Supply Voltage:
4.5 V
Logic Function:
Counter, Divider
Operation Mode:
Up Counter
Logic Family:
HCT
Height:
4.57mm
Width:
6.35mm
Length:
19.3mm
Package Type:
PDIP
Number of Stages:
4
Minimum Operating Temperature:
-55 °C
Maximum Operating Supply Voltage:
5.5 V
Triggering Type:
Negative Edge
Maximum Operating Temperature:
+125 °C
Pin Count:
14
RoHs Compliant
Checking for live stock

This is Dual 4-stage Binary Counter Up Counter 5V 14-Pin PDIP manufactured by Texas Instruments. The manufacturer part number is CD74HCT393EE4. It has a/an asynchronous type reset . Moreover, it has a/an binary type counter . It carries 2 elements. The given dimensions of the product include 19.3 x 6.35 x 4.57mm. The product is available in through hole configuration. While is configured as uni-directional. While its minimum operating supply voltage is 4.5 v. The primary function of logic includes counter, divider. Its operation mode is up counter . The logic family is hct. In addition, the height is 4.57mm. Furthermore, the product is 6.35mm wide. Its accurate length is 19.3mm. The package is a sort of pdip. It includes 4 stages. Whereas, the minimum operating temperature of the product is -55 °c. It has 5.5 v maximum operating supply voltage. It is tailored with a negative edge type triggering . It has a maximum operating temperature of +125 °c. It contains 14 pins.
