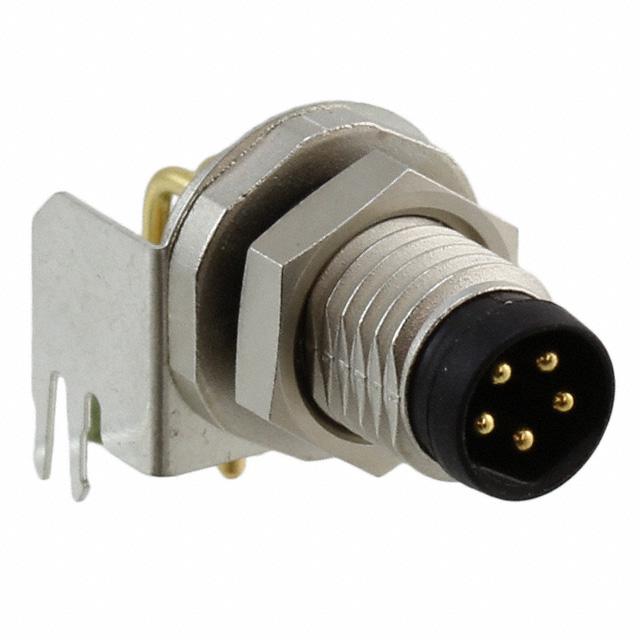

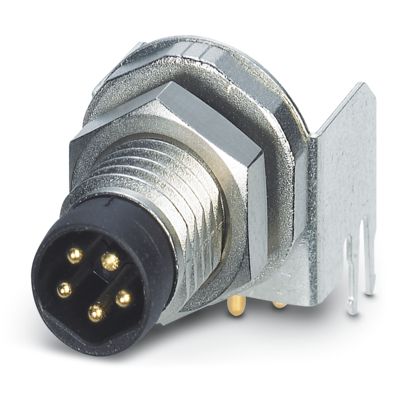

Pole Format:
5
Current:
3A
Shell Size:
M8 x 1
Plug/Socket:
Plug
Contact Plating:
Gold
Product Type:
Circular Connector
Maximum Operating Temperature:
85°C
Termination Type:
Solder
IP Rating:
IP65, IP67
Contact Gender:
Male
Standards/Approvals:
cUL Recognised, IEC 61076-2-104, UL Recognised
Connector Size:
M8
Mount Type:
Plug-in
Housing Material:
Gadolinium Zinc Alloy
Orientation:
Angled
Series:
SACC
Coding:
B
Voltage:
30 V
Minimum Operating Temperature:
-25°C
Number of Contacts:
5
Contact Material:
Copper Alloy
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
30VAC/DC
Mounting Feature:
Bulkhead - Front Side Nut
Operating Temperature:
-25°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
5
Contact Finish - Mating:
Gold
Backshell Material, Plating:
-
Shielding:
-
Cable Opening:
-
Shell Material:
Zinc Die Cast
REACH Status:
REACH Affected
Current Rating (Amps):
3A
Applications:
-
Primary Material:
Metal
Material Flammability Rating:
UL94 HB
Package:
Bulk
Shell Size - Insert:
M8-5
Connector Type:
Plug, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Termination:
Solder
standardLeadTime:
12 Weeks
Insert Material:
Polyamide (PA66), Nylon 6/6
Orientation:
B
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Board Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Shell Finish:
Nickel
Color:
Silver
Series:
DSI
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Alloy
ECCN:
EAR99
