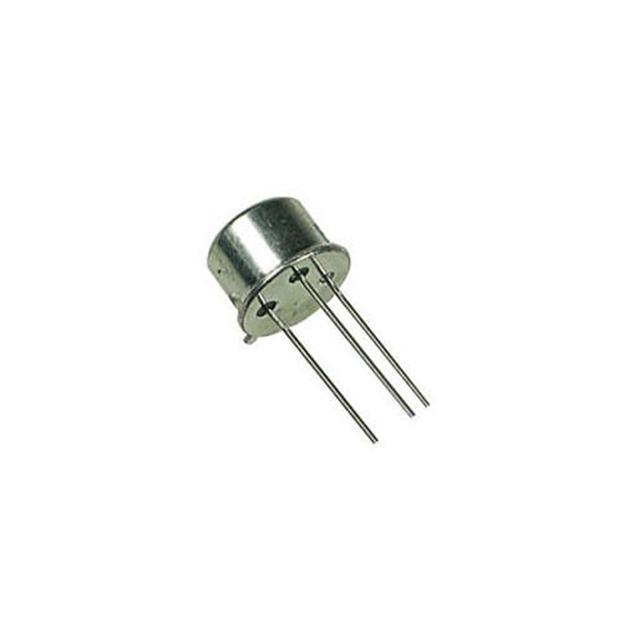

Solid State Inc. 2N5320

2N5320 Solid State Inc.
Solid State Inc.

Product Information

Current - Collector (Ic) (Max):
2 A
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 200°C (TJ)
Package / Case:
TO-205AD, TO-39-3 Metal Can
DC Current Gain (hFE) (Min) @ Ic, Vce:
30 @ 500mA, 4V
Frequency - Transition:
-
Vce Saturation (Max) @ Ib, Ic:
500mV @ 50mA, 500mA
Voltage - Collector Emitter Breakdown (Max):
75 V
Transistor Type:
NPN
Package:
Box
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Collector Cutoff (Max):
100µA
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-39
Power - Max:
10 W
ECCN:
EAR99
Checking for live stock

This is manufactured by Solid State Inc.. The manufacturer part number is 2N5320. The maximum collector current includes 2 a. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -65°c ~ 200°c (tj) operating temperature range. Moreover, the product comes in to-205ad, to-39-3 metal can. Furthermore, 30 @ 500ma, 4v is the minimum DC current gain at given voltage. The 500mv @ 50ma, 500ma is the maximum Vce saturation. The maximum collector emitter breakdown voltage of the product is 75 v. The transistor is a npn type. It is shipped in box package . Its typical moisture sensitivity level is not applicable. In addition, 100µa is the maximum current at collector cutoff. The product is available in through hole configuration. to-39 is the supplier device package value. The maximum power of the product is 10 w. The product is designated with the ear99 code number.

pdf icon
2N532xx Datasheet(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 2N5320 on website for other similar products.
We accept all major payment methods for all products including ET23640124. Please check your shopping cart at the time of order.
You can order Solid State Inc. brand products with 2N5320 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Solid State Inc. 2N5320. You can also check on our website or by contacting our customer support team for further order details on Solid State Inc. 2N5320.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23640124 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Solid State Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET23640124.
Yes. We ship 2N5320 Internationally to many countries around the world.
