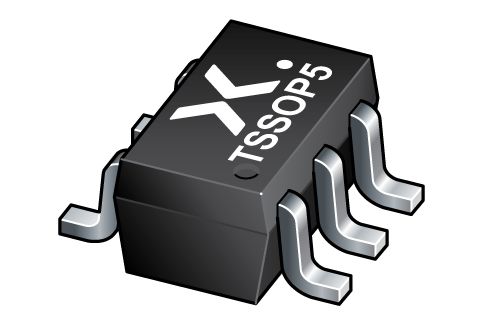

Nexperia 74LV1T34GWH Buffer, 5-Pin TSSOP5

74LV1T34GWH Nexperia Buffer, 5-Pin TSSOP5
74LV1T34GWH Nexperia Buffer, 5-Pin TSSOP5
Nexperia

Product Information

Polarity:
Non-Inverting
Logic Family:
LV
Width:
0.8 mm
Input Type:
CMOS
Height:
0.32mm
Automotive Standard:
No
Maximum Low Level Output Current:
8mA
Maximum High Level Output Current:
-8mA
Output Type:
CMOS
Minimum Supply Voltage:
1.6V
Package Type:
TSSOP-5
Number of Channels:
1
Product Type:
Buffer
Maximum Operating Temperature:
125°C
Length:
0.8mm
Standards/Approvals:
CDM ANSI/ESDA/JEDEC JS-002 Class C3, ESD: HBM ANSI/ESDA/JEDEC JS-001 Class 2, JESD 78 Class II
Pin Count:
5
Mount Type:
Surface
Maximum Propagation Delay Time @ CL:
11.4ns
Series:
74LV1T34
Logic Function:
Buffer
Maximum Supply Voltage:
5.5V
Minimum Operating Temperature:
-40°C
Schmitt Trigger Input:
No
Supply Current:
10μA
RoHs Compliant
Checking for live stock

This is Buffer 5-Pin TSSOP5 manufactured by Nexperia. The manufacturer part number is 74LV1T34GWH. While providing non-inverting polarity. The logic family is lv. Furthermore, the product is 0.8 mm wide. It carries cmos input type. In addition, the height is 0.32mm. The product complies with automotive standard - no. On the other hand, it is featured with 8ma of max. low level output current. While a -8ma of maximum high level output current. Furthermore, it has acmos output. It has a minimum 1.6v supply voltage . The package is a sort of tssop-5. It is supplied with 1 channels. buffer is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. Its accurate length is 0.8mm. It contains 5 pins. It has a surface type mount . The product 74lv1t34, is a highly preferred choice for users. The primary function of logic includes buffer. The product requires a maximum 5.5v supply voltage . Whereas, the minimum operating temperature of the product is -40°c. Schmitt Trigger Input - no. It features 10μa supply current.

pdf icon
Datasheet - 74LV1T34GWH(Technical Reference)
