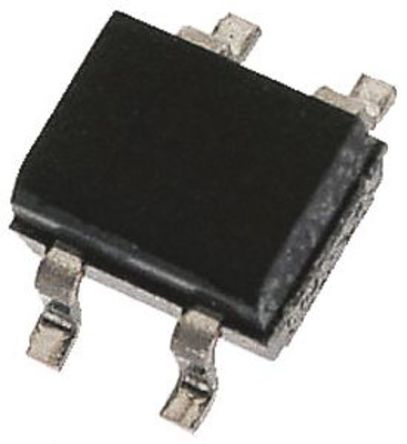

Fagor Electronica 1SMZG10GP TR, Bridge Rectifier, 500 mA, 800 mA 1000V, 4-Pin TO-269AA

1SMZG10GP-TR Fagor Electronica 1SMZG10GP TR, Bridge Rectifier, 500 mA, 800 mA 1000V, 4-Pin TO-269AA
Fagor Electronica

Product Information

Peak Reverse Current:
100µA
Dimensions:
4.75 x 3.65 x 2.5mm
Bridge Type:
Single Phase
Diode Technology:
Silicon Junction
Peak Average Forward Current:
500 mA, 800 mA
Peak Non-Repetitive Forward Surge Current:
35A
Height:
2.5mm
Peak Forward Voltage:
1.15V
Width:
3.65mm
Length:
4.75mm
Package Type:
TO-269AA
Peak Reverse Repetitive Voltage:
1000V
Minimum Operating Temperature:
-40 °C
Mounting Type:
Surface Mount
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
4
RoHs Compliant
Checking for live stock

This is Bridge Rectifier 500 mA 800 mA 1000V 4-Pin TO-269AA manufactured by Fagor Electronica. The manufacturer part number is 1SMZG10GP TR. It has a typical 100µa peak reverse current . The given dimensions of the product include 4.75 x 3.65 x 2.5mm. It contains a/an single phase type bridge . The product utilizes silicon junction diode technology. Additionally, it has about 500 ma, 800 ma of peak average forward current . Moreover, a bespoke product has 35a peak non-repetitive forward surge current. In addition, the height is 2.5mm. Whereas, the peak forward voltage is about 1.15v . Furthermore, the product is 3.65mm wide. Its accurate length is 4.75mm. The package is a sort of to-269aa. While having the peak reverse repetitive 1000v. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in surface mount configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 4 pins.

pdf icon
1SMZG SMT Bridge Rectifier(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 1SMZG10GP TR on website for other similar products.
We accept all major payment methods for all products including ET16831960. Please check your shopping cart at the time of order.
You can order Fagor Electronica brand products with 1SMZG10GP TR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bridge Rectifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Fagor Electronica 1SMZG10GP TR, Bridge Rectifier, 500 mA, 800 mA 1000V, 4-Pin TO-269AA. You can also check on our website or by contacting our customer support team for further order details on Fagor Electronica 1SMZG10GP TR, Bridge Rectifier, 500 mA, 800 mA 1000V, 4-Pin TO-269AA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16831960 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Fagor Electronica" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16831960.
Yes. We ship 1SMZG10GP TR Internationally to many countries around the world.
