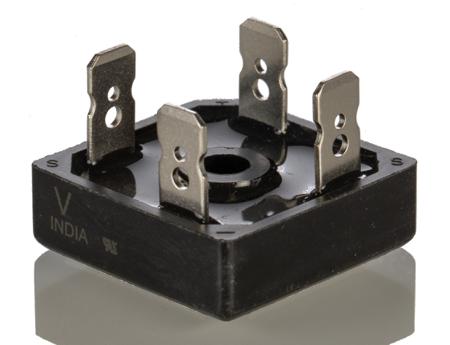

Vishay VS-26MB10A, Bridge Rectifier, 25A 100V, 4-Pin D 34

VS-26MB10A Vishay , Bridge Rectifier, 25A 100V, 4-Pin D 34
VS-26MB10A
Vishay

Product Information

Peak Reverse Current:
10µA
Dimensions:
28.5 x 28.5 x 9.8mm
Bridge Type:
Single Phase
Peak Non-Repetitive Forward Surge Current:
420A
Peak Average Forward Current:
25A
Height:
9.8mm
Peak Forward Voltage:
1.25V
Width:
28.5mm
Length:
28.5mm
Package Type:
D 34
Peak Reverse Repetitive Voltage:
100V
Minimum Operating Temperature:
-55 °C
Mounting Type:
Screw Mount
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
4
RoHs Compliant
Checking for live stock

This is Bridge Rectifier 25A 100V 4-Pin D 34 manufactured by Vishay. The manufacturer part number is VS-26MB10A. It has a typical 10µa peak reverse current . The given dimensions of the product include 28.5 x 28.5 x 9.8mm. It contains a/an single phase type bridge . Moreover, a bespoke product has 420a peak non-repetitive forward surge current. Additionally, it has about 25a of peak average forward current . In addition, the height is 9.8mm. Whereas, the peak forward voltage is about 1.25v . Furthermore, the product is 28.5mm wide. Its accurate length is 28.5mm. The package is a sort of d 34. While having the peak reverse repetitive 100v. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in screw mount configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 4 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
Contains SVHC - Lead - CAS No. 7439-92-1(Technical Reference)
pdf icon
Package Drawing(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
