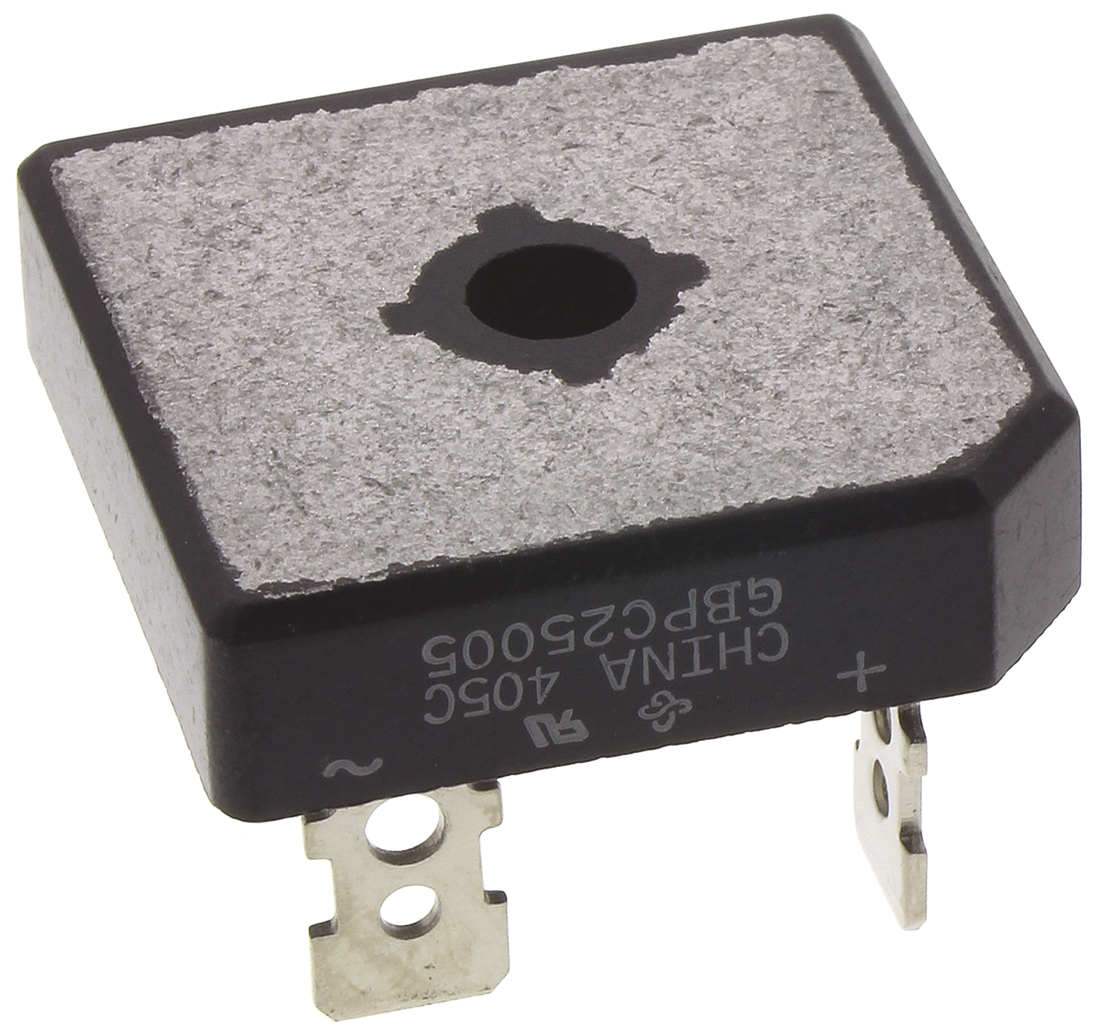

Vishay GBPC25005-E4, Bridge Rectifier, 25A 50V, 4-Pin GBPC

GBPC25005-E4 Vishay , Bridge Rectifier, 25A 50V, 4-Pin GBPC
GBPC25005-E4
Vishay

Product Information

Peak Reverse Current:
5µA
Dimensions:
28.8 x 28.8 x 7.62mm
Bridge Type:
Single Phase
Diode Technology:
Silicon Junction
Peak Average Forward Current:
25A
Peak Non-Repetitive Forward Surge Current:
300A
Height:
7.62mm
Peak Forward Voltage:
1.1V
Width:
28.8mm
Length:
28.8mm
Package Type:
GBPC
Peak Reverse Repetitive Voltage:
50V
Minimum Operating Temperature:
-55 °C
Mounting Type:
Screw Mount
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
4
RoHs Compliant
Checking for live stock

This is Bridge Rectifier 25A 50V 4-Pin GBPC manufactured by Vishay. The manufacturer part number is GBPC25005-E4. It has a typical 5µa peak reverse current . The given dimensions of the product include 28.8 x 28.8 x 7.62mm. It contains a/an single phase type bridge . The product utilizes silicon junction diode technology. Additionally, it has about 25a of peak average forward current . Moreover, a bespoke product has 300a peak non-repetitive forward surge current. In addition, the height is 7.62mm. Whereas, the peak forward voltage is about 1.1v . Furthermore, the product is 28.8mm wide. Its accurate length is 28.8mm. The package is a sort of gbpc. While having the peak reverse repetitive 50v. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in screw mount configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 4 pins.
