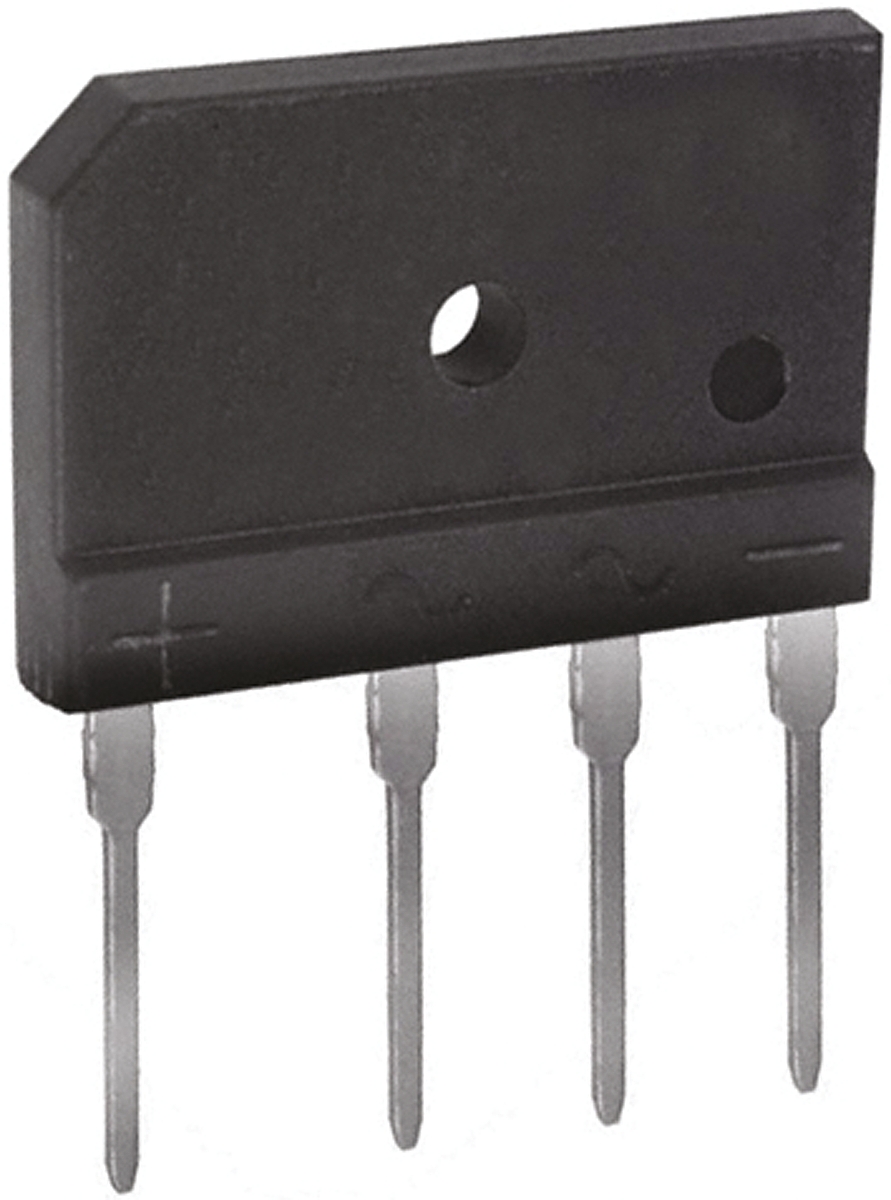

Diodes Inc GBJ1508-F, Bridge Rectifier, 15A 800V, 4-Pin GBJ

GBJ1508-F Diodes Inc , Bridge Rectifier, 15A 800V, 4-Pin GBJ
DiodesZetex

Product Information

Peak Reverse Current:
500µA
Dimensions:
30.3 x 4.8 x 20.3mm
Bridge Type:
Single Phase
Diode Technology:
Silicon Junction
Peak Average Forward Current:
15A
Peak Non-Repetitive Forward Surge Current:
240A
Height:
20.3mm
Peak Forward Voltage:
1.05V
Width:
4.8mm
Length:
30.3mm
Package Type:
GBJ
Peak Reverse Repetitive Voltage:
800V
Minimum Operating Temperature:
-65 °C
Mounting Type:
Through Hole
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
4
RoHs Compliant
Checking for live stock

This is Diodes Inc Bridge Rectifier 15A 800V 4-Pin GBJ manufactured by DiodesZetex. The manufacturer part number is GBJ1508-F. It has a typical 500µa peak reverse current . The given dimensions of the product include 30.3 x 4.8 x 20.3mm. It contains a/an single phase type bridge . The product utilizes silicon junction diode technology. Additionally, it has about 15a of peak average forward current . Moreover, a bespoke product has 240a peak non-repetitive forward surge current. In addition, the height is 20.3mm. Whereas, the peak forward voltage is about 1.05v . Furthermore, the product is 4.8mm wide. Its accurate length is 30.3mm. The package is a sort of gbj. While having the peak reverse repetitive 800v. Whereas, the minimum operating temperature of the product is -65 °c. The product is available in through hole configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 4 pins.

pdf icon
Datasheet - GBJ15(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
