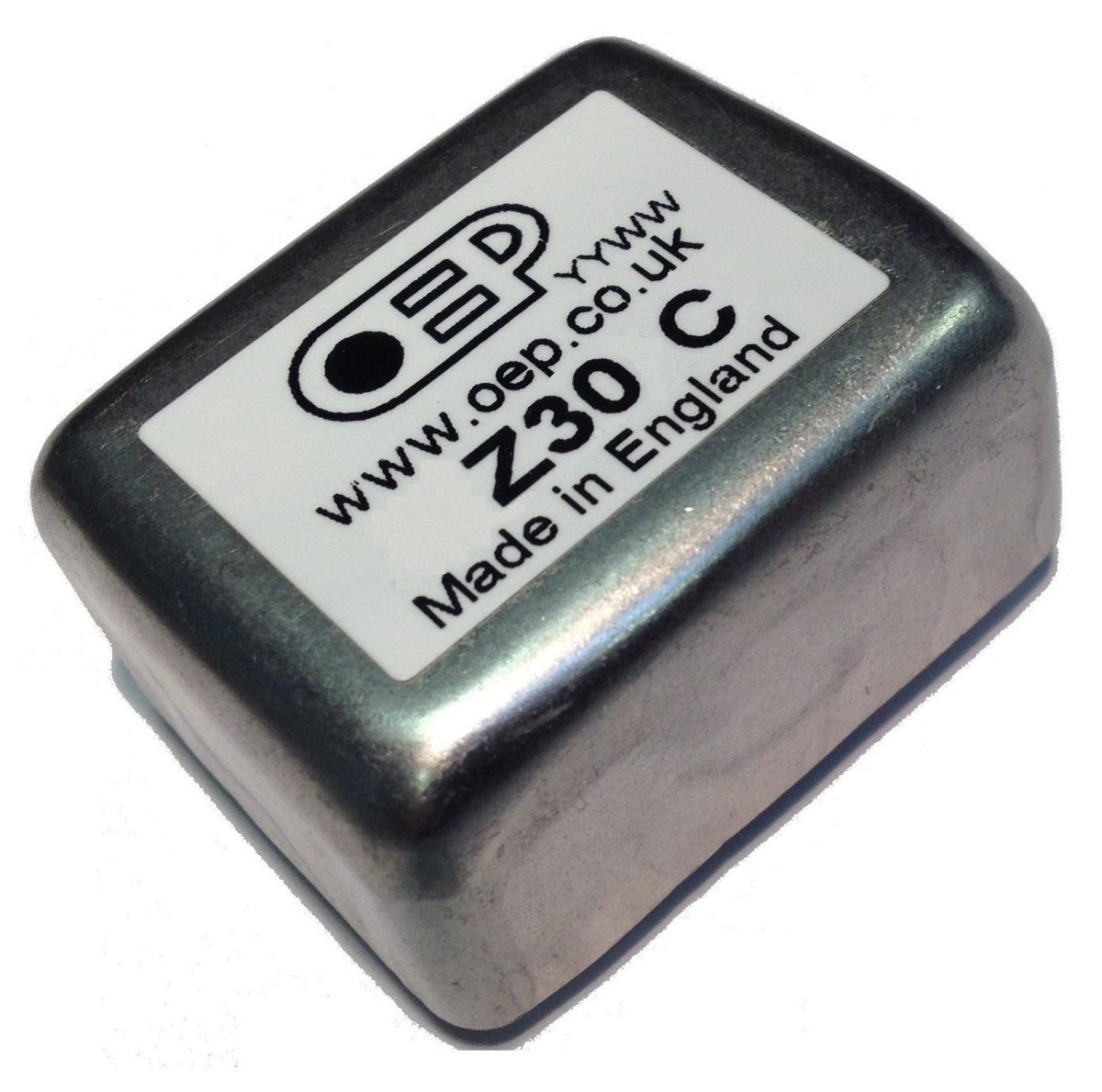

Line Input Transformer 150 Ω/2400 Ω, 1+1:2+2

  • Enrgtech Part No: ET16824062
  • |
  • Manufacturer Part No:

    Z30A11C

  • |
  • Manufacturer: OEP
Z30A11C Line Input Transformer 150 Ω/2400 Ω, 1+1:2+2
OEP

Product Information

Primary DC Resistance:
15 (Primary 1) Ω, 15 (Primary 2) Ω
Isolation Voltage:
2000V
Dimensions:
36 x 30 x 16mm
Weight:
57g
Maximum Temperature:
+70°C
Minimum Temperature:
-20°C
Primary Impedance:
150 Ω, 600 Ω
Length:
36mm
Maximum Operating Frequency:
35kHz
Width:
30mm
Depth:
16mm
Construction:
Enclosed
Minimum Operating Frequency:
20Hz
Turns Ratio:
1+1:2+2
Mounting Type:
Through Hole
Termination Type:
PC Pin
Secondary Impedance:
2.4 kΩ, 600 Ω
Core Type:
Laminated
Secondary DC Resistance:
74.2 (Secondary 1 and 2)Ω
RoHs Compliant
Checking for live stock

This is Line Input Transformer 150 Ω/2400 Ω 1+1:2+2 manufactured by OEP. The manufacturer part number is Z30A11C. Additionally, it has 15 (primary 1) ω, 15 (primary 2) ω primary DC resistance . It has 2000v isolation voltage. The given dimensions of the product include 36 x 30 x 16mm. The typical product's weight is 57g. The product has +70°c maximum temperature. While its minimum temperature is -20°c. It has about 150 ω, 600 ω primary impedance . Its accurate length is 36mm. It carries 35khz of maximum operating frequency. Furthermore, the product is 30mm wide. The product comes in 16mm depth. The product has been well-designed with enclosed construction. It has a minimum 20hz operating frequency . It has 1+1:2+2 turns ratio . The product is available in through hole configuration. The product is designed with a pc pin termination. Its secondary impedance is about 2.4 kω, 600 ω . Robust product with a laminated core. It has about 74.2 (secondary 1 and 2)ω secondary DC resistance .

pdf icon
OEP Line Input Transformer 150R/2K4 1+1:2+2 Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search Z30A11C on website for other similar products.
We accept all major payment methods for all products including ET16824062. Please check your shopping cart at the time of order.
You can order OEP brand products with Z30A11C directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Audio Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Line Input Transformer 150 Ω/2400 Ω, 1+1:2+2. You can also check on our website or by contacting our customer support team for further order details on Line Input Transformer 150 Ω/2400 Ω, 1+1:2+2.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16824062 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "OEP" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16824062.
Yes. We ship Z30A11C Internationally to many countries around the world.
