Through Hole Audio Transformer 300Ω 2mW

  • Enrgtech Part No: ET16805529
  • |
  • Manufacturer Part No:

    Z1677E

  • |
  • Manufacturer: OEP

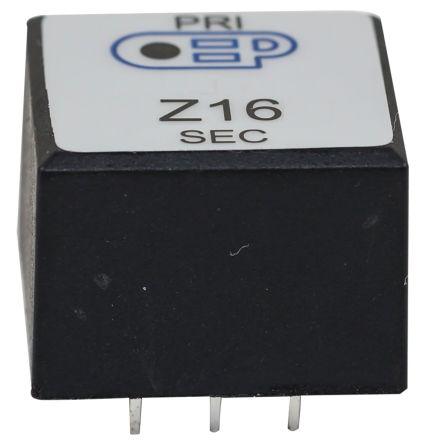

Z1677E Through Hole Audio Transformer 300Ω 2mW
Z1677E Through Hole Audio Transformer 300Ω 2mW
OEP

Product Information

Primary DC Resistance:
15.6Ω
Isolation Voltage:
1000V
Dimensions:
18 x 18 x 15mm
Weight:
14g
Maximum Temperature:
+75°C
Minimum Temperature:
-20°C
Primary Impedance:
75Ω
Length:
18mm
Maximum Operating Frequency:
20kHz
Width:
18mm
Depth:
15mm
Construction:
Enclosed
Minimum Operating Frequency:
40Hz
Turns Ratio:
1:2 C.T
Mounting Type:
Through Hole
Power Rating:
2mW
Termination Type:
PC Pin
Secondary Impedance:
300Ω
Core Type:
Laminated
Secondary DC Resistance:
53.6Ω
RoHs Compliant
Pre-order available

Ask for lead time

Quantity
Unit Price (ex VAT)
Price
Mfr Part No:
Z1677E
Seller:
OEP
Origin:
Warranty:
Manufacturer
Data Code:
ET16805529
Order Today!
From: United Kingdom

This is Through Hole Audio Transformer 300Ω 2mW manufactured by OEP. The manufacturer part number is Z1677E. Additionally, it has 15.6ω primary DC resistance . It has 1000v isolation voltage. The given dimensions of the product include 18 x 18 x 15mm. The typical product's weight is 14g. The product has +75°c maximum temperature. While its minimum temperature is -20°c. It has about 75ω primary impedance . Its accurate length is 18mm. It carries 20khz of maximum operating frequency. Furthermore, the product is 18mm wide. The product comes in 15mm depth. The product has been well-designed with enclosed construction. It has a minimum 40hz operating frequency . It has 1:2 c.t turns ratio . The product is available in through hole configuration. Feature 2mw of power rating. The product is designed with a pc pin termination. Its secondary impedance is about 300ω . Robust product with a laminated core. It has about 53.6ω secondary DC resistance .

pdf icon
OEP 2mW Line Input Transformer 1:2 CT 75R Datasheet(Technical Reference)
