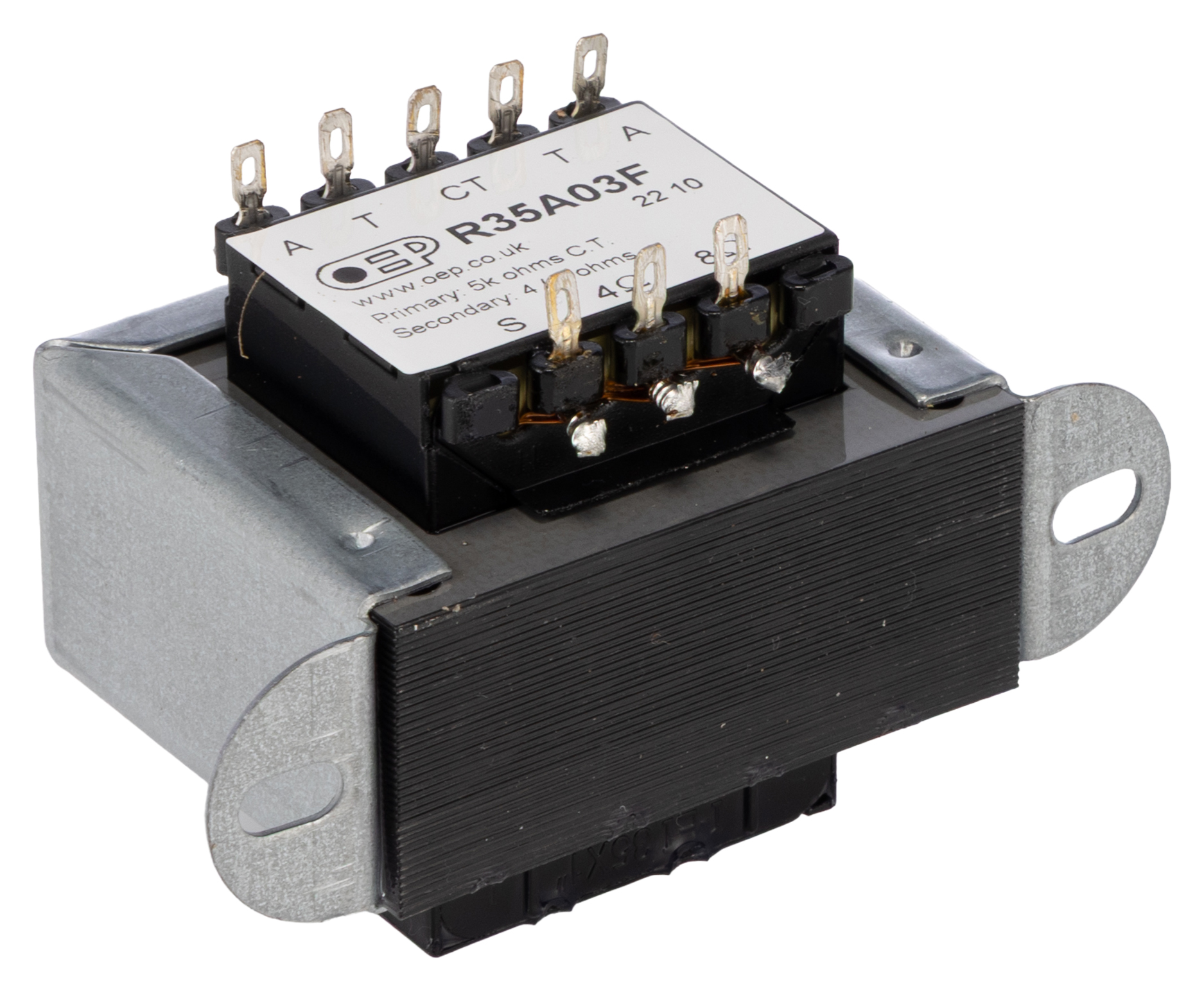

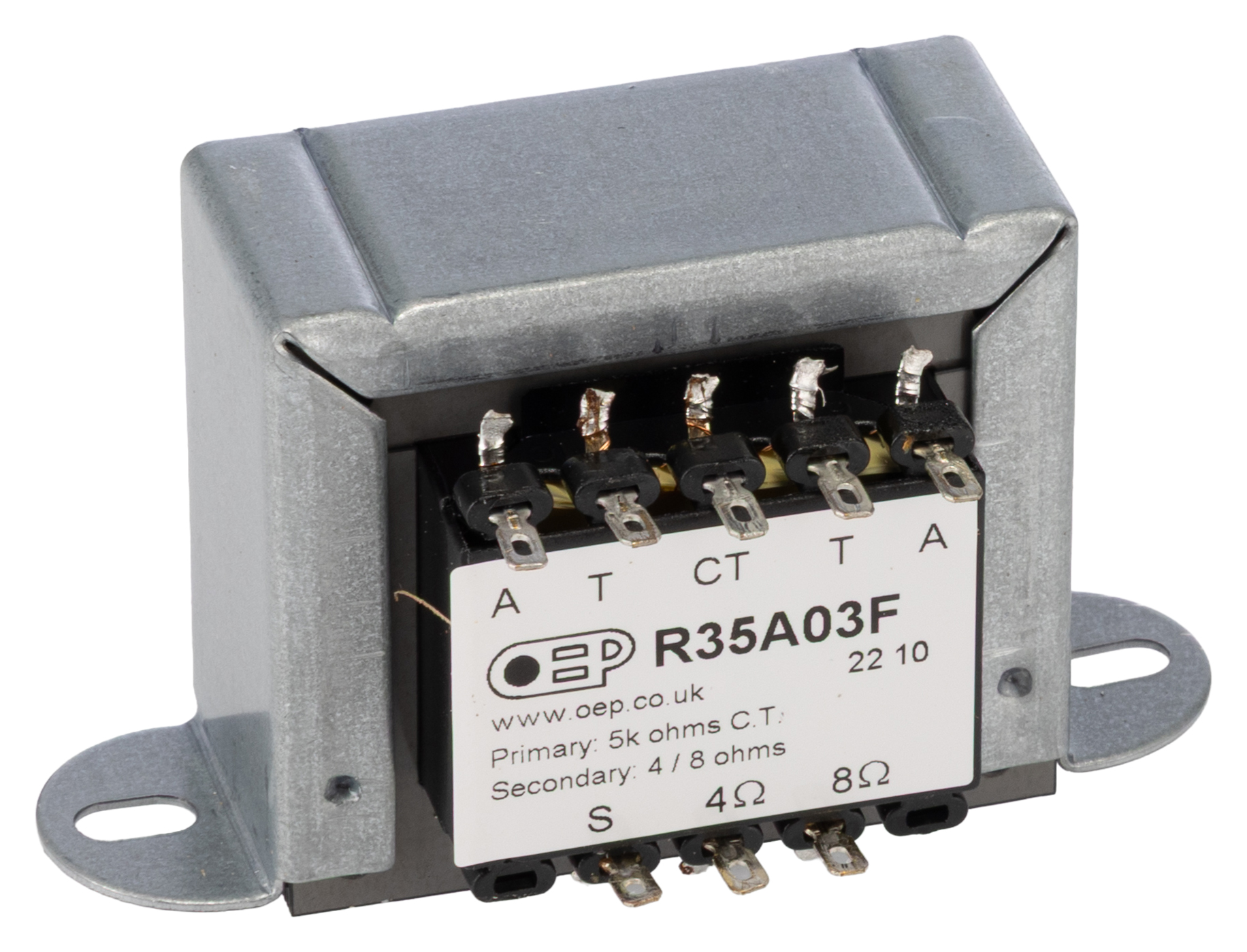

5kΩ:4Ω/8Ω, 12W, Push-Pull Transformer for Valve Amplifier

  • Enrgtech Part No: ET16805522
  • |
  • Manufacturer Part No:

    R35A03F

  • |
  • Manufacturer: OEP
R35A03F 5kΩ:4Ω/8Ω, 12W, Push-Pull Transformer for Valve Amplifier
OEP

Product Information

Primary DC Resistance:
320Ω
Isolation Voltage:
2000V
Dimensions:
87.3 x 52 x 49.5mm
Weight:
465g
Maximum Temperature:
+60°C
Minimum Temperature:
-20°C
Primary Impedance:
5kΩ
Length:
87.3mm
Maximum Operating Frequency:
20kHz
Width:
52mm
Depth:
49.5mm
Construction:
Open Frame
Minimum Operating Frequency:
50Hz
Termination Type:
Solder
Mounting Type:
Panel Mount
Power Rating:
12W
Secondary Impedance:
4 Ω, 8 Ω
Core Type:
Laminated
Secondary DC Resistance:
750mΩ
RoHs Compliant
Checking for live stock

This is 5kΩ:4Ω/8Ω 12W Push-Pull Transformer for Valve Amplifier manufactured by OEP. The manufacturer part number is R35A03F. Additionally, it has 320ω primary DC resistance . It has 2000v isolation voltage. The given dimensions of the product include 87.3 x 52 x 49.5mm. The typical product's weight is 465g. The product has +60°c maximum temperature. While its minimum temperature is -20°c. It has about 5kω primary impedance . Its accurate length is 87.3mm. It carries 20khz of maximum operating frequency. Furthermore, the product is 52mm wide. The product comes in 49.5mm depth. The product has been well-designed with open frame construction. It has a minimum 50hz operating frequency . The product is designed with a solder termination. The product is available in panel mount configuration. Feature 12w of power rating. Its secondary impedance is about 4 ω, 8 ω . Robust product with a laminated core. It has about 750mω secondary DC resistance .
