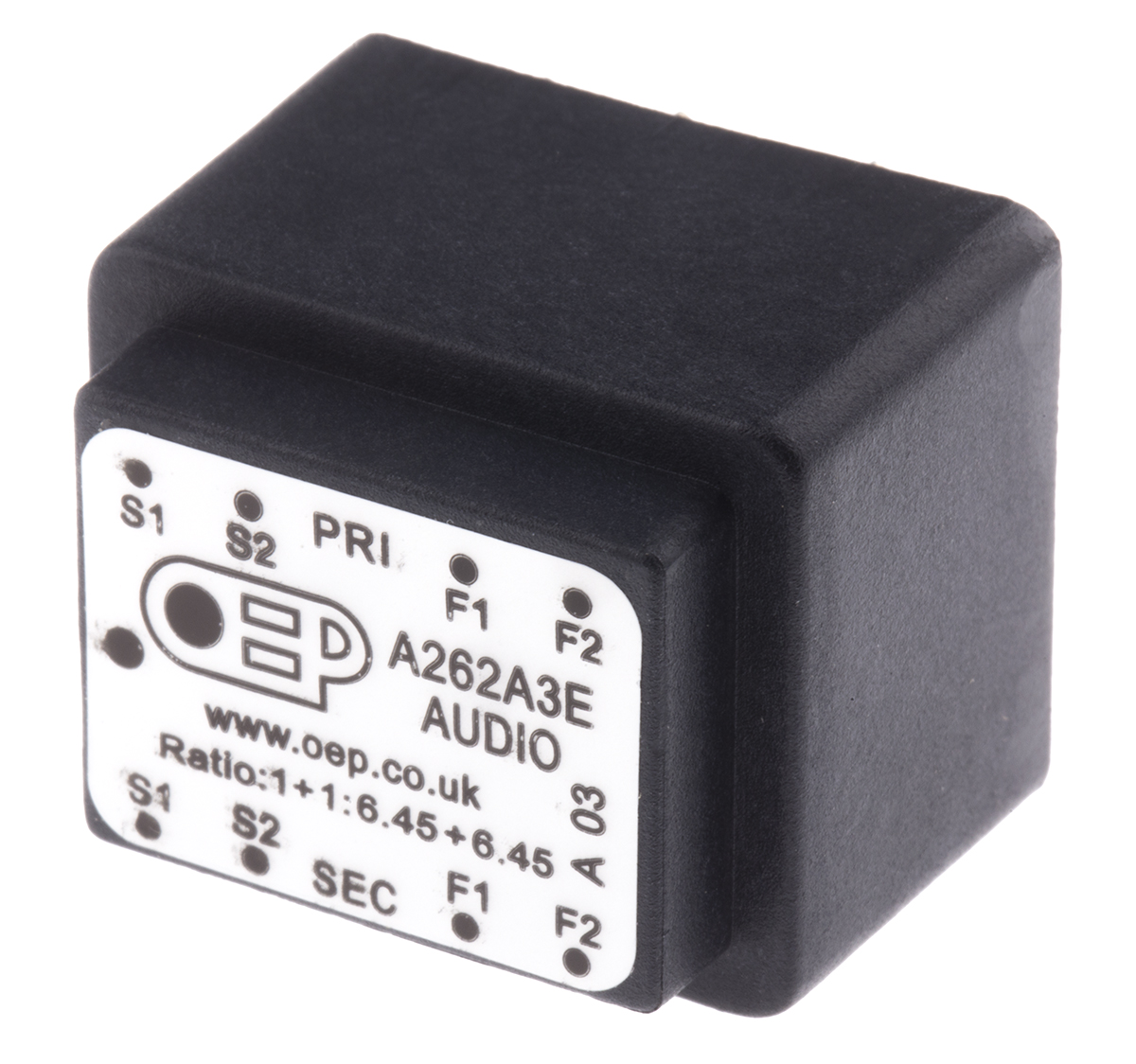

Through Hole Audio Transformer 600Ω 100mW Hz @ 300, 1mW Hz @ 30

A262A3E Through Hole Audio Transformer 600Ω 100mW Hz @ 300, 1mW Hz @ 30
A262A3E
OEP

Product Information

Primary DC Resistance:
20.6Ω
Maximum Temperature:
+70°C
Dimensions:
28 x 22 x 23.2mm
Mounting Type:
Through Hole
Minimum Temperature:
0°C
Primary Impedance:
150Ω
Length:
28mm
Maximum Operating Frequency:
25kHz
Width:
22mm
Depth:
23.2mm
Minimum Operating Frequency:
30Hz
Turns Ratio:
1+1:6.45+6.45
Termination Type:
Pin
Power Rating:
100mW Hz @ 300, 1mW Hz @ 30
Secondary Impedance:
600Ω
Secondary DC Resistance:
1143Ω
RoHs Compliant
Checking for live stock

This is Through Hole Audio Transformer 600Ω 100mW Hz @ 300 1mW Hz @ 30 manufactured by OEP. The manufacturer part number is A262A3E. Additionally, it has 20.6ω primary DC resistance . The product has +70°c maximum temperature. The given dimensions of the product include 28 x 22 x 23.2mm. The product is available in through hole configuration. While its minimum temperature is 0°c. It has about 150ω primary impedance . Its accurate length is 28mm. It carries 25khz of maximum operating frequency. Furthermore, the product is 22mm wide. The product comes in 23.2mm depth. It has a minimum 30hz operating frequency . It has 1+1:6.45+6.45 turns ratio . The product is designed with a pin termination. Feature 100mw hz @ 300, 1mw hz @ 30 of power rating. Its secondary impedance is about 600ω . It has about 1143ω secondary DC resistance .
