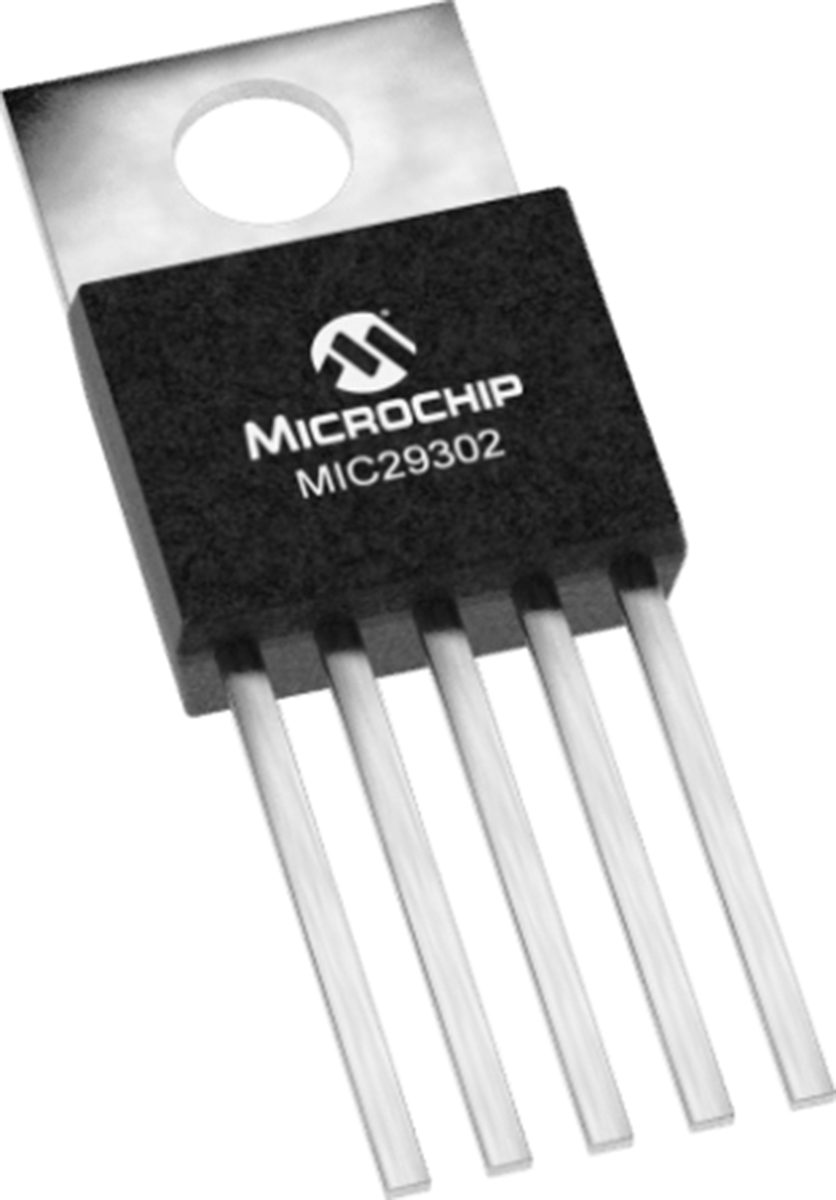

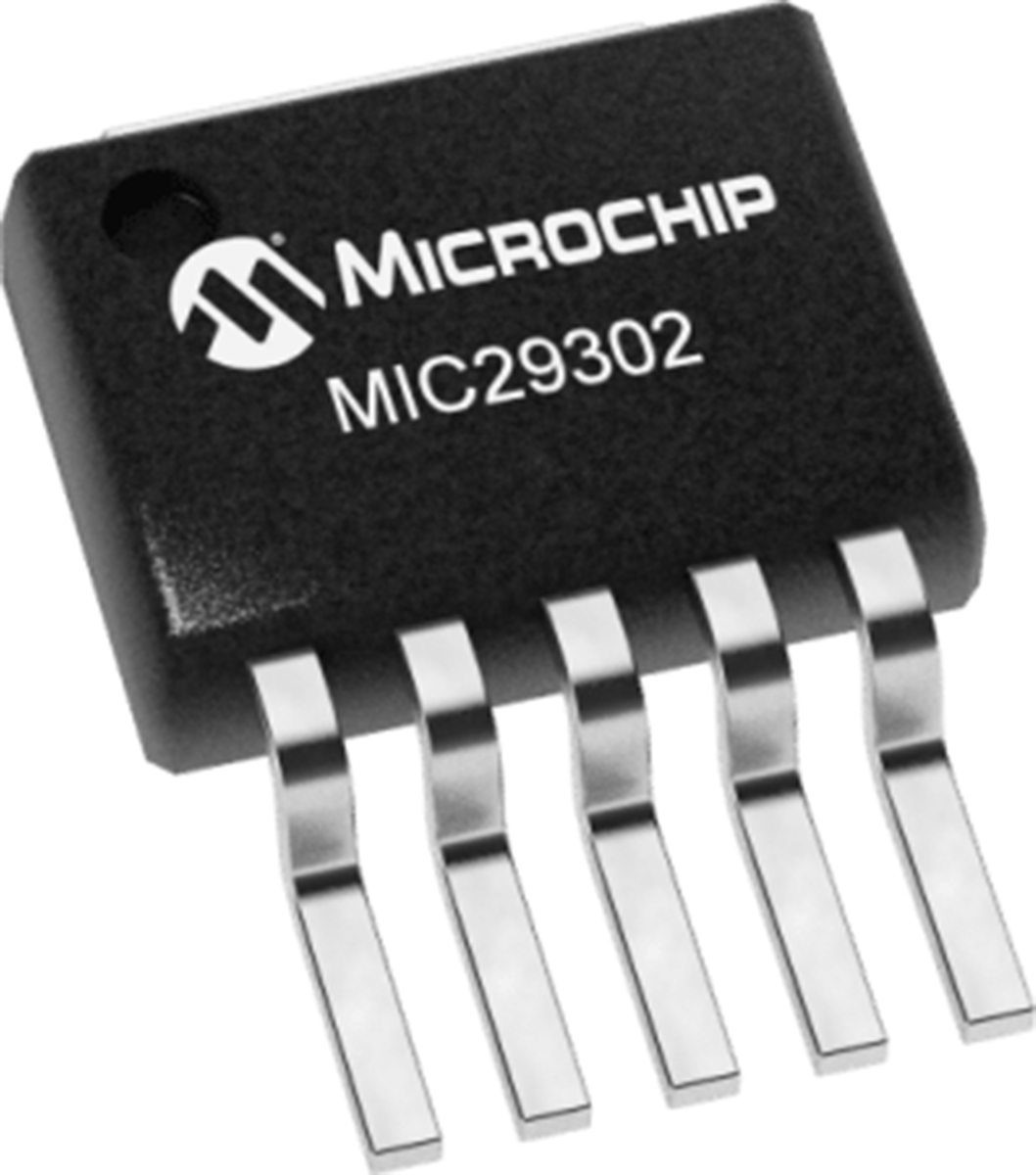

Microchip MIC29302AWD, LDO Regulator, 3A Adjustable, 1.24 → 15 V, ±2% 5-Pin, DPAK

MIC29302AWD Microchip , LDO Regulator, 3A Adjustable, 1.24 → 15 V, ±2% 5-Pin, DPAK
MIC29302AWD
Microchip

Product Information

Number of Outputs:
1
Load Regulation:
1 %
Maximum Operating Temperature:
+125 °C
Dimensions:
6.604 x 6.2 x 2.38mm
Mounting Type:
Surface Mount
Maximum Output Current:
3A
Line Regulation:
0.5 %
Regulator Type:
Low Dropout Voltage
Output Type:
Adjustable
Height:
2.38mm
Width:
6.2mm
Length:
6.6mm
Output Voltage:
1.24 → 15 V
Package Type:
TO-252
Minimum Operating Temperature:
-40 °C
Maximum Input Voltage:
16 V
Minimum Input Voltage:
3 V
Reference Voltage:
1.26V
Pin Count:
5
Accuracy:
±2%
RoHs Compliant
Checking for live stock

This is LDO Regulator 3A Adjustable 1.24 → 15 V ±2% 5-Pin DPAK manufactured by Microchip. The manufacturer part number is MIC29302AWD. Additionally, the product is supplied with 1 outputs. Load Regulation - 1 %. It has a maximum operating temperature of +125 °c. The given dimensions of the product include 6.604 x 6.2 x 2.38mm. The product is available in surface mount configuration. Featuring 3a of maximum output current. Has a line regulation of 0.5 %. The regulator is a type of low dropout voltage regulator. Furthermore, it has aadjustable output. In addition, the height is 2.38mm. Furthermore, the product is 6.2mm wide. Its accurate length is 6.6mm. Features a 1.24 → 15 v output voltage. The package is a sort of to-252. Whereas, the minimum operating temperature of the product is -40 °c. 16 v is the maximum voltage of the bespoke product. The product has 3 v of minimum input voltage. Its reference voltage is about 1.26v . It contains 5 pins. It provides high accuracy of ±2%.
