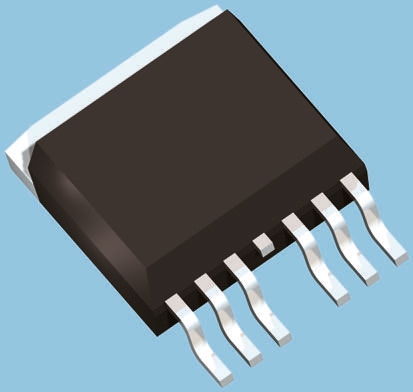

Linear Technology LT1528CQ#PBF, LDO Regulator, 3A, 3.3 V 5-Pin, D2PAK

LT1528CQ-PBF Linear Technology LT1528CQ#PBF, LDO Regulator, 3A, 3.3 V 5-Pin, D2PAK
Analog Devices

Product Information

Polarity:
Positive
Number of Outputs:
1
Load Regulation:
30 mV
Dimensions:
10.541 x 4.572 x 10.922mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Minimum Operating Temperature:
0 °C
Regulator Type:
Low Dropout Voltage
Output Type:
Fixed
Height:
10.922mm
Width:
4.572mm
Length:
10.54mm
Output Voltage:
3.3 V
Package Type:
D2PAK
Minimum Input Voltage:
-15 V
Maximum Input Voltage:
15 V
Quiescent Current:
400µA
Maximum Output Current:
3A
Pin Count:
5
Line Regulation:
1 mV
RoHs Compliant
Checking for live stock

This is Linear Technology LDO Regulator 3A 3.3 V 5-Pin D2PAK manufactured by Analog Devices. The manufacturer part number is LT1528CQ#PBF. While providing positive polarity. Additionally, the product is supplied with 1 outputs. Load Regulation - 30 mv. The given dimensions of the product include 10.541 x 4.572 x 10.922mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is 0 °c. The regulator is a type of low dropout voltage regulator. Furthermore, it has afixed output. In addition, the height is 10.922mm. Furthermore, the product is 4.572mm wide. Its accurate length is 10.54mm. Features a 3.3 v output voltage. The package is a sort of d2pak. The product has -15 v of minimum input voltage. 15 v is the maximum voltage of the bespoke product. Supplied with 400µa of quiescent current. Featuring 3a of maximum output current. It contains 5 pins. Has a line regulation of 1 mv.
