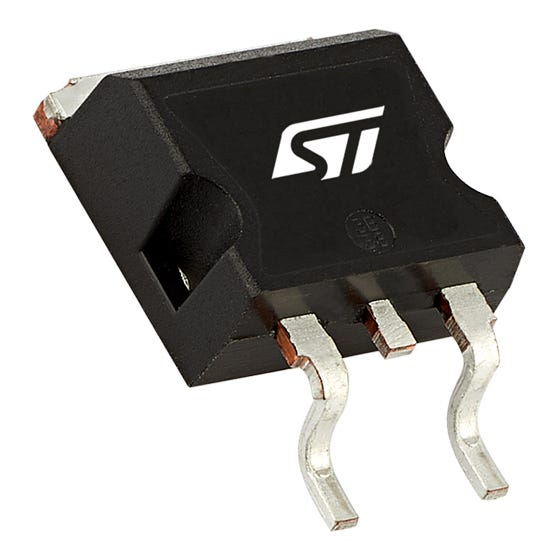

STMicroelectronics L7809CD2T-TR

L7809CD2T-TR STMicroelectronics
L7809CD2T-TR
L7809CD2T-TR
STMicroelectronics

Product Information

HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Voltage Dropout (Max):
2V @ 1A (Typ)
Operating Temperature:
0°C ~ 125°C
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Protection Features:
Over Temperature, Short Circuit
edacadModel:
L7809CD2T-TR Models
Voltage - Output (Min/Fixed):
9V
Number of Regulators:
1
REACH Status:
REACH Unaffected
Output Type:
Fixed
Current - Output:
1.5A
Voltage - Input (Max):
35V
edacadModelUrl:
/en/models/585700
Voltage - Output (Max):
-
Control Features:
-
Current - Quiescent (Iq):
8 mA
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
24 Weeks
Mounting Type:
Surface Mount
PSRR:
55dB (120Hz)
Series:
-
Supplier Device Package:
D2PAK
Output Configuration:
Positive
Base Product Number:
L7809
ECCN:
EAR99
Number of Outputs:
1
Load Regulation:
25 mV
Line Regulation:
50 mV
Regulator Type:
Low Dropout Voltage
Output Voltage:
5 → 24 V
Package Type:
D2PAK
Regulator Function:
LDO
Maximum Output Current:
1.5A
Pin Count:
3
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is L7809CD2T-TR. Additionally, the product is supplied with 1 outputs. Load Regulation - 25 mv. Has a line regulation of 50 mv. The regulator is a type of low dropout voltage regulator. Features a 5 → 24 v output voltage. The package is a sort of d2pak. It has a/an ldo function regulator . Featuring 1.5a of maximum output current. It contains 3 pins. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product's maximum voltage dropout is 2v @ 1a (typ). The product has 0°c ~ 125°c operating temperature range. Moreover, the product comes in to-263-3, d²pak (2 leads + tab), to-263ab. It provides robust protection features, such as over temperature, short circuit. The minimum or fixed output voltage include 9v. Equipped with [Number of Regulator] regulator(s). In addition, it is reach unaffected. Furthermore, it has afixed output. While, the output current includes 1.5a. Its maximum input voltage is 35v. Current - Quiescent of 8 ma. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 24 weeks standard lead time. The product is available in surface mount configuration. Additionally, 55db (120hz) is the given PSSR of the product. d2pak is the supplier device package value. It boasts positive output configuration. Moreover, it corresponds to l7809, a base product number of the product. The product is designated with the ear99 code number.
