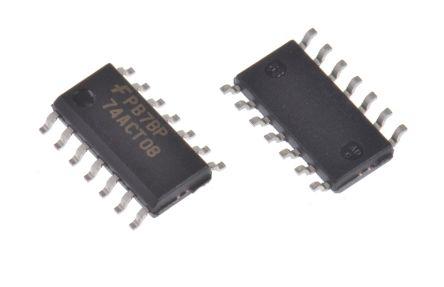

Fairchild Semiconductor 74ACT08SCX, Quad 2-Input AND Logic Gate, 4.5 → 5.5 V, 14-Pin SOIC

74ACT08SCX Fairchild Semiconductor , Quad 2-Input AND Logic Gate, 4.5 → 5.5 V, 14-Pin SOIC
74ACT08SCX
Fairchild Semiconductor

Product Information

Dimensions:
8.75 x 4 x 1.5mm
Logic Family:
ACT
Width:
4mm
Input Type:
TTL
Maximum Low Level Output Current:
24mA
Maximum High Level Output Current:
-24mA
Maximum Propagation Delay Time @ Maximum CL:
10ns
Minimum Operating Supply Voltage:
4.5 V
Output Type:
CMOS
Package Type:
SOIC
Maximum Operating Temperature:
+85 °C
Number of Inputs per Gate:
2
Length:
8.75mm
Pin Count:
14
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
AND
Height:
1.5mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Number of Elements:
4
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Quad 2-Input AND Logic Gate 4.5 → 5.5 V 14-Pin SOIC manufactured by Fairchild Semiconductor. The manufacturer part number is 74ACT08SCX. The given dimensions of the product include 8.75 x 4 x 1.5mm. The logic family is act. Furthermore, the product is 4mm wide. It carries ttl input type. On the other hand, it is featured with 24ma of max. low level output current. While a -24ma of maximum high level output current. It provides up to 10ns maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. Furthermore, it has acmos output. The package is a sort of soic. It has a maximum operating temperature of +85 °c. It contains 2 inputs per gate . Its accurate length is 8.75mm. It contains 14 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes and. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It carries 4 elements. Features 50pf of propagation delay test condition.
