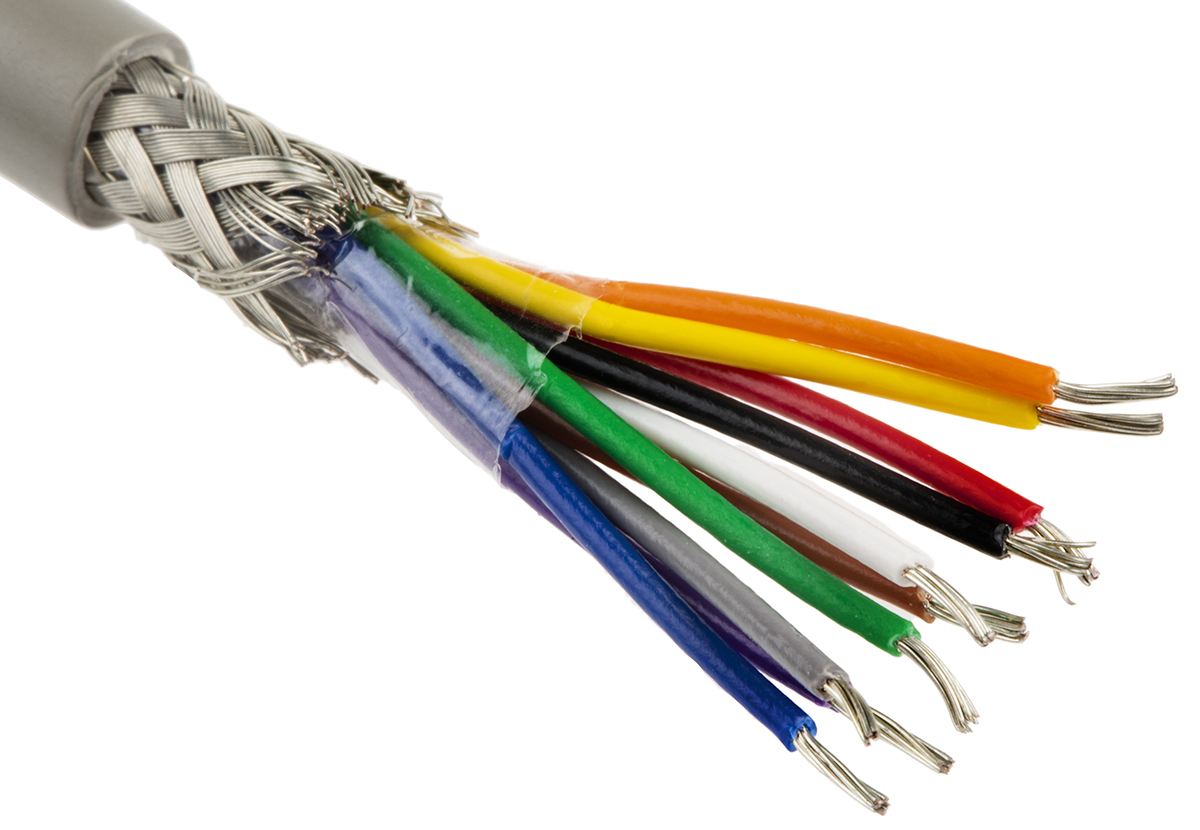

Alpha Wire 10 Core Industrial Cable 0.23 mm² CSA, Screened Grey PVC Sheath, 50m Reel

B953103-GE321 Alpha Wire 10 Core Industrial Cable 0.23 mm² CSA, Screened Grey PVC Sheath, 50m Reel
B953103 GE321
B953103 GE321
ET14121829
Alpha Wire

Product Information

American Wire Gauge:
24 AWG
Standards Met:
CE, CSA Certified, UL
Cable Shape:
Multicore
Minimum Operating Temperature:
-30°C
Series:
ProTekt
Shield Type:
Foil
Fire Behaviour:
Flame Retardant
Core Strands:
7/0.20 mm
Sheath Colour:
Grey
Length:
50m
Screened/Unscreened:
Screened
Cross Sectional Area:
0.23 mm²
Outer Sheath Material:
PVC
Number of Cores:
10
Voltage Rating:
300 V
Maximum Operating Temperature:
+105°C
Outer Diameter:
6.73mm
Shielded/Unshielded:
Shielded
Ratings:
UL Style 2464
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Conductor Strand:
7/32
Operating Temperature:
-30°C ~ 105°C
Usage:
-
Number of Conductors:
10
REACH Status:
REACH Unaffected
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Package:
Spool
Wire Gauge:
24 AWG
Shield Type:
Braid
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
164.0' (50.0m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
5 Weeks
Shield Coverage:
70%
Features:
Oil Resistant, Rip Cord, UV Resistant
Jacket (Insulation) Diameter:
0.265" (6.73mm)
Conductor Material:
Copper, Tinned
Series:
Pro-Tekt™
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Copper, Tinned
ECCN:
EAR99
Base Product Number:
B953103
Jacket Color:
Gray
RoHs Compliant
Checking for live stock

This is 10 Core Industrial Cable 0.23 mm² CSA Screened Grey PVC Sheath 50m Reel manufactured by Alpha Wire. The manufacturer part number is B953103 GE321. Features 24 awg - American Wire Gauge. The product complies with all safety standards, such as ce, csa certified, ul. Moreover, this cable has a multicore shape. Whereas, the minimum operating temperature of the product is -30°c. The product protekt, is a highly preferred choice for users. The item is shielded with a foil. The product has a flame retardant fire behaviour. The core strands are 7/0.20 mm. The sheath has an adorable grey colour. Its accurate length is 50m. Screen Options - screened. The product has 0.23 mm² cross section area. Whereas the outer sheath is manufactured from pvc material. The product consists of 10 cores. Moreover, the product has a nominal 300 v voltage rating. It has a maximum operating temperature of +105°c. Its outer diameter is 6.73mm. Moreover, the product is shielded . It is rated with ul style 2464. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. It also features a 7/32 conductor strand. The product has -30°c ~ 105°c operating temperature range. It features 10 conductors. In addition, it is reach unaffected. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. It is shipped in spool package . Moreover, the product has a wire gauge of 24 awg. The item is shielded with a braid. Furthermore, the insulated jacket is a 0.0320" (0.813mm) thick. Its typical moisture sensitivity level is not applicable. Its accurate length is 164.0' (50.0m). The conductor offers excellent insulation due to poly-vinyl chloride (pvc) materials. It has a long 5 weeks standard lead time. It covers shielding capability up to 70%. The splendid features of the product include oil resistant, rip cord, uv resistant. The diameter of the jacket is 0.265" (6.73mm). The conductor is made from copper, tinned material. The product pro-tekt™, is a highly preferred choice for users. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is shielded with a robust copper, tinned shield materials. The product is designated with the ear99 code number. Moreover, it corresponds to b953103, a base product number of the product. It comes in nice gray colour.
