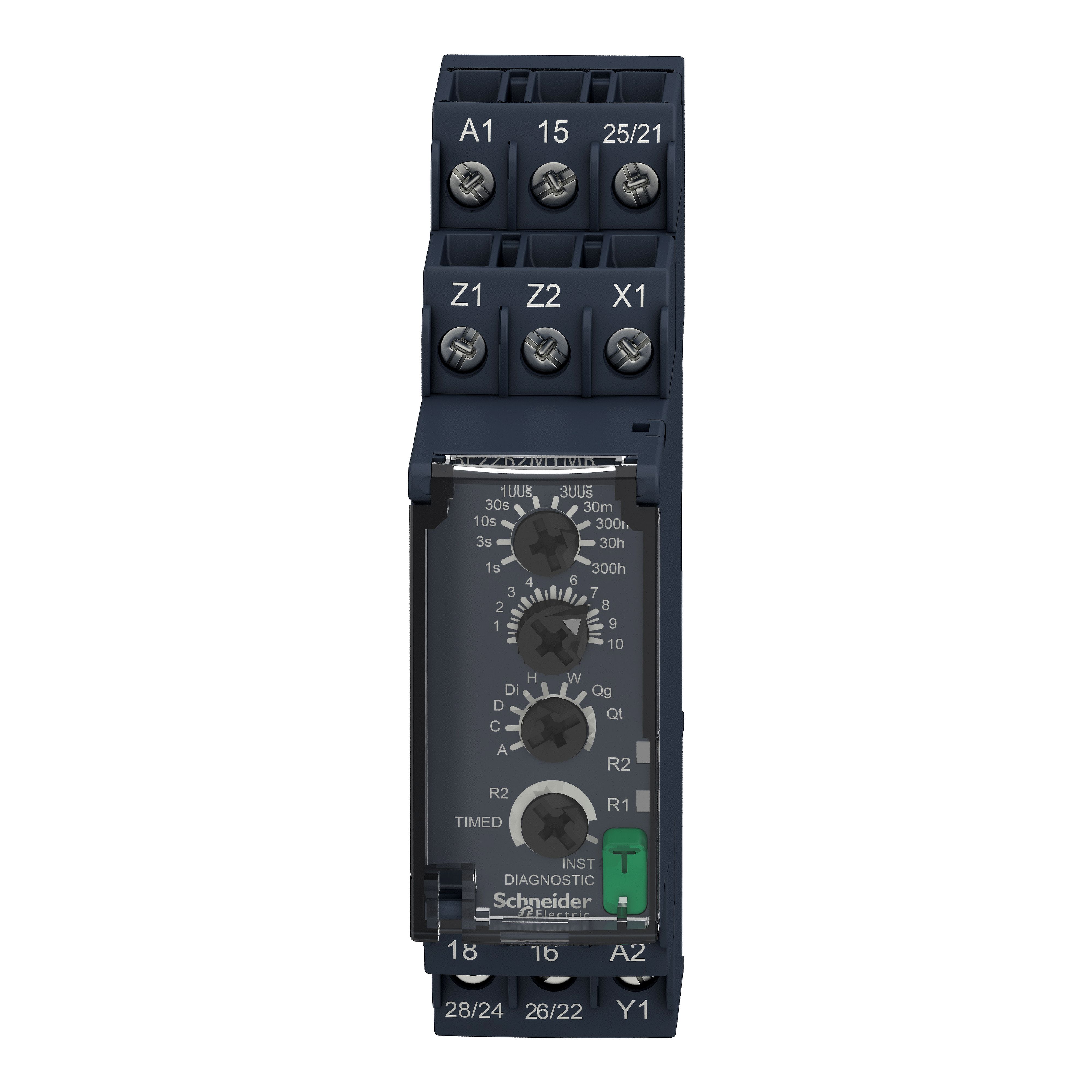

Schneider Electric Off Delay, On Delay Multi Function Timer Relay, Screw

Enrgtech Part No: ET16748416
|
Manufacturer Part No:
RE22R2MYMR
|
Manufacturer: Schneider Electric

RE22R2MYMR Schneider Electric Off Delay, On Delay Multi Function Timer Relay, Screw

Product Information

Number of Contacts:

Number of Timer Functions:

Multifunction

Supply AC Voltage:

240 V ac, 24 V ac

Series:

Harmony Time

Minimum Operating Temperature:

-20°C

Contact Configuration:

DPDT

Height:

79.5mm

Width:

90 mm

Length:

22.9mm

Better World Product:

Yes

Standards/Approvals:

RoHS

Supply DC Voltage:

240 V dc

Checking for live stock

The Schneider Electric RE22R2MYMR is a high-performance multifunction timer relay from the Harmony range. This 22.5mm slim device offers versatile timing solutions for automated industrial systems and building controls. It supports a wide timing range and multiple functions to reduce inventory needs. Featuring a diagnostic button, it allows for immediate downstream circuit testing. Its robust design and transparent sealable cover provide long-term reliability and protection against unauthorised adjustments.

Main Reasons to Use This Product

The slim design of this Schneider Electric RE22R2MYMR multifunction timer relay saves valuable space in control panels. Its multifunctional capability replaces several dedicated relays, reducing costs.

Wide timing range covers 0.05 seconds to 300 hours.
Universal supply voltage supports global application compatibility.

Special Features & Technical Specifications

Functions: 22 integrated timing functions, including On-Delay and Off-Delay.
Output: 2 C/O (DPDT) contacts with 8A rated current.
Supply Voltage: 24V to 240V AC/DC for flexible installation.
Control Type: Rotary knob trimmers and a diagnostic test button.

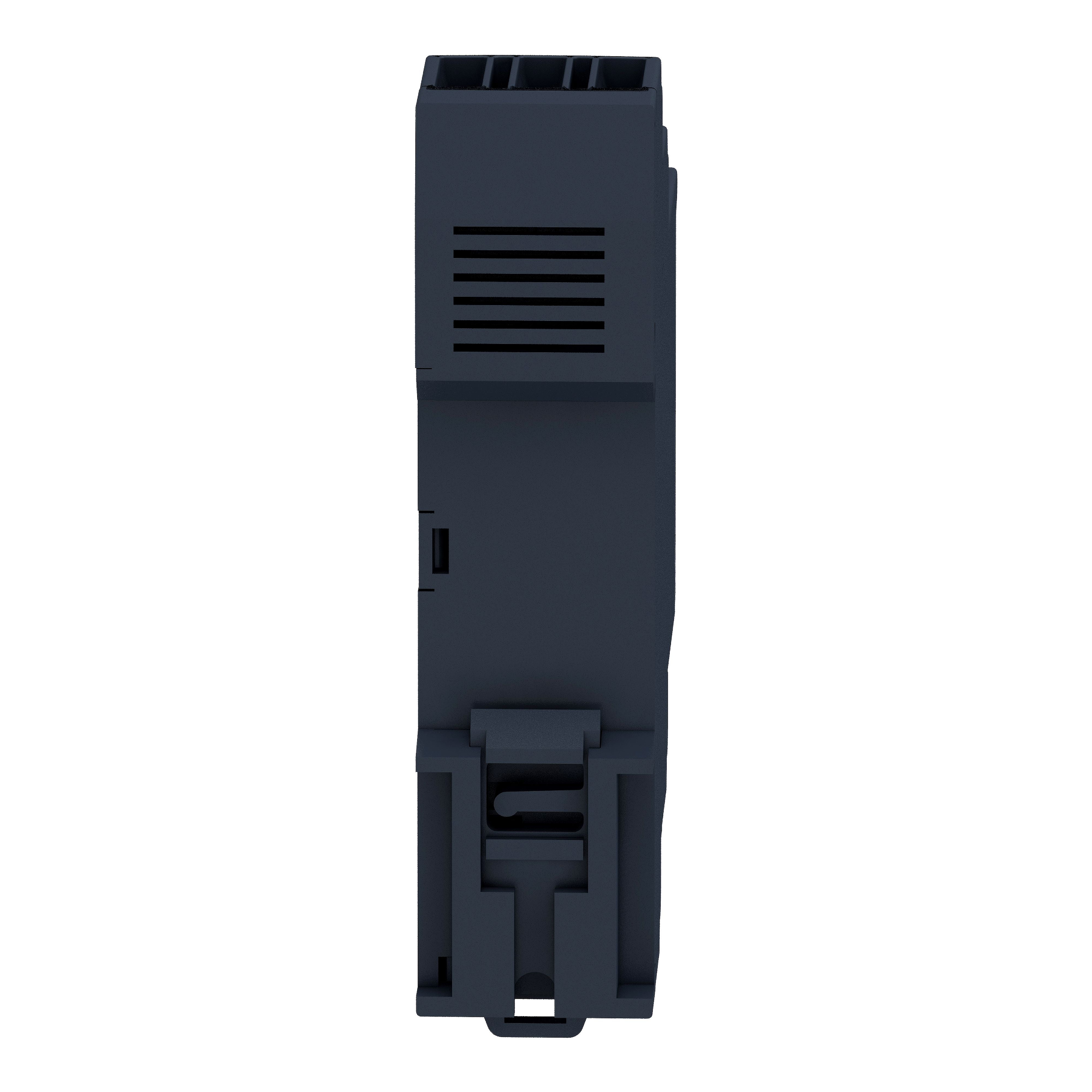

Mounting: Simple 35mm DIN rail mounting (IEC 60715).
Durability: 10,000,000 mechanical cycles for extended service life.

Zelio Selection Guide(Technical Reference)

Line Drawing - RE22R2MYMR(Technical Reference)

RE22 Series Product Guides(Technical Reference)

Product Environmental Profile(Technical Reference)

Datasheet(Technical Reference)

Instruction Sheet - RE22R2MYMR(Technical Reference)

Catalogue - Harmony Timer Relays(Technical Reference)

RE22R2MYMR(Datasheets)
