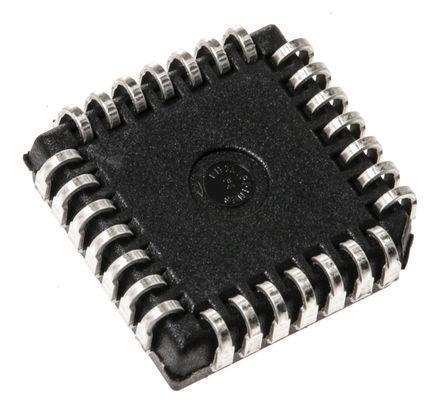

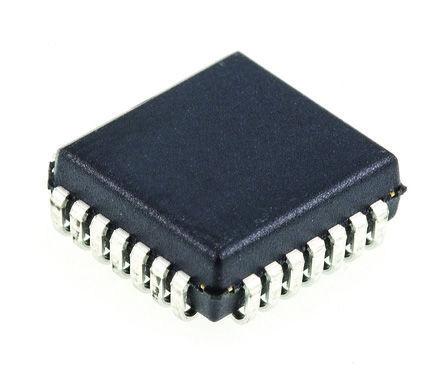

Renesas Electronics CS82C54-10Z, Programmable Timer 10MHz, 4.5 → 5.5 V, 28-Pin PLCC

Enrgtech Part No: ET16787902
|
Manufacturer Part No:
CS82C54-10Z
|
Manufacturer: Renesas Electronics

CS82C54-10Z Renesas Electronics , Programmable Timer 10MHz, 4.5 → 5.5 V, 28-Pin PLCC

Product Information

Maximum Low Level Output Current:

2.5mA

Timer Type:

Programmable

Dimensions:

11.58 x 11.58 x 3.69mm

Mounting Type:

Surface Mount

Maximum Propagation Delay Time @ Maximum CL:

100 ns @ 5 V

Minimum Operating Supply Voltage:

4.5 V

Height:

3.69mm

Number of Internal Timers:

Width:

11.58mm

Length:

11.58mm

Maximum Input Frequency:

10MHz

Package Type:

PLCC

Checking for live stock

This is Programmable Timer 10MHz 4.5 → 5.5 V 28-Pin PLCC manufactured by Renesas Electronics. The manufacturer part number is CS82C54-10Z. On the other hand, it is featured with 2.5ma of max. low level output current. It includes a/an programmable type timer . The given dimensions of the product include 11.58 x 11.58 x 3.69mm. The product is available in surface mount configuration. It provides up to 100 ns @ 5 v maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. In addition, the height is 3.69mm. Moreover, it has 1 internal timers included . Furthermore, the product is 11.58mm wide. Its accurate length is 11.58mm. The product has a maximum 10mhz input frequency . The package is a sort of plcc. Whereas, the minimum operating temperature of the product is 0 °c. It has 5.5 v maximum operating supply voltage. It has a maximum operating temperature of +70 °c. It contains 28 pins. While a -2.5ma of maximum high level output current.

82C54, CMOS Programmable Interval Timer(Technical Reference)
