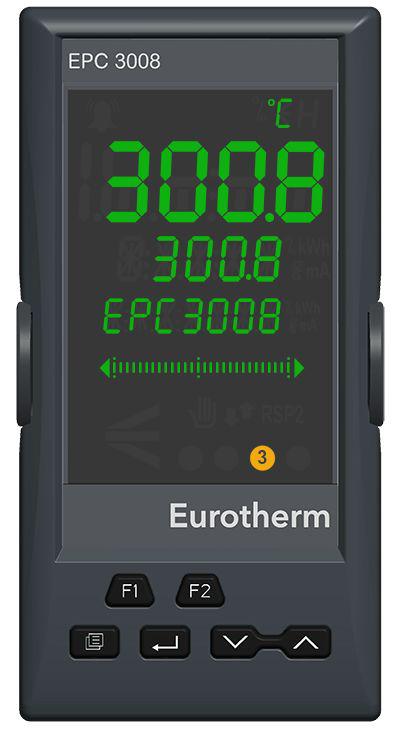

Eurotherm EPC3000 Panel Mount On/Off Temperature Controller, 92 x 45mm 1 Input, EPC3008/CC/VH/R2/X/X, 1 Output Form C Relay Output, 230 V

EPC3008-CC-VH-R2-X-X Eurotherm EPC3000 Panel Mount On/Off Temperature Controller, 92 x 45mm 1 Input, EPC3008/CC/VH/R2/X/X, 1 Output Form C Relay Output, 230 V
Eurotherm

Product Information

The Eurotherm EPC3000 is an advanced temperature controller that is widely used for devices, such as heaters, pumps, and motors with custom configuration for a large display for convenient and simple measurements in various industrial settings.



Control Type:
PID Controller
Display Type:
LCD
Number of Inputs:
1
Mounting Type:
Panel Mount
IP Rating:
IP65
Additional Functionality:
RS485
Series:
EPC3008
Panel Depth:
90mm
Output Type:
2 Relay
Range:
EPC3000
Communication Module Available:
Yes
Supply Voltage:
100 → 230 V ac
Input Type:
Current & Voltage, mV Input, Resistance Thermometer, Thermocouple
Temperature Range:
0 → +55 °C
Termination Type:
Screw
Maximum Operating Temperature:
+55°C
Minimum Operating Temperature:
0°C
Size:
48 x 96mm
RoHs Compliant
Checking for live stock

The Eurotherm EPC3000 range of panel mounted programmable single loop PID controllers aids optimization of production yield for thermal and other forms of processing. Designed with native, high speed Ethernet, and Achilles Level 1 certified for resilience against cyber-attack, the EPC3000 range is an ideal component for digitized Industry 4.0 and Industrial Internet of Things applications. Highly configurable, with precise, repeatable control and measurement performance, meeting accuracy specifications up to and including stringent aerospace regulatory requirements, the EPC3000 range remains simple to use and deploy. Enhanced Eurotherm PID control with cutback function for fast response and minimal overshoot Precision 0.1% Inputs meeting accuracy requirements of AMS2750 and CQI-9 Wireable function blocks including math, logic, and advanced control Up to 20 ramp/soak program profiles Factory Mutual (FM) approved temperature limit option available Fast Ethernet with RJ45 connector for IIoT and Industry 4.0 Modbus, Ethernet/IP and BACNet protocol support.

Typical Applications of Eurotherm EPC3000 Panel-Mount PID Controller:

The Eurotherm EPC3000 Panel Mount On/Off Temperature Controller is a compact and reliable device designed to provide precise and accurate temperature control in a variety of industrial applications. The EPC3000 features one input channel that can be configured to accept a variety of thermocouples, RTDs, and other temperature sensors. The controller also has one output channel, which is a Form relay output. This output can be used to control heating or cooling devices and provide accurate and reliable temperature control.

Features Eurotherm EPC3000 Panel-Mount PID Controller:

The EPC3000 operates on a 230 VAC supply voltage, making it suitable for use in most industrial settings. The device is easy to install and operate, with a clear and intuitive interface that allows users to quickly and easily set up and configure the controller to meet their specific needs.The controller measures 92 x 45mm and is designed to be panel-mounted, making it easy to integrate into existing equipment.

Other notable features of the EPC3000 include its advanced diagnostics and monitoring tools, which allow users to quickly identify and troubleshoot any issues that may arise. The device also features a range of configurable options, including setpoint limits and ramp/soak programs, which allow users to customize the controller to meet their specific temperature control needs.

Benefits:

The device is highly accurate and reliable, with a robust design that can withstand harsh operating conditions. It also features advanced tuning algorithms that allow it to automatically optimize its control parameters for maximum performance and stability.

pdf icon
Datasheet - EPC3008/CC/VH/R2/X/X(Technical Reference)
