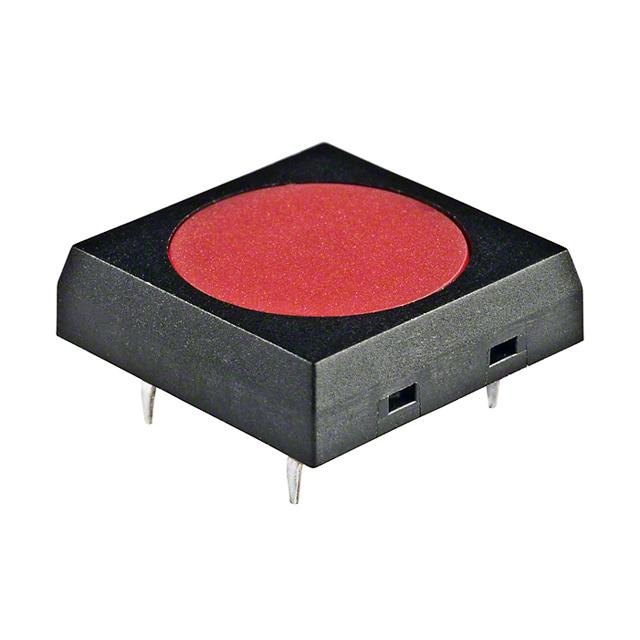

NKK Switches JF15SP2C

JF15SP2C NKK Switches
NKK Switches

Product Information

Operating Force:
300gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
5.08mm
Operating Temperature:
-25°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
JF15SP2C Models
edacadModelUrl:
/en/models/1052140
Illumination Type, Color:
-
Outline:
17.70mm x 17.70mm
Package:
Tray
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
JF
Switch Travel:
0.40mm
Actuator Type:
Round Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA), Nylon
Base Product Number:
JF15SP
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is JF15SP2C. It has a 300gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 5.08mm actuator vertical height off PCB. The product has -25°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 500,000 cycles. In addition, it is reach unaffected. The given outline of the product is 17.70mm x 17.70mm. It is shipped in tray package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 18 weeks standard lead time. The splendid features of the product include process sealed. The product is available in through hole configuration. The product jf, is a highly preferred choice for users. The product has a switching travel of 0.40mm. The product carries round button actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyamide (pa), nylon material. Moreover, it corresponds to jf15sp, a base product number of the product. The product is designated with the ear99 code number.
