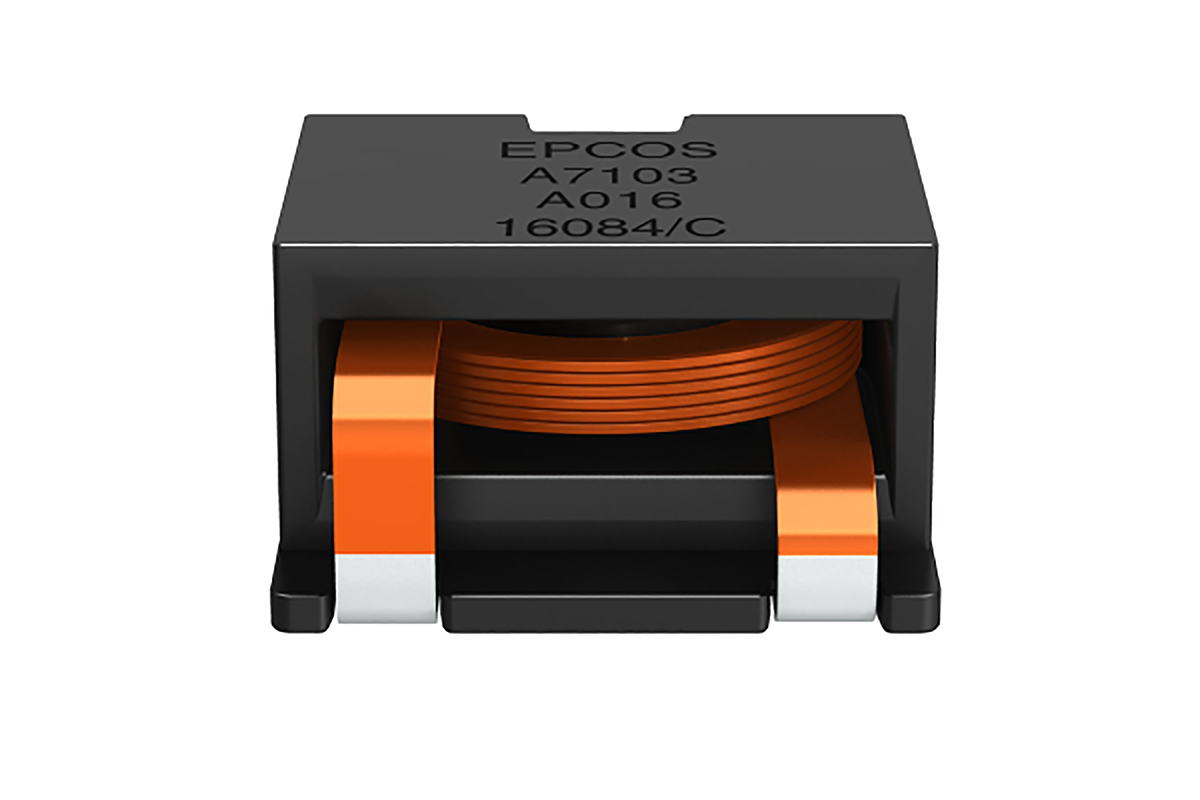

TDK, B82559A016, SMD Shielded Wire-wound SMD Inductor with a Ferrite Core, 20 μH ±10% Shielded 11.3A Idc

B82559A0203A016 TDK, B82559A016, SMD Shielded Wire-wound SMD Inductor with a Ferrite Core, 20 μH ±10% Shielded 11.3A Idc
EPCOS

Product Information

Automotive Standard:
AEC-Q200
Maximum DC Resistance:
13.25mΩ
Inductor Construction:
Shielded
Dimensions:
17.3 x 18.7 x 9.95mm
Shielded:
Yes
Series:
B82559_A016
Minimum Operating Temperature:
-40°C
Length:
17.3mm
Height:
9.95mm
Maximum DC Current:
11.3A
Depth:
18.7mm
Core Material:
Ferrite
Inductance:
20 μH
Maximum Self Resonant Frequency:
> 2MHz
Maximum Operating Temperature:
+150°C
Tolerance:
±10%
Package/Case:
SMD
RoHs Compliant
Checking for live stock

This is TDK B82559A016 SMD Shielded Wire-wound SMD Inductor with a Ferrite Core 20 μH ±10% Shielded 11.3A Idc manufactured by EPCOS. The manufacturer part number is B82559A0203A016. The product complies with automotive standard - aec-q200. It allows up to 13.25mω maximum DC resistance. The inductor is designed as shielded inductor. The given dimensions of the product include 17.3 x 18.7 x 9.95mm. Shielding Options yes. The product b82559_a016, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 17.3mm. In addition, the height is 9.95mm. While it carries 11.3a of maximum DC current. The product comes in 18.7mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 20 μh inductance value. It provides > 2mhz of maximum self-resonant frequency. It has a maximum operating temperature of +150°c. It features ±10% of tolerance value. Concerning its package and casing, it is smd.

pdf icon
Datasheet B82559A0203A016(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search B82559A0203A016 on website for other similar products.
We accept all major payment methods for all products including ET20007181. Please check your shopping cart at the time of order.
You can order EPCOS brand products with B82559A0203A016 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TDK, B82559A016, SMD Shielded Wire-wound SMD Inductor with a Ferrite Core, 20 μH ±10% Shielded 11.3A Idc. You can also check on our website or by contacting our customer support team for further order details on TDK, B82559A016, SMD Shielded Wire-wound SMD Inductor with a Ferrite Core, 20 μH ±10% Shielded 11.3A Idc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20007181 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "EPCOS" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20007181.
Yes. We ship B82559A0203A016 Internationally to many countries around the world.
