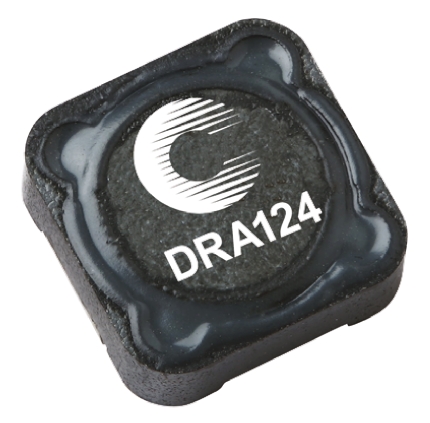

Cooper Bussmann DRA Series Type 124 Shielded Wire-wound SMD Inductor with a Ferrite Core, 820 μH ±20% Wire-Wound

Enrgtech Part No: ET14032529
|
Manufacturer Part No:
DRA124-821-R
|
Manufacturer: Cooper Bussmann

DRA124-821-R Cooper Bussmann DRA Series Type 124 Shielded Wire-wound SMD Inductor with a Ferrite Core, 820 μH ±20% Wire-Wound

Product Information

Maximum DC Resistance:

2.57Ω

Inductor Construction:

Wire-Wound

Dimensions:

12.5 x 12.5 x 4.5mm

Shielded:

Yes

Series:

DRA

Length:

12.5mm

Height:

4.5mm

Maximum DC Current:

697mA

Depth:

12.5mm

Core Material:

Ferrite

Inductance:

820 μH

Maximum Self Resonant Frequency:

100kHz

Checking for live stock

This is DRA Series Type 124 Shielded Wire-wound SMD Inductor with a Ferrite Core 820 μH ±20% Wire-Wound manufactured by Cooper Bussmann. The manufacturer part number is DRA124-821-R. It allows up to 2.57ω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 12.5 x 12.5 x 4.5mm. Shielding Options yes. The product dra, is a highly preferred choice for users. Its accurate length is 12.5mm. In addition, the height is 4.5mm. While it carries 697ma of maximum DC current. The product comes in 12.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 820 μh inductance value. It provides 100khz of maximum self-resonant frequency. It has a maximum operating temperature of +165°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 0124.

DRA Series High Power Density, High Efficiency, Shielded Inductors Data Sheet(Technical Reference)

SPICE Model(Technical Reference)

Transition to Bussmann Series(Technical Reference)

Your Rating

Reviews

Be the first to review.

Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search DRA124-821-R on website for other similar products.

We accept all major payment methods for all products including ET14032529. Please check your shopping cart at the time of order.

You can order Cooper Bussmann brand products with DRA124-821-R directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Cooper Bussmann DRA Series Type 124 Shielded Wire-wound SMD Inductor with a Ferrite Core, 820 μH ±20% Wire-Wound. You can also check on our website or by contacting our customer support team for further order details on Cooper Bussmann DRA Series Type 124 Shielded Wire-wound SMD Inductor with a Ferrite Core, 820 μH ±20% Wire-Wound.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET14032529 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Cooper Bussmann" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14032529.

Yes. We ship DRA124-821-R Internationally to many countries around the world.
