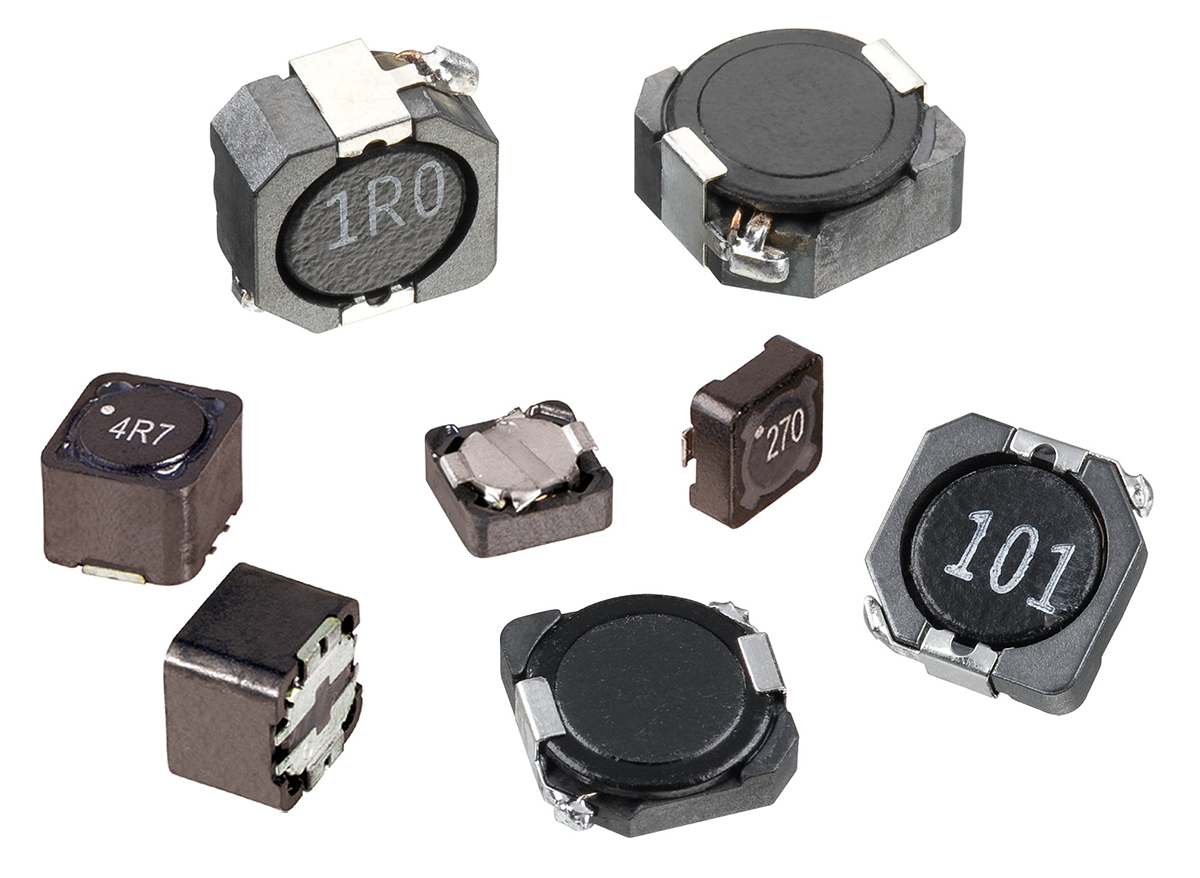

Wurth WE-PD Series Shielded Wire-wound SMD Inductor 100 μH ±20% 1.5A Idc

7447714101 Wurth WE-PD Series Shielded Wire-wound SMD Inductor 100 μH ±20% 1.5A Idc
Wurth Elektronik

Product Information

Maximum DC Resistance:
198mΩ
Inductor Construction:
Wire-Wound
Dimensions:
10 x 10 x 5mm
Shielded:
Yes
Series:
WE-PD
Length:
10mm
Height:
5mm
Maximum DC Current:
1.5A
Depth:
10mm
Inductance:
100 μH
Maximum Self Resonant Frequency:
5.9MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Package/Case:
1050
RoHs Compliant
Checking for live stock

This is Wurth WE-PD Series Shielded Wire-wound SMD Inductor 100 μH ±20% 1.5A Idc manufactured by Wurth Elektronik. The manufacturer part number is 7447714101. It allows up to 198mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 10 x 10 x 5mm. Shielding Options yes. The product we-pd, is a highly preferred choice for users. Its accurate length is 10mm. In addition, the height is 5mm. While it carries 1.5a of maximum DC current. The product comes in 10mm depth. The product has a 100 μh inductance value. It provides 5.9mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 1050.

pdf icon
7447714101 Data Sheet(Technical Reference)
pdf icon
High Power Wireless Power Transfer for the Industrial Environment - ANP032D Application Note(Technical Reference)
pdf icon
8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)
pdf icon
WE eiSos Embedded Flyer(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 7447714101 on website for other similar products.
We accept all major payment methods for all products including ET13809923. Please check your shopping cart at the time of order.
You can order Wurth Elektronik brand products with 7447714101 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Wurth WE-PD Series Shielded Wire-wound SMD Inductor 100 μH ±20% 1.5A Idc. You can also check on our website or by contacting our customer support team for further order details on Wurth WE-PD Series Shielded Wire-wound SMD Inductor 100 μH ±20% 1.5A Idc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13809923 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Wurth Elektronik" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13809923.
Yes. We ship 7447714101 Internationally to many countries around the world.
