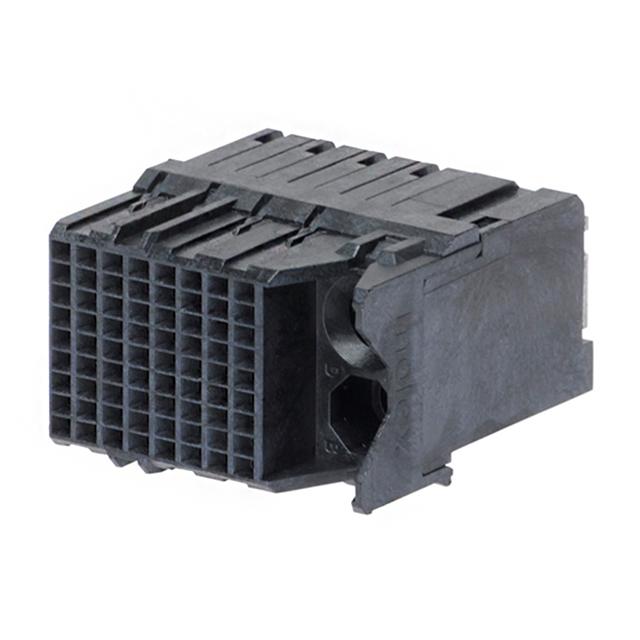

Molex 0761705036

0761705036 Molex
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Connector Style:
Impact, Guide Right
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
54
Connector Usage:
-
REACH Status:
REACH Unaffected
edacadModel:
0761705036 Models
Number of Rows:
9
edacadModelUrl:
/en/models/4554220
Manufacturer:
Molex
Number of Columns:
6
Contact Layout, Typical:
18 Differential Pairs
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Press-Fit
standardLeadTime:
11 Weeks
Features:
Board Guide
Mounting Type:
Board Edge, Through Hole, Right Angle
Color:
Black
Series:
Impact 76170
Packaging:
Tray
Pitch:
0.053" (1.35mm)
Number of Positions Loaded:
All
Base Product Number:
076170
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0761705036. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It comes in impact, guide right connector style. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 54. In addition, it is reach unaffected. It comes in 9 of rows. The molex's product offers user-desired applications. It has a sum of 6 columns. The typical contact layout includes 18 differential pairs. receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features press-fit termination style. It has a long 11 weeks standard lead time. The splendid features of the product include board guide. The product is available in board edge, through hole, right angle configuration. It has a classic black colour. The product impact 76170, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. Moreover, the product is 0.053" (1.35mm). However, all is the Number of Positions Loaded. Moreover, it corresponds to 076170, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
076170yyyy Design 17/Jun/2016(PCN Design/Specification)
pdf icon
Various Devices Identification 20/Apr/2015(PCN Design/Specification)
pdf icon
Impact 100\u0000 Conn System Datasheet(Datasheets)
pdf icon
0761705036.pdf(3D Drawings)
pdf icon
761705036 Drawing(Product Drawings)
