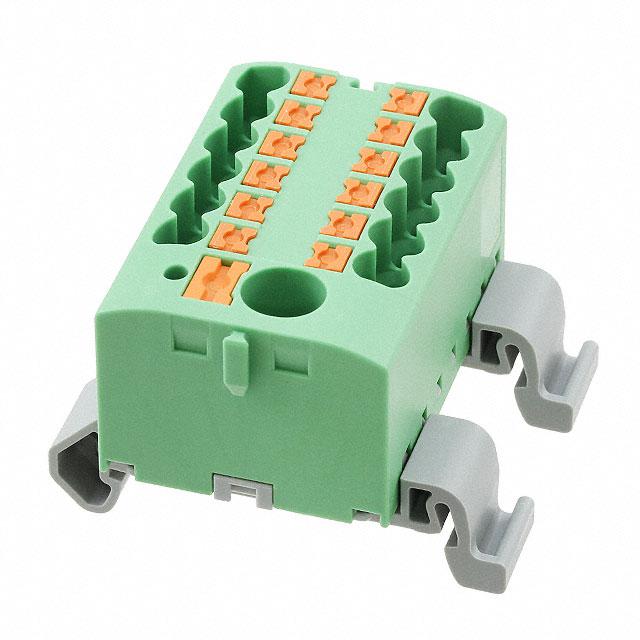

Phoenix Contact 3273228

3273228 Phoenix Contact
3273228
Phoenix Contact

Product Information

Current Rating:
24A
IP Rating:
IP20
Colour:
Green
Voltage Rating:
690 V
Housing Material:
Polyamide
Number of Ways:
13
Termination Method:
Push In
Cable CSA:
4mm²
Wire Size:
12 AWG
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Middle
Number of Positions:
13
Wire Gauge or Range - mm²:
-
Height (Max):
1.508" (38.30mm)
title:
3273228
REACH Status:
REACH Unaffected
Housing Color:
Green
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
12mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
24 A
Number of Levels:
1
Wire Gauge or Range - AWG:
8-20 AWG
Voltage - UL:
600 V
standardLeadTime:
8 Weeks
Terminal - Width:
40.6mm
Voltage - IEC:
500 V
Features:
Block of 6
Mounting Type:
DIN Rail
Series:
CLIPLINE PTFIX
Length:
1.799" (45.70mm)
Packaging:
Bulk
Current - UL:
5 A
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 3273228. The product has a current rating of 24a. It is IP rated with ip20. It has a decent green colour. Moreover, the product has a nominal 690 v voltage rating. The product also features robust polyamide housing material. It comprises 13 ways. It allows push in termination method. The cross section area of the cable includes 4mm². Concerning wire's size, it is 12 awg. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. It comes in middle configuration. The product carries possible position value of 13. Additionally, the 1.508" (38.30mm) is the maximum height of the product. In addition, it is reach unaffected. It has an integral green housing colour. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. It has a stripping length of 12mm. Its typical moisture sensitivity level is not applicable. An IEC current of 24 a. The product carries 1 levels. While 8-20 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It has a long 8 weeks standard lead time. The built-in terminal is 40.6mm wide. The nominal voltage of the product is 500 v. The splendid features of the product include block of 6. The product is available in din rail configuration. The product clipline ptfix, is a highly preferred choice for users. Its accurate length is 1.799" (45.70mm). In addition, bulk is the available packaging type of the product. The typical current includes 5 a. The product is designated with the ear99 code number.

pdf icon
Datasheet - 3273228(Technical Reference)
pdf icon
3273228(Datasheets)
pdf icon
Test Hole, Combination Key 05/Oct/2017(PCN Design/Specification)
