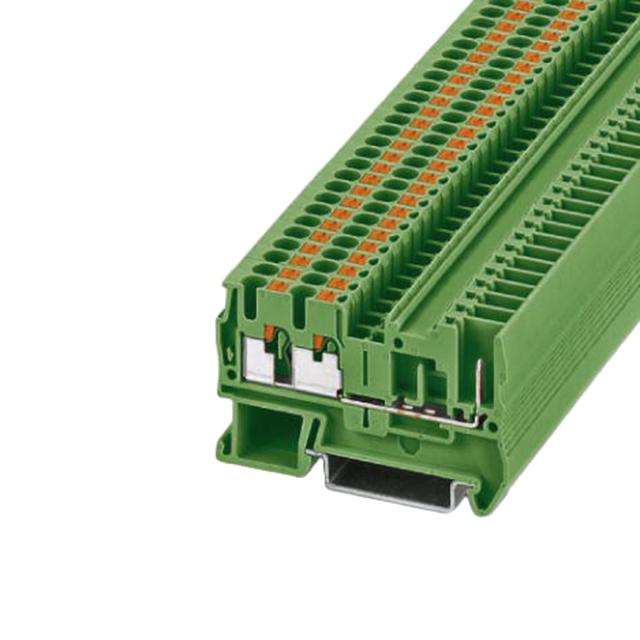

Phoenix Contact 3209636

3209636 Phoenix Contact
3209636
Phoenix Contact

Product Information

Number of Levels:
Single
Current Rating:
24A
Voltage Rating:
500 V
Series:
PT 2.5-TWIN/1P GN
Colour:
Green
Model Number:
PT 2,5-TWIN/1P GN
Termination Method:
Plug In
Cable CSA:
0.14 → 4mm²
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Plug Receptacles, Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Plug Connection
Number of Positions:
3
Wire Gauge or Range - mm²:
0.14-4mm²
Height (Max):
1.732" (44.00mm)
REACH Status:
REACH Unaffected
Housing Color:
Green
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
24 A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
600 V
standardLeadTime:
7 Weeks
Terminal - Width:
5.2mm
Voltage - IEC:
500 V
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE PT
Length:
2.382" (60.50mm)
Packaging:
Box
Current - UL:
20 A
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 3209636. The product carries single levels. The product has a current rating of 24a. Moreover, the product has a nominal 500 v voltage rating. The product pt 2.5-twin/1p gn, is a highly preferred choice for users. It has a decent green colour. It has a model number pt 2,5-twin/1p gn. It allows plug in termination method. The cross section area of the cable includes 0.14 → 4mm². It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has plug receptacles, push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. It comes in plug connection configuration. The product carries possible position value of 3. A 0.14-4mm² of wire gauge. Additionally, the 1.732" (44.00mm) is the maximum height of the product. In addition, it is reach unaffected. It has an integral green housing colour. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. It has a stripping length of 10mm. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 24 a. The product carries 1 levels. While 12-26 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It has a long 7 weeks standard lead time. The built-in terminal is 5.2mm wide. The nominal voltage of the product is 500 v. The product is available in din rail configuration. The product clipline pt, is a highly preferred choice for users. Its accurate length is 2.382" (60.50mm). In addition, box is the available packaging type of the product. The typical current includes 20 a. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
3209636(Datasheets)
pdf icon
3209636 Datasheet(Datasheets)
pdf icon
design change 1/19/2024(PCN Design/Specification)
