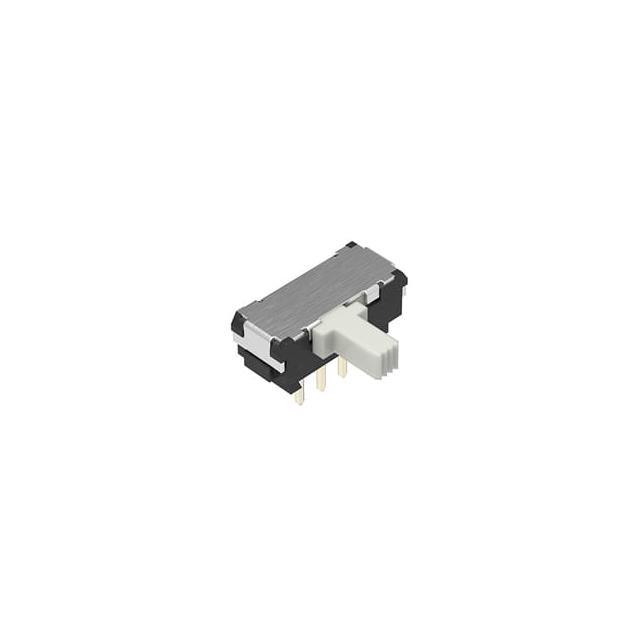

Through Hole Slide Switch Single Pole Double Throw (SPDT) Latching 100 mA Slide

SSSS916400 Through Hole Slide Switch Single Pole Double Throw (SPDT) Latching 100 mA Slide
SSSS916400
Alps Alpine

Product Information

Contact Resistance:
30 (Initial) mΩ, 80 (After Lifetime) mΩ
Dimensions:
11.5 x 9.7 x 5mm
Mounting Type:
Through Hole
Voltage Rating:
12V dc
Contact Current Rating:
100 mA
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +85°C
Length:
11.5mm
Contact Configuration:
SPDT
Width:
9.7mm
Depth:
5mm
Actuator Type:
Slide
Mechanical Life:
10000Cycles
Maximum Operating Temperature:
+85°C
Terminal Type:
Solder
Switch Operation:
Latching
Operating Force:
306gf
HTSUS:
8536.50.9050
RoHS Status:
ROHS3 Compliant
Electrical Life:
10,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
12 V
Operating Temperature:
-40°C ~ 85°C
Mechanical Life:
10,000 Cycles
Actuator Length:
4.00mm
Package:
Bulk
Switch Function:
On-On
Contact Finish:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT
standardLeadTime:
18 Weeks
Current Rating (Amps):
100mA (DC)
Contact Timing:
Non-Shorting (BBM)
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
SSSS9
Switch Travel:
2.00mm
Actuator Type:
Standard
Contact Material:
-
Actuator Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Through Hole Slide Switch Single Pole Double Throw (SPDT) Latching 100 mA Slide manufactured by Alps Alpine. The manufacturer part number is SSSS916400. It features a 30 (initial) mω, 80 (after lifetime) mω contact resistance. The given dimensions of the product include 11.5 x 9.7 x 5mm. The product is available in through hole configuration. Moreover, the product has a nominal 12v dc voltage rating. The rated contact current is 100 ma. Whereas, the minimum operating temperature of the product is -40°c. The product has -40 → +85°c of operating temperature range. Its accurate length is 11.5mm. The contact is equipped with spdt configuration. Furthermore, the product is 9.7mm wide. The product comes in 5mm depth. The product carries slide actuator. The product also provide mechanical stability with 10000cycles. It has a maximum operating temperature of +85°c. The terminal is a solder type. It provides latching switch operation. It has a 306gf of operating force. It is assigned with possible HTSUS value of 8536.50.9050. The product is rohs3 compliant. The product offers long-lasting services of 10,000 cycles. Moreover, it has pc pin terminal style. 12 v of DC voltage rating. The product has -40°c ~ 85°c operating temperature range. The product also provide mechanical stability with 10,000 cycles. The actuator is a 4.00mm long. It is shipped in bulk package . It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spdt circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 100ma (dc). Contact Timing Options: non-shorting (bbm). The product is available in through hole, right angle configuration. The product ssss9, is a highly preferred choice for users. The product has a switching travel of 2.00mm. The product carries standard actuator. The product is designated with the ear99 code number.
