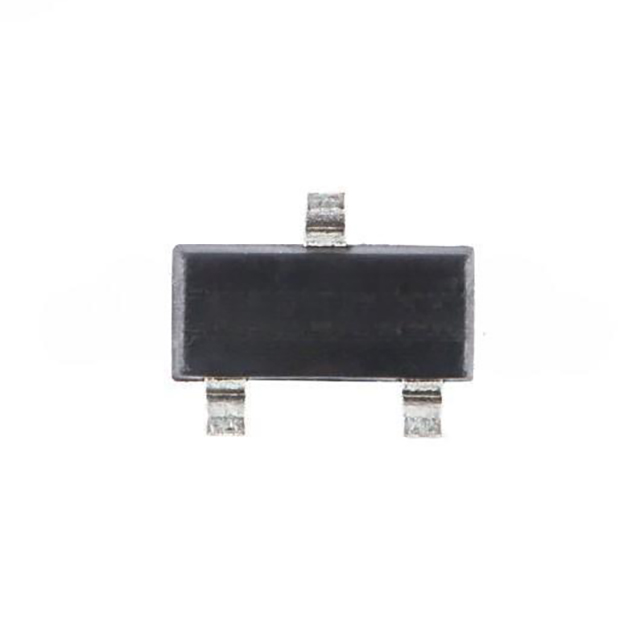

UMW IRLML5203

IRLML5203 UMW
UMW

Product Information

FET Feature:
-
HTSUS:
8541.21.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
150°C (TJ)
Package / Case:
TO-236-3, SC-59, SOT-23-3
Rds On (Max) @ Id, Vgs:
85mOhm @ 4.1A, 10V
title:
IRLML5203
Vgs(th) (Max) @ Id:
3V @ 250µA
REACH Status:
REACH Unaffected
FET Type:
P-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
Drain to Source Voltage (Vdss):
30 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
300mW (Ta)
Input Capacitance (Ciss) (Max) @ Vds:
700 pF @ 15 V
Mounting Type:
Surface Mount
Series:
UMW
Supplier Device Package:
SOT-23
Packaging:
Tape & Reel (TR)
Current - Continuous Drain (Id) @ 25°C:
3A (Ta)
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock

This is manufactured by UMW. The manufacturer part number is IRLML5203. It is assigned with possible HTSUS value of 8541.21.0095. The product is rohs3 compliant. The product has 150°c (tj) operating temperature range. Moreover, the product comes in to-236-3, sc-59, sot-23-3. It has a maximum Rds On and voltage of 85mohm @ 4.1a, 10v. The typical Vgs (th) (max) of the product is 3v @ 250µa. In addition, it is reach unaffected. It carries FET type p-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. The product has a 30 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 300mw (ta). The product's input capacitance at maximum includes 700 pf @ 15 v. The product is available in surface mount configuration. The product umw, is a highly preferred choice for users. sot-23 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The continuous current drain at 25°C is 3a (ta). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.

pdf icon
IRLML5203(Datasheets)
pdf icon
UTD RoHS3 SGS Package(Environmental Information)
pdf icon
UTD REACH SGS 223 Jan 2022 Package(Environmental Information)
