Diodes Incorporated DMP2104LP-7

DMP2104LP-7 Diodes Incorporated
DMP2104LP-7
DMP2104LP-7
Diodes Incorporated

Product Information

Manufacturer Standard Lead Time:
33 Weeks
Base Part Number:
DMP2104
Detailed Description:
P-Channel 20V 1.5A (Ta) 500mW (Ta) Surface Mount 3-DFN1411 (1.4x1.1)
Input Capacitance (Ciss) (Max) @ Vds:
320pF @ 16V
Mounting Type:
Surface Mount
Vgs(th) (Max) @ Id:
1V @ 250µA
Drain to Source Voltage (Vdss):
20V
Vgs (Max):
±12V
Drive Voltage (Max Rds On, Min Rds On):
1.8V, 4.5V
Rds On (Max) @ Id, Vgs:
150mOhm @ 950mA, 4.5V
Supplier Device Package:

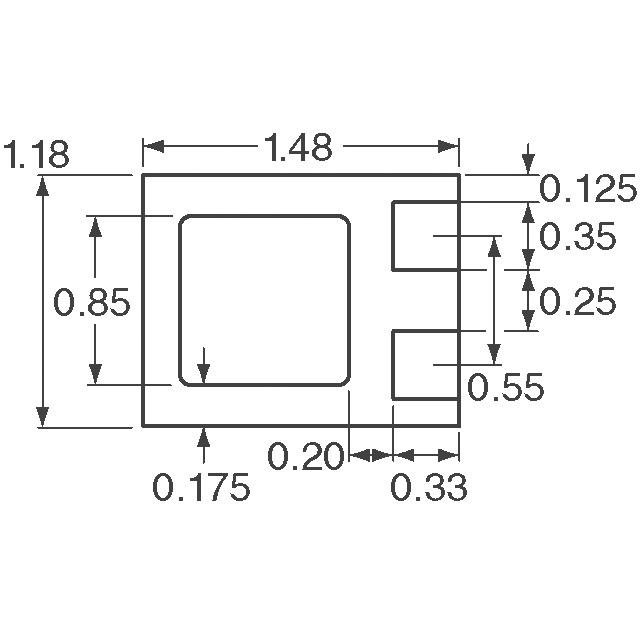

3-DFN1411 (1.4x1.1)
Packaging:
Cut Tape (CT)
Operating Temperature:
-55°C ~ 150°C (TJ)
FET Type:
P-Channel
Customer Reference:
Package / Case:
3-XDFN
Power Dissipation (Max):
500mW (Ta)
Current - Continuous Drain (Id) @ 25°C:
1.5A (Ta)
Technology:
MOSFET (Metal Oxide)
Manufacturer:
Diodes Incorporated
Checking for live stock

This is manufactured by Diodes Incorporated. The manufacturer part number is DMP2104LP-7. It has typical 33 weeks of manufacturer standard lead time. Base Part Number: dmp2104. It features p-channel 20v 1.5a (ta) 500mw (ta) surface mount 3-dfn1411 (1.4x1.1). The product's input capacitance at maximum includes 320pf @ 16v. The product is available in surface mount configuration. The typical Vgs (th) (max) of the product is 1v @ 250µa. The product has a 20v drain to source voltage. The maximum Vgs rate is ±12v. The drive voltage (maximum and minimum Rds On) of the product includes 1.8v, 4.5v. It has a maximum Rds On and voltage of 150mohm @ 950ma, 4.5v. 3-dfn1411 (1.4x1.1) is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. The product has -55°c ~ 150°c (tj) operating temperature range. It carries FET type p-channel. Moreover, the product comes in 3-xdfn. The product carries maximum power dissipation 500mw (ta). The continuous current drain at 25°C is 1.5a (ta). This product use mosfet (metal oxide) technology. The diodes incorporated's product offers user-desired applications.

pdf icon
DMP2104LP(Datasheets)
pdf icon
Bond Wire 11/Nov/2011(PCN Design/Specification)
pdf icon
Diodes RoHS 3 Cert(Environmental Information)
