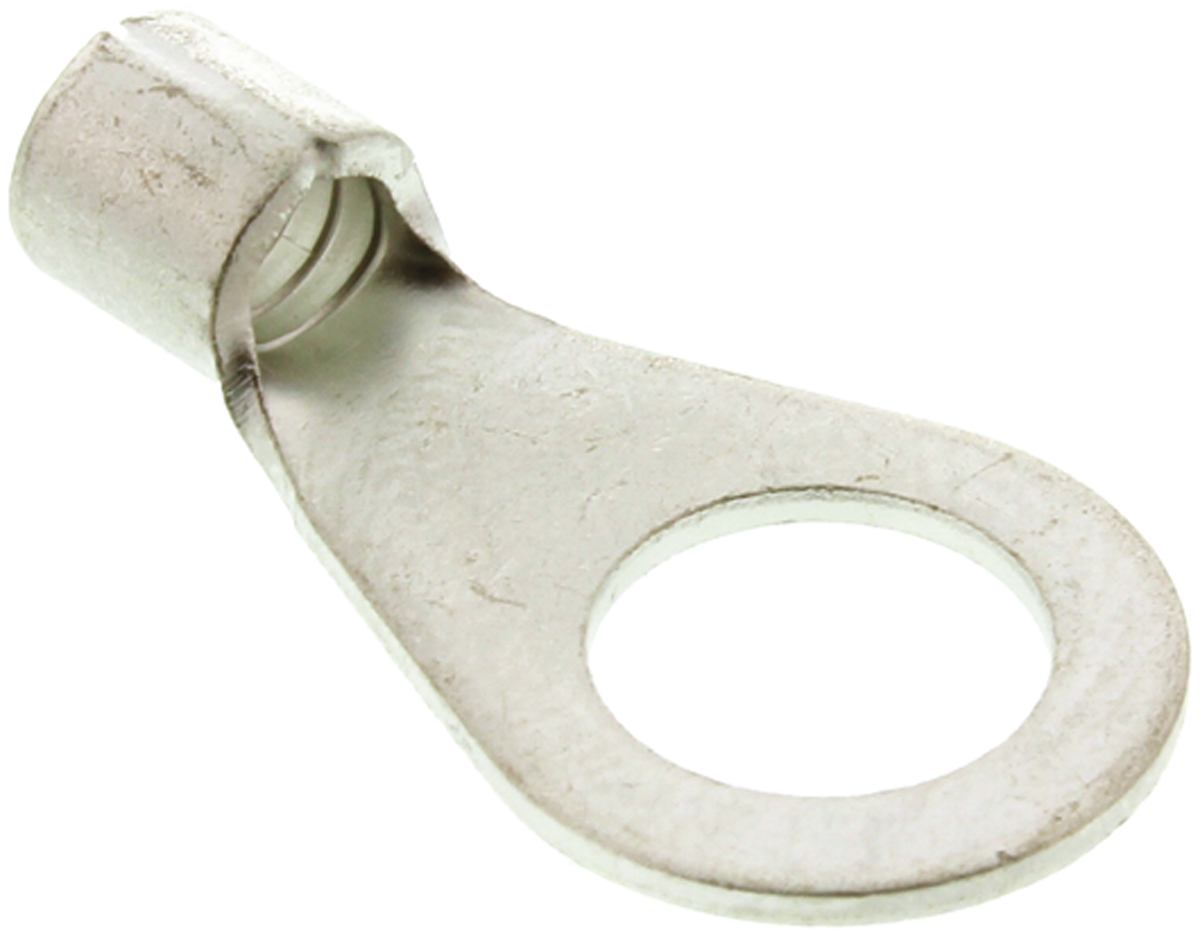

RS Pro Uninsulated Crimp Ring Terminal, #10 Stud Size, 1.5mm² to 2.5mm², 16AWG to 14AWG

809-2246 RS Pro Uninsulated Crimp Ring Terminal, #10 Stud Size, 1.5mm² to 2.5mm², 16AWG to 14AWG
RS Pro

Product Information

Maximum Wire Size mm²:
2.5mm²
Minimum Wire Size AWG:
16AWG
Thickness:
0.8mm
Stud Size:
#10
Inner Ring Diameter:
5.3mm
Outer Ring Diameter:
10mm
Contact Plating:
Tin
Overall Length:
19mm
Insulation:
Uninsulated
Maximum Wire Size AWG:
14AWG
Minimum Wire Size mm²:
1.5mm²
Maximum Operating Temperature:
+150°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is Uninsulated Crimp Ring Terminal #10 Stud Size 1.5mm² to 2.5mm² 16AWG to 14AWG manufactured by RS Pro. The manufacturer part number is 809-2246. The wire has a maximum size of 2.5mm². While the minimum wire size AWG includes 16awg. It is 0.8mm thick. It has a standard #10 size stud . Moreover, the inner ring is about 5.3mm in diameter . In addition, its outlet ring diameter is about 10mm . The high-quality tin is used as contact plating material. It has an overall length of 19mm. Insulation Option: uninsulated. Its maximum wires size includes 14awg. On the other hand, the wire has 1.5mm² of minimum size. It has a maximum operating temperature of +150°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy copper materials.

pdf icon
RS Pro Datasheet(Technical Reference)
