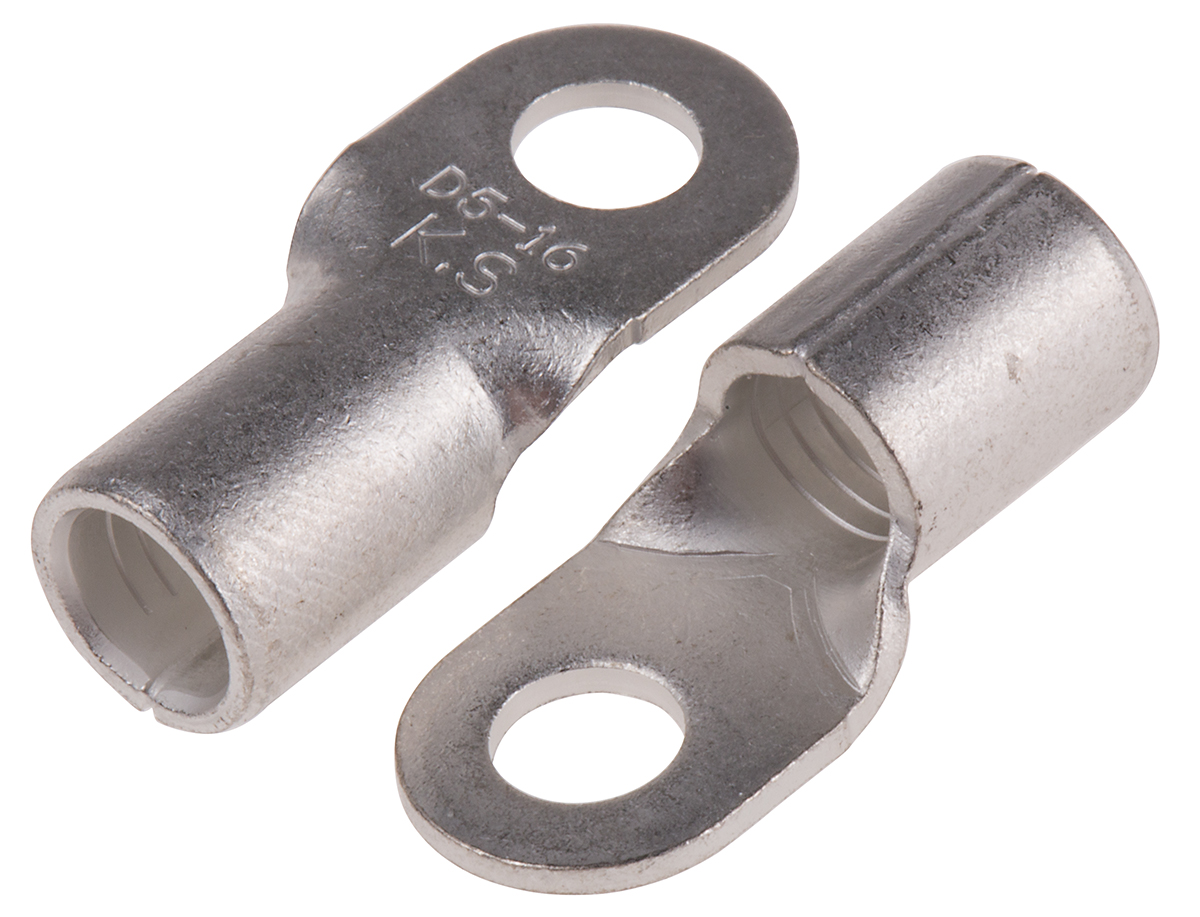

RS Pro Uninsulated Crimp Ring Terminal, #10 Stud Size, 16mm² to 16mm², 6AWG to 8AWG

809-2284 RS Pro Uninsulated Crimp Ring Terminal, #10 Stud Size, 16mm² to 16mm², 6AWG to 8AWG
RS Pro

Product Information

Maximum Wire Size mm²:
16mm²
Minimum Wire Size AWG:
6AWG
Thickness:
1.2mm
Stud Size:
#10
Inner Ring Diameter:
5.3mm
Outer Ring Diameter:
11mm
Contact Plating:
Tin
Overall Length:
25.5mm
Insulation:
Uninsulated
Maximum Wire Size AWG:
6AWG
Minimum Wire Size mm²:
16mm²
Maximum Operating Temperature:
+150°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is Uninsulated Crimp Ring Terminal #10 Stud Size 16mm² to 16mm² 6AWG to 8AWG manufactured by RS Pro. The manufacturer part number is 809-2284. The wire has a maximum size of 16mm². While the minimum wire size AWG includes 6awg. It is 1.2mm thick. It has a standard #10 size stud . Moreover, the inner ring is about 5.3mm in diameter . In addition, its outlet ring diameter is about 11mm . The high-quality tin is used as contact plating material. It has an overall length of 25.5mm. Insulation Option: uninsulated. Its maximum wires size includes 6awg. On the other hand, the wire has 16mm² of minimum size. It has a maximum operating temperature of +150°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy copper materials.

pdf icon
RS Pro Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 809-2284 on website for other similar products.
We accept all major payment methods for all products including ET16834399. Please check your shopping cart at the time of order.
You can order RS Pro brand products with 809-2284 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ring Terminals category are shipped in lowest possible time.
You will get a confirmation email regarding your order of RS Pro Uninsulated Crimp Ring Terminal, #10 Stud Size, 16mm² to 16mm², 6AWG to 8AWG. You can also check on our website or by contacting our customer support team for further order details on RS Pro Uninsulated Crimp Ring Terminal, #10 Stud Size, 16mm² to 16mm², 6AWG to 8AWG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16834399 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "RS Pro" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16834399.
Yes. We ship 809-2284 Internationally to many countries around the world.
