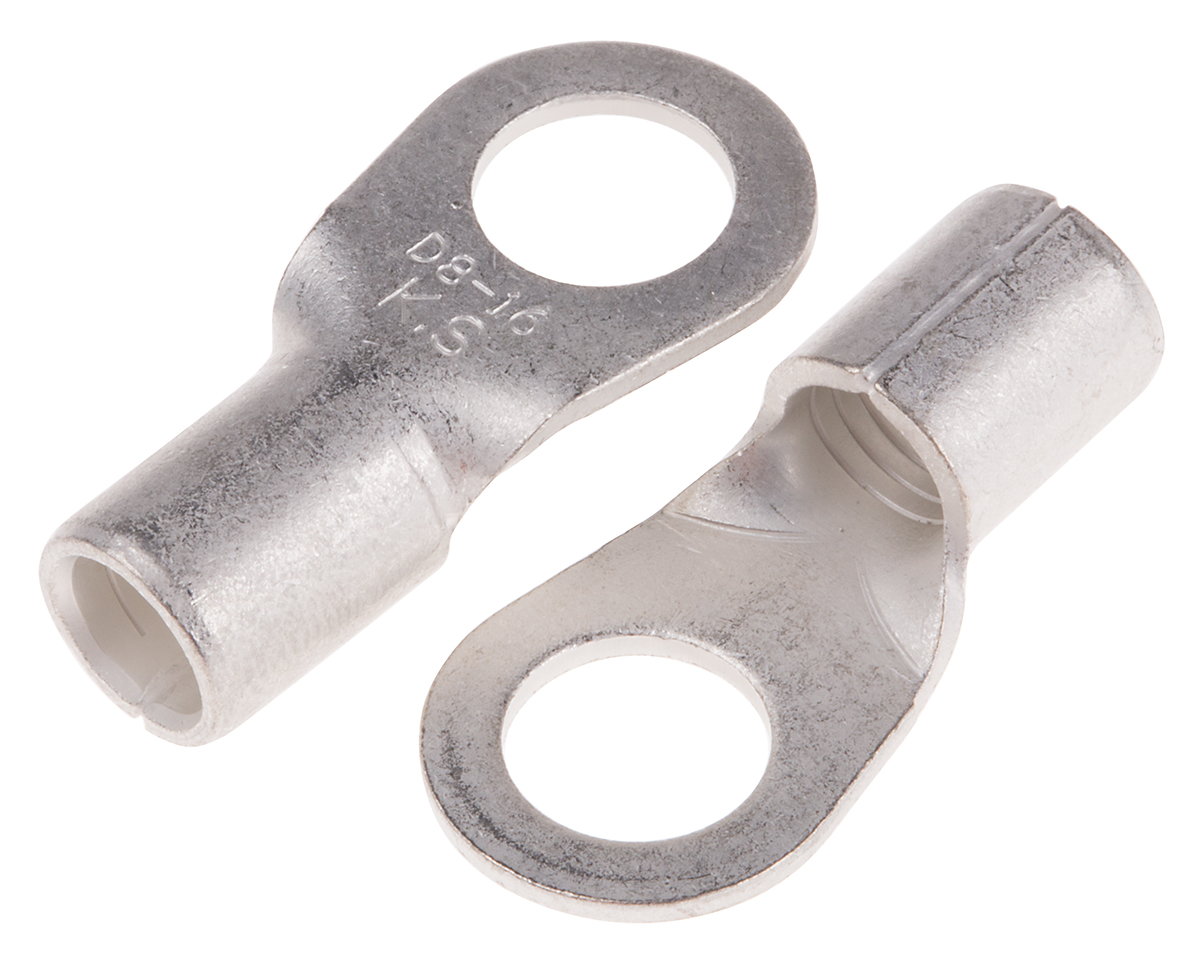

RS Pro Uninsulated Crimp Ring Terminal, 8.4mm Stud Size, 16mm² to 16mm², 6AWG to 6AWG

809-2296 RS Pro Uninsulated Crimp Ring Terminal, 8.4mm Stud Size, 16mm² to 16mm², 6AWG to 6AWG
RS Pro

Product Information

Maximum Wire Size mm²:
16mm²
Minimum Wire Size AWG:
6AWG
Thickness:
1.2mm
Stud Size:
8.4mm
Inner Ring Diameter:
8.4mm
Outer Ring Diameter:
14mm
Contact Plating:
Tin
Overall Length:
29mm
Insulation:
Uninsulated
Maximum Wire Size AWG:
6AWG
Minimum Wire Size mm²:
16mm²
Maximum Operating Temperature:
+150°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is Uninsulated Crimp Ring Terminal 8.4mm Stud Size 16mm² to 16mm² 6AWG to 6AWG manufactured by RS Pro. The manufacturer part number is 809-2296. The wire has a maximum size of 16mm². While the minimum wire size AWG includes 6awg. It is 1.2mm thick. It has a standard 8.4mm size stud . Moreover, the inner ring is about 8.4mm in diameter . In addition, its outlet ring diameter is about 14mm . The high-quality tin is used as contact plating material. It has an overall length of 29mm. Insulation Option: uninsulated. Its maximum wires size includes 6awg. On the other hand, the wire has 16mm² of minimum size. It has a maximum operating temperature of +150°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy copper materials.

pdf icon
RS Pro Datasheet(Technical Reference)
