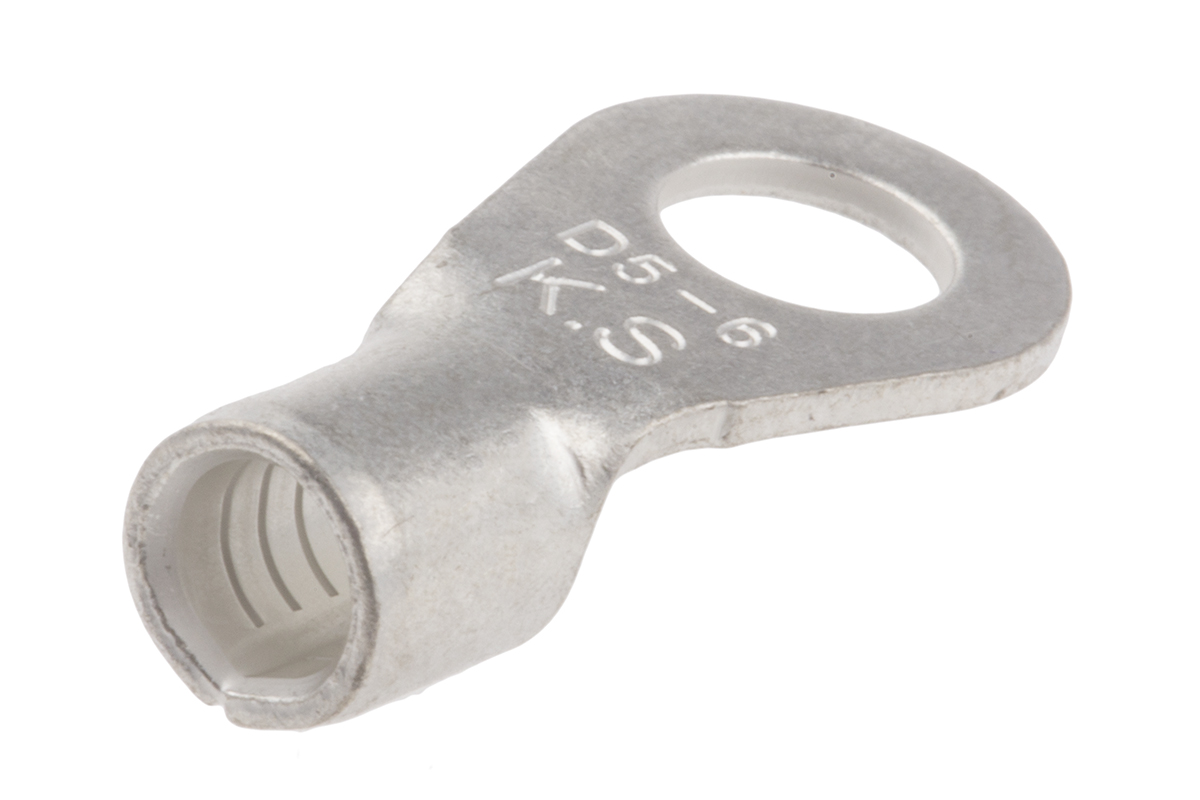

RS Pro Uninsulated Crimp Ring Terminal, #10 Stud Size, 2.5mm² to 6mm², 12AWG to 10AWG

809-2256 RS Pro Uninsulated Crimp Ring Terminal, #10 Stud Size, 2.5mm² to 6mm², 12AWG to 10AWG
809-2256
RS Pro

Product Information

Maximum Wire Size mm²:
6mm²
Minimum Wire Size AWG:
12AWG
Thickness:
1mm
Stud Size:
#10
Inner Ring Diameter:
5.3mm
Outer Ring Diameter:
10mm
Contact Plating:
Tin
Overall Length:
20mm
Insulation:
Uninsulated
Maximum Wire Size AWG:
10AWG
Minimum Wire Size mm²:
2.5mm²
Maximum Operating Temperature:
+150°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is Uninsulated Crimp Ring Terminal #10 Stud Size 2.5mm² to 6mm² 12AWG to 10AWG manufactured by RS Pro. The manufacturer part number is 809-2256. The wire has a maximum size of 6mm². While the minimum wire size AWG includes 12awg. It is 1mm thick. It has a standard #10 size stud . Moreover, the inner ring is about 5.3mm in diameter . In addition, its outlet ring diameter is about 10mm . The high-quality tin is used as contact plating material. It has an overall length of 20mm. Insulation Option: uninsulated. Its maximum wires size includes 10awg. On the other hand, the wire has 2.5mm² of minimum size. It has a maximum operating temperature of +150°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy copper materials.

pdf icon
RS Pro Datasheet(Technical Reference)
