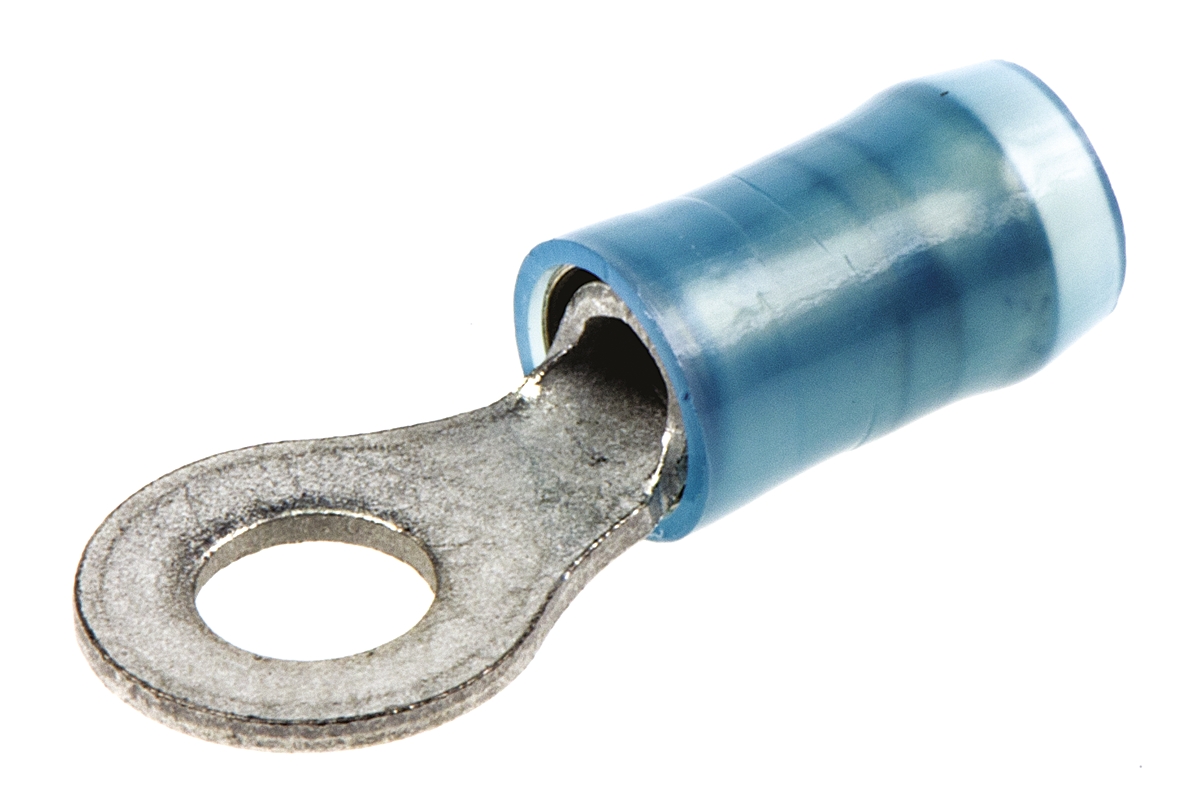

TE Connectivity PIDG Series Insulated Tin Plated Crimp Ring Terminal, M4 Stud Size, 1mm² to 2.6mm², 16AWG to 14AWG

Enrgtech Part No: ET14025485
|
Manufacturer Part No:
320560
|
Manufacturer: TE Connectivity

320560 TE Connectivity PIDG Series Insulated Tin Plated Crimp Ring Terminal, M4 Stud Size, 1mm² to 2.6mm², 16AWG to 14AWG

Product Information

Maximum Wire Size mm²:

2.6mm²

Series:

PIDG

Colour:

Blue

Minimum Wire Size AWG:

16AWG

Stud Size:

Outer Ring Diameter:

8.71mm

Inner Ring Diameter:

4.17mm

Insulation Material:

Nylon

Contact Plating:

Tin

Overall Length:

21.82mm

Insulation:

Insulated

Maximum Wire Size AWG:

14AWG

Checking for live stock

This is PIDG Series Insulated Tin Plated Crimp Ring Terminal M4 Stud Size 1mm² to 2.6mm² 16AWG to 14AWG manufactured by TE Connectivity. The manufacturer part number is 320560. The wire has a maximum size of 2.6mm². The product pidg, is a highly preferred choice for users. It has a decent blue colour. While the minimum wire size AWG includes 16awg. It has a standard m4 size stud . In addition, its outlet ring diameter is about 8.71mm . Moreover, the inner ring is about 4.17mm in diameter . It has a robust nylon insulation material. The high-quality tin is used as contact plating material. It has an overall length of 21.82mm. Insulation Option: insulated. Its maximum wires size includes 14awg. On the other hand, the wire has 1mm² of minimum size. The product is made from sturdy copper materials.

320560 Drawing(Technical Reference)

320560.datasheet(Technical Reference)

PIDG Quick Reference Guide(Technical Reference)
