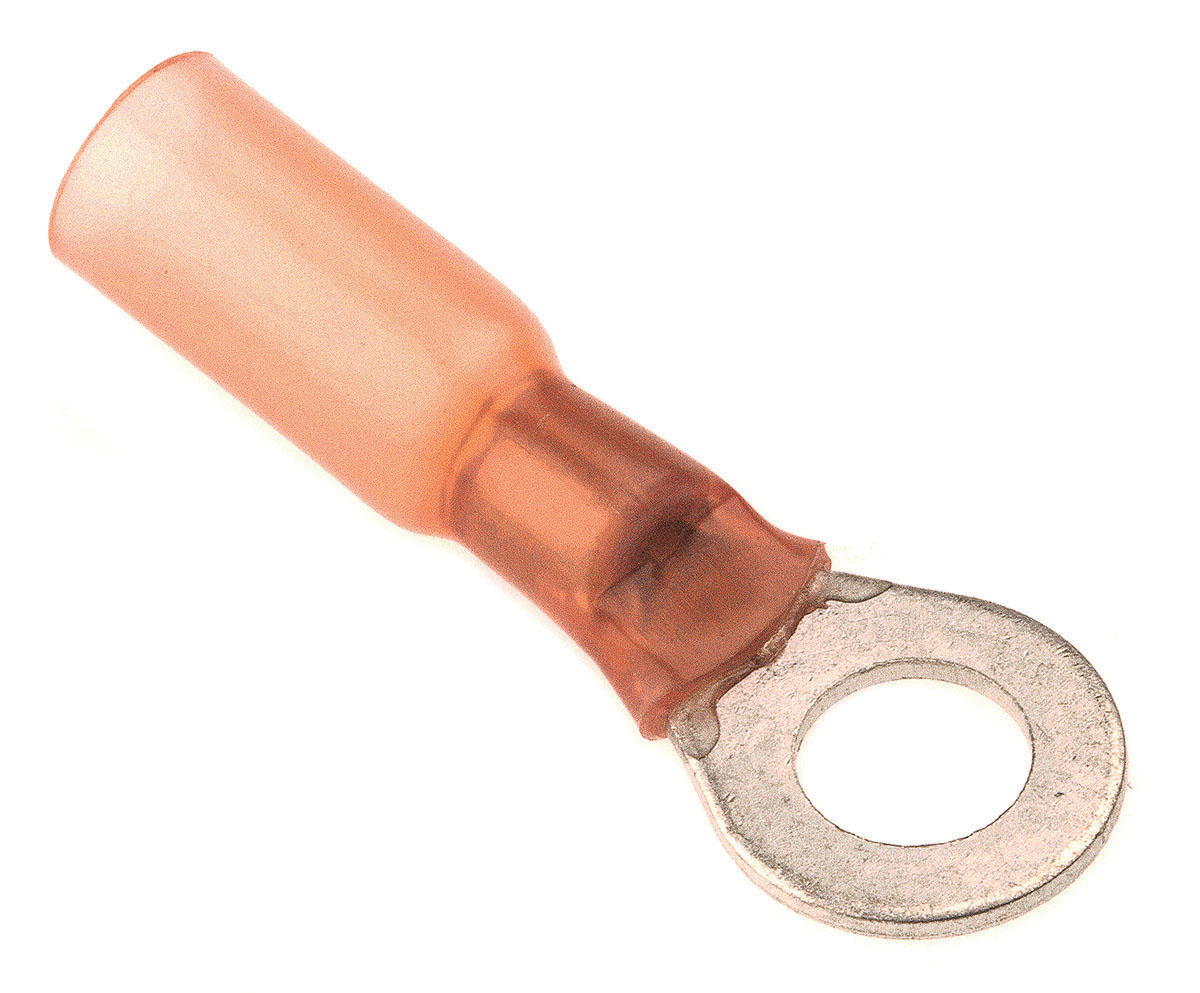

TE Connectivity DuraSeal Series Insulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 0.5mm² to 1mm², 22AWG

Enrgtech Part No: ET13972975
|
Manufacturer Part No:
DR-2-50
|
Manufacturer: TE Connectivity

DR-2-50 TE Connectivity DuraSeal Series Insulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 0.5mm² to 1mm², 22AWG

Product Information

Maximum Wire Size mm²:

1mm²

Series:

DuraSeal

Colour:

Red

Minimum Wire Size AWG:

22AWG

Thickness:

1.4mm

Stud Size:

Outer Ring Diameter:

10mm

Inner Ring Diameter:

5.3mm

Insulation Material:

Nylon

Contact Plating:

Tin

Overall Length:

34mm

Insulation:

Insulated

Checking for live stock

This is DuraSeal Series Insulated Tin Plated Crimp Ring Terminal M5 Stud Size 0.5mm² to 1mm² 22AWG manufactured by TE Connectivity. The manufacturer part number is DR-2-50. The wire has a maximum size of 1mm². The product duraseal, is a highly preferred choice for users. It has a decent red colour. While the minimum wire size AWG includes 22awg. It is 1.4mm thick. It has a standard m5 size stud . In addition, its outlet ring diameter is about 10mm . Moreover, the inner ring is about 5.3mm in diameter . It has a robust nylon insulation material. The high-quality tin is used as contact plating material. It has an overall length of 34mm. Insulation Option: insulated. Its maximum wires size includes 18awg. On the other hand, the wire has 0.5mm² of minimum size. The product is made from sturdy copper alloy materials.

Product Drawing(Technical Reference)

Heat Shrinkable Environmentally Sealed,Nylon Crimp Terminals & Disconnects Product Features(Technical Reference)

DuraSeal Heatshrinkable Product Data Sheet(Technical Reference)
