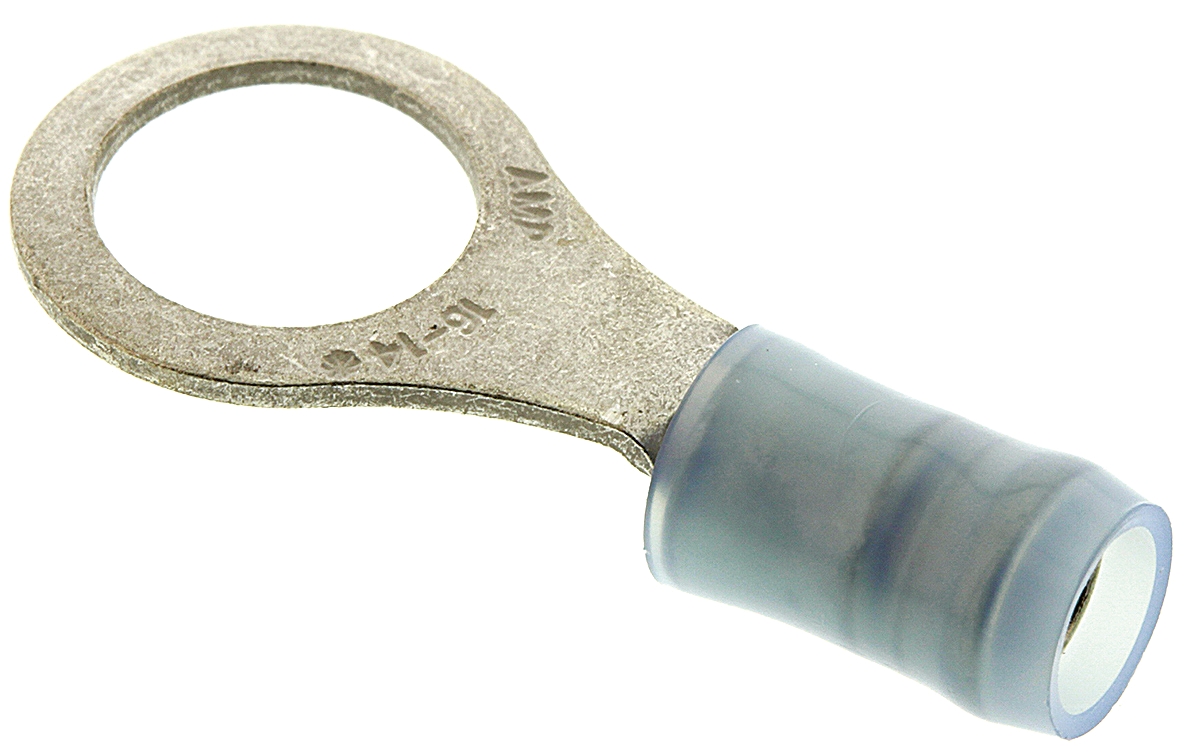

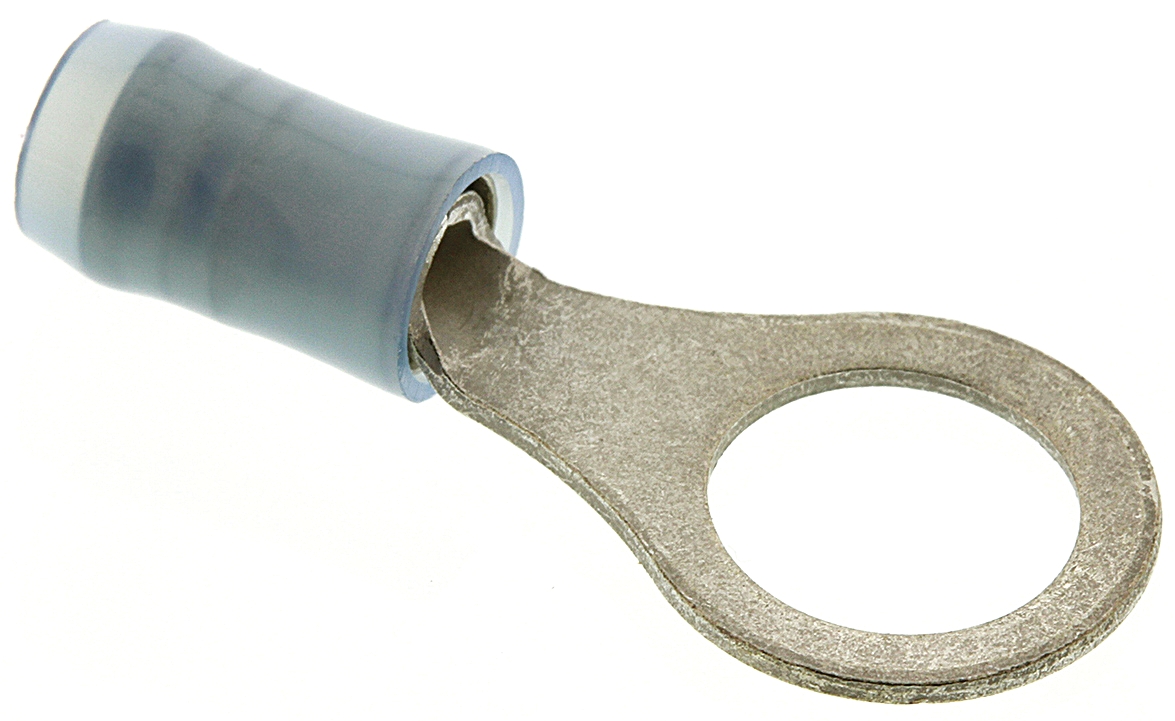

TE Connectivity PIDG Series Insulated Tin Plated Crimp Ring Terminal, M8 Stud Size, 1.25mm² to 2mm², 16AWG to 14AWG

320575 TE Connectivity PIDG Series Insulated Tin Plated Crimp Ring Terminal, M8 Stud Size, 1.25mm² to 2mm², 16AWG to 14AWG
320575
TE Connectivity

Product Information

Maximum Wire Size mm²:
2mm²
Series:
PIDG
Colour:
Blue
Minimum Wire Size AWG:
16AWG
Stud Size:
M8
Outer Ring Diameter:
11.91mm
Inner Ring Diameter:
8.33mm
Insulation Material:
Nylon
Contact Plating:
Tin
Overall Length:
27.38mm
Insulation:
Insulated
Maximum Wire Size AWG:
14AWG
Minimum Wire Size mm²:
1.25mm²
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is PIDG Series Insulated Tin Plated Crimp Ring Terminal M8 Stud Size 1.25mm² to 2mm² 16AWG to 14AWG manufactured by TE Connectivity. The manufacturer part number is 320575. The wire has a maximum size of 2mm². The product pidg, is a highly preferred choice for users. It has a decent blue colour. While the minimum wire size AWG includes 16awg. It has a standard m8 size stud . In addition, its outlet ring diameter is about 11.91mm . Moreover, the inner ring is about 8.33mm in diameter . It has a robust nylon insulation material. The high-quality tin is used as contact plating material. It has an overall length of 27.38mm. Insulation Option: insulated. Its maximum wires size includes 14awg. On the other hand, the wire has 1.25mm² of minimum size. The product is made from sturdy copper materials.
