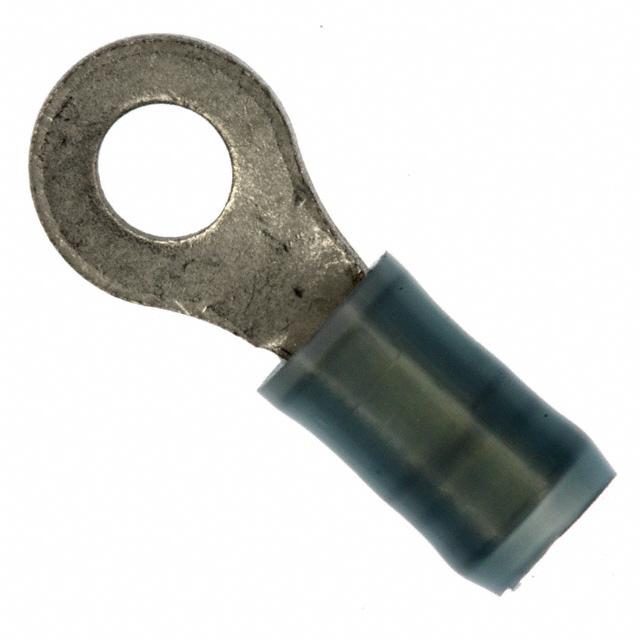

TE Connectivity AMP Connectors 320560

320560 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Thickness:
0.031" (0.79mm)
Material - Insulation:
Polyamide (PA), Nylon
Length - Overall:
0.859" (21.82mm)
REACH Status:
Vendor Undefined
edacadModel:
320560 Models
Insulation Diameter:
0.105" ~ 0.150" (2.67mm ~ 3.81mm)
edacadModelUrl:
/en/models/299296
Terminal Type:
Circular
Package:
Bulk
Wire Gauge:
14-16 AWG
Width - Outer Edges:
0.343" (8.71mm)
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Crimp
standardLeadTime:
47 Weeks
Stud/Tab Size:
8 Stud
Features:
Serrated Termination
Mounting Type:
Free Hanging (In-Line)
Color:
Blue
Series:
PIDG
Insulation:
Insulated
Contact Material:
Copper
Base Product Number:
3205
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 320560. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. It is 0.031" (0.79mm) thick. It is designed from highly reliable polyamide (pa), nylon insulating material. The product has an integral 0.859" (21.82mm) overall length. In addition, it is vendor undefined. The product's insulation diameter includes 0.105" ~ 0.150" (2.67mm ~ 3.81mm). The terminal is a circular type. It is shipped in bulk package . Moreover, the product has a wire gauge of 14-16 awg. Its outer edges are 0.343" (8.71mm) wide. Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features crimp termination style. It has a long 47 weeks standard lead time. The product consists of 8 stud. The splendid features of the product include serrated termination. The product is available in free hanging (in-line) configuration. It has a classic blue colour. The product pidg, is a highly preferred choice for users. Insulation Option: insulated. The product is made from sturdy copper materials. Moreover, it corresponds to 3205, a base product number of the product. The product is designated with the ear99 code number.
