Fire Behaviour:
Flame resistance according to UL, IEC 60332-1-2, Low Smoke Zero Halogen (LSZH), IEC 60332-1
Conductor Material:
Tin Copper Wire
Cable Type:
Flat
Number of Conductors:
14
Core Strands:
7
Screened/Unscreened:
Unscreened
American Wire Gauge:
28AWG
Standards/Approvals:
ISO9001, IEC60332-1-2, IEC60332-1, REACH, BS4808, VD0281-5, DEF STAN, VD2050, DEF STAN 61-12 Part29/1, TS 9760 HD 21.5.S3, RoHS, DIN 47100, UL1581 VW-1, CENELEC HD21.5, IEC 60227-5, BS EN13062, Mil Spec, IEC 60228 Css 5, VD0295 part 5, BASEC, DEF STAN 61-12 Part 6, BS4109, UL, HAR
Voltage:
300 V
Minimum Operating Temperature:
-20°C
Pitch:
1.27mm
Hi-Flex:
Yes

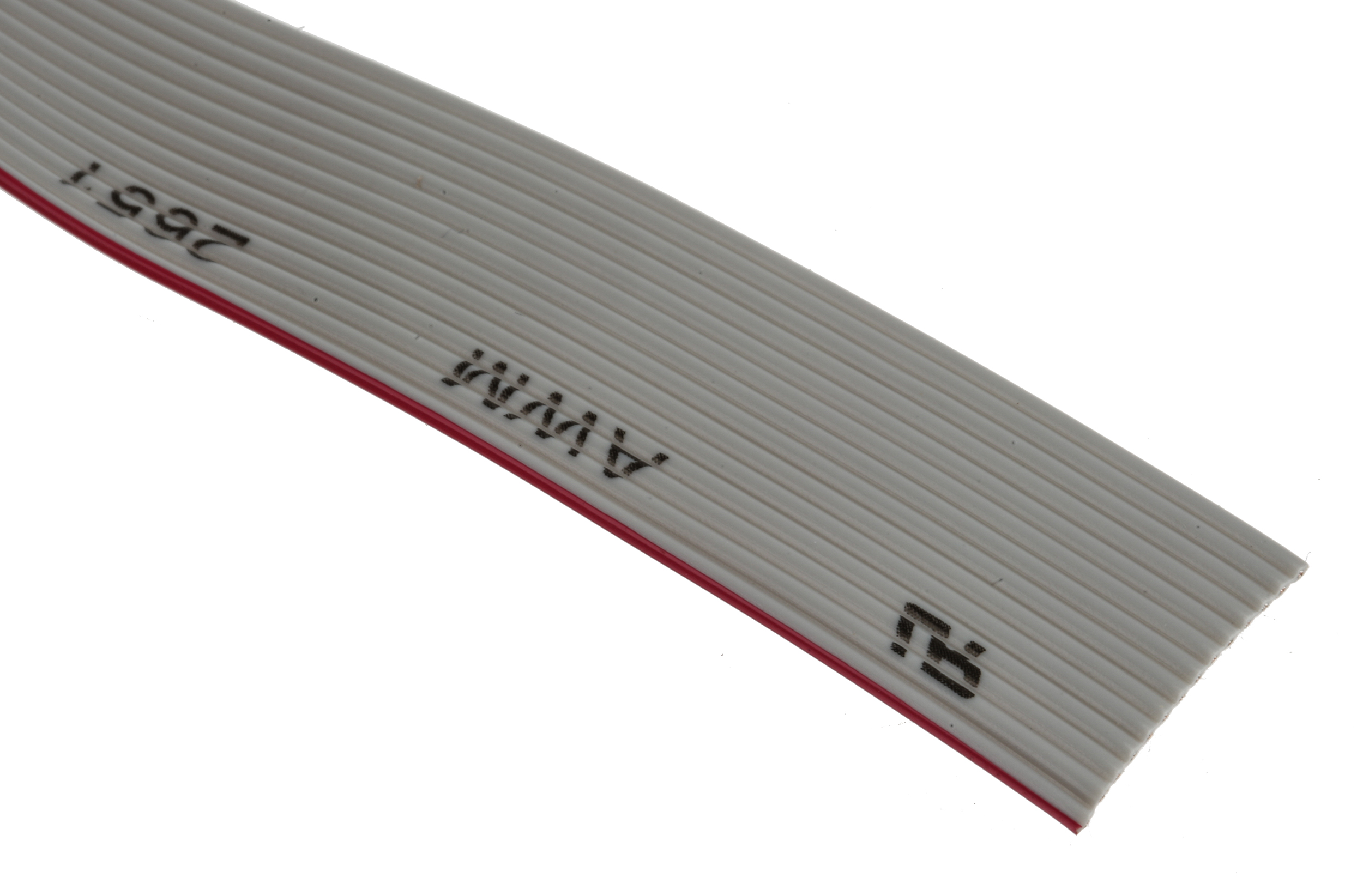

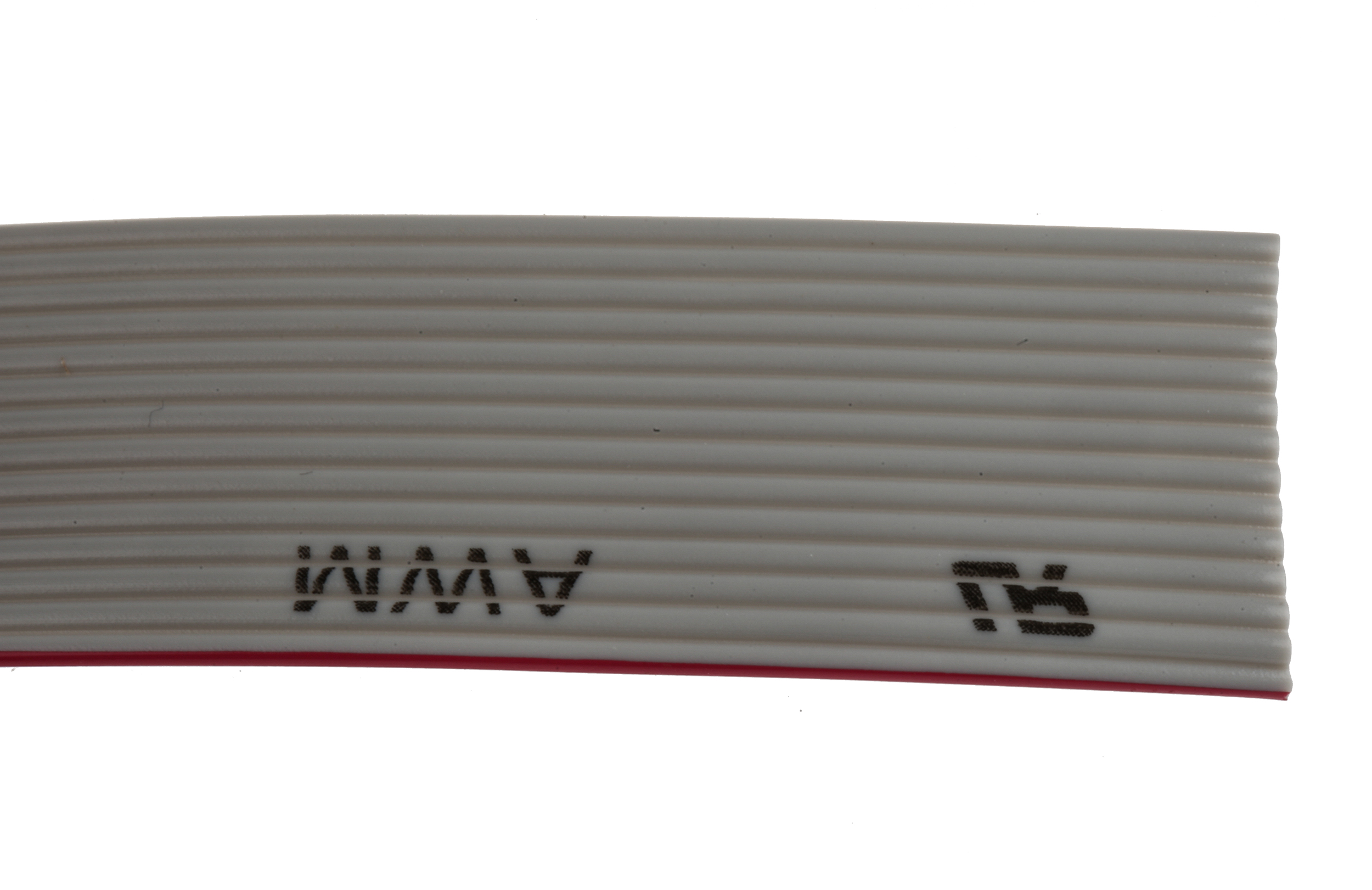

Product Type:
Ribbon Cable
Maximum Operating Temperature:
105°C
Cable Length:
30m
